Time Electronic 1071 Decade Box, Decade Box Type Capacitance

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details

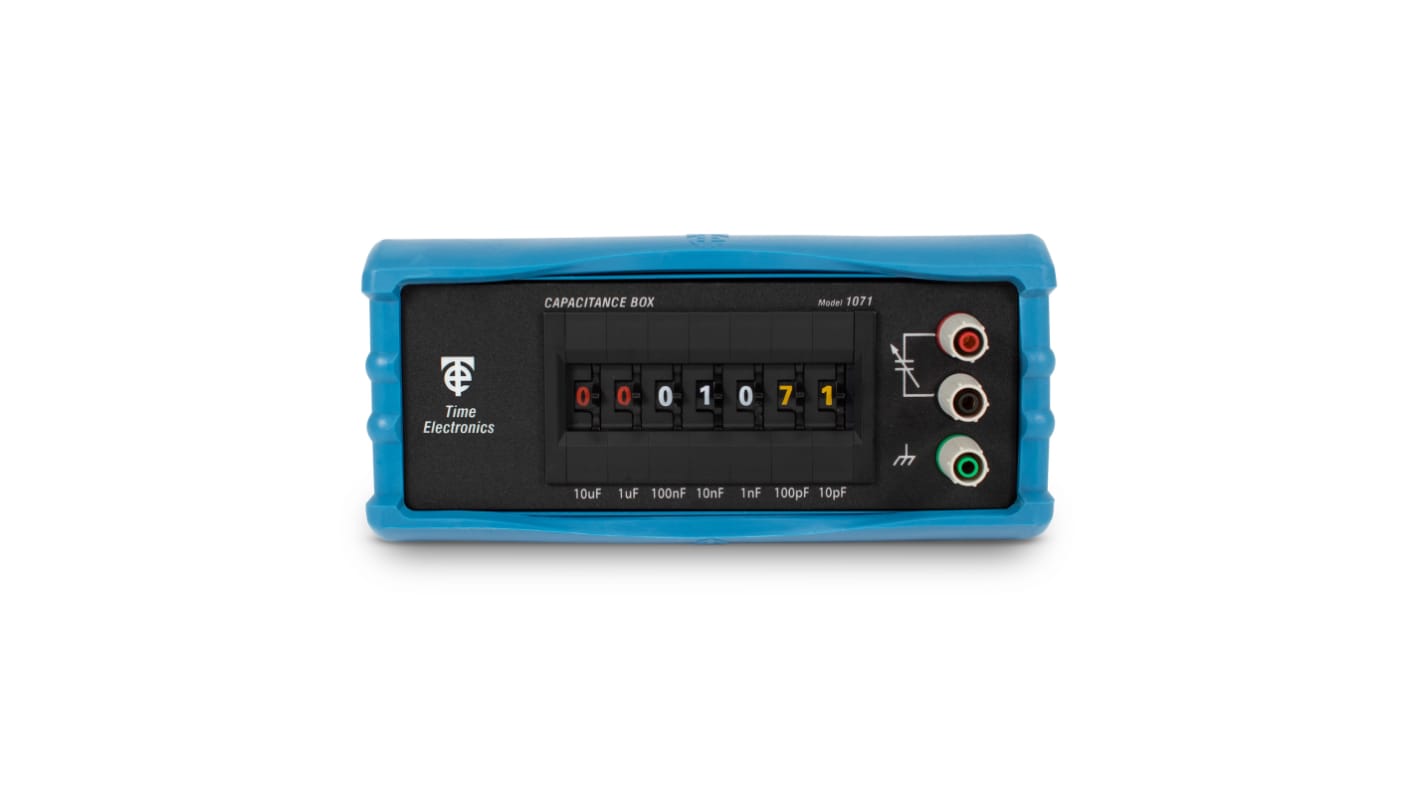

1071 7 Decade Capacitance Box

Many applications in industry and education. Connection by 4mm binding posts and a third terminal is provided to enable the case to be earthed or connected to either output. High stability capacitors used throughout.

10pF to 100uF
In-line reading with colour coded digits
Bi-polar working
Compact 110 x 75 x 200mm

Specifications
Attribute Value
Decade Box Type Capacitance
Capacitance Resolution 10pF
Best Capacitance Accuracy ±1%
Residual Capacitance 55pF
Temperature Coefficient ±300ppm/°C
Dimensions 110 x 200 x 75mm
Weight 600g
Height 75mm
Length 110mm
Width 200mm
Maximum Capacitance 100µF
Minimum Capacitance 10pF
2 In stock - FREE next working day delivery available
Price Each
£ 520.20
(exc. VAT)
£ 624.24
(inc. VAT)
Units
Per unit
1 +
£520.20
