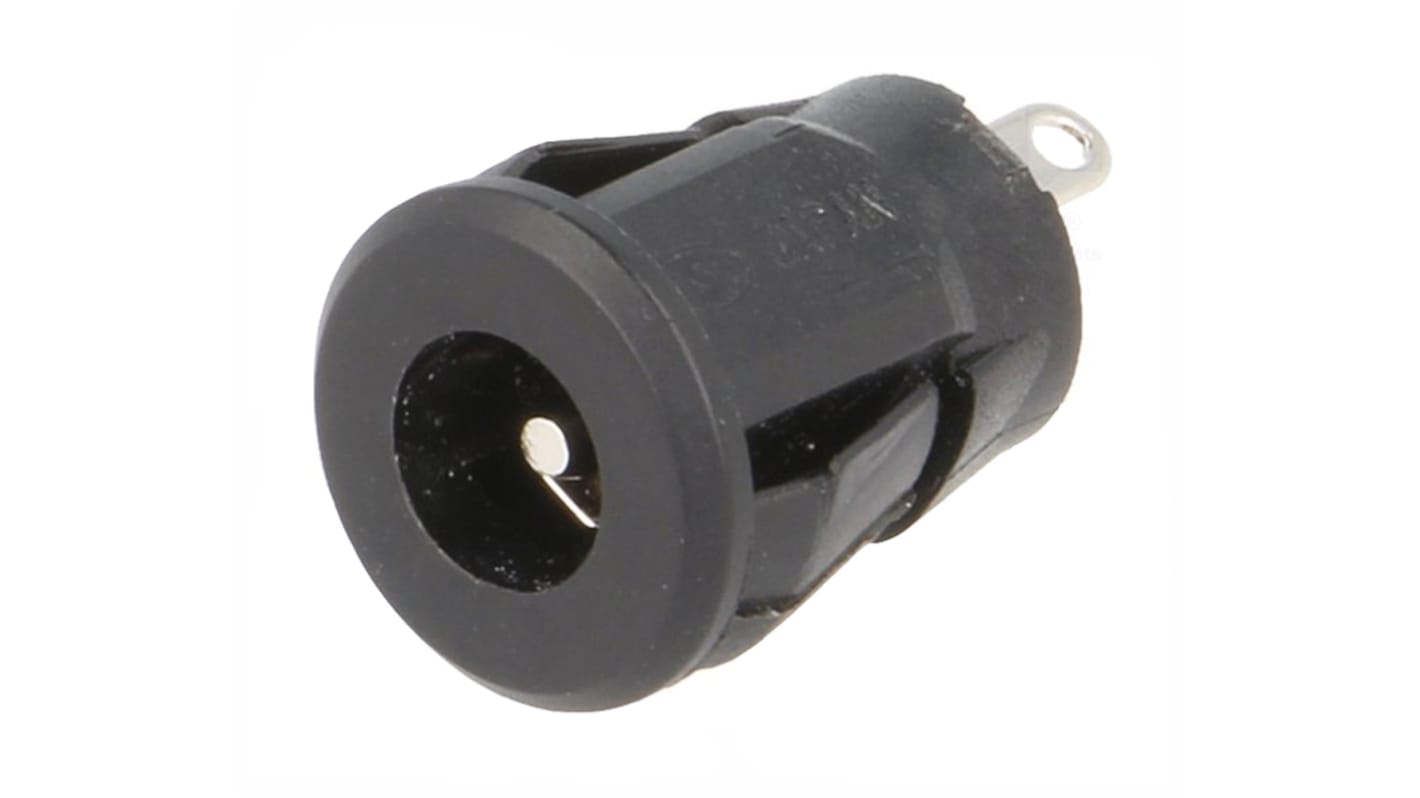

Lumberg, 1610 DC Socket Rated At 500.0mA, 12.0 V, Snap-In, length 14.4mm, Nickel
- RS Stock No.:
- 124-9881
- Mfr. Part No.:
- 1610 02
- Brand:
- Lumberg
Discontinued
- RS Stock No.:
- 124-9881
- Mfr. Part No.:
- 1610 02
- Brand:
- Lumberg
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lumberg | |
| DC Power Connector Type | DC Socket | |
| Current Rating | 500.0mA | |
| Inner Diameter | 1.95mm | |
| Body Orientation | Straight | |
| Outer Diameter | 12.0mm | |
| Voltage Rating | 12.0 V | |
| Length | 14.4mm | |
| Width | 11.0mm | |
| Mounting Type | Snap-In | |
| Pin Diameter | 2.1mm | |
| Contact Plating | Nickel | |
| Contact Material | CuSn, CuZn | |
| Series | 1610 | |
| Select all | ||
|---|---|---|
Brand Lumberg | ||
DC Power Connector Type DC Socket | ||
Current Rating 500.0mA | ||
Inner Diameter 1.95mm | ||
Body Orientation Straight | ||
Outer Diameter 12.0mm | ||
Voltage Rating 12.0 V | ||
Length 14.4mm | ||
Width 11.0mm | ||
Mounting Type Snap-In | ||
Pin Diameter 2.1mm | ||
Contact Plating Nickel | ||
Contact Material CuSn, CuZn | ||
Series 1610 | ||
- COO (Country of Origin):
- JP
Lumberg Power Supply Chassis Socket
From Lumberg, this DC power supply chassis socket is for snap-in font side mounting. The power socket has solder eyes for quick termination, and it nickel plated contact assures a reliable connection to corresponding DC plugs.
Features and Benefits
• Suitable for 3000 mating cycles
• Test voltage of 500 V AC/60
• Contact Resistance < 30 mΩ
• Test voltage of 500 V AC/60
• Contact Resistance < 30 mΩ
