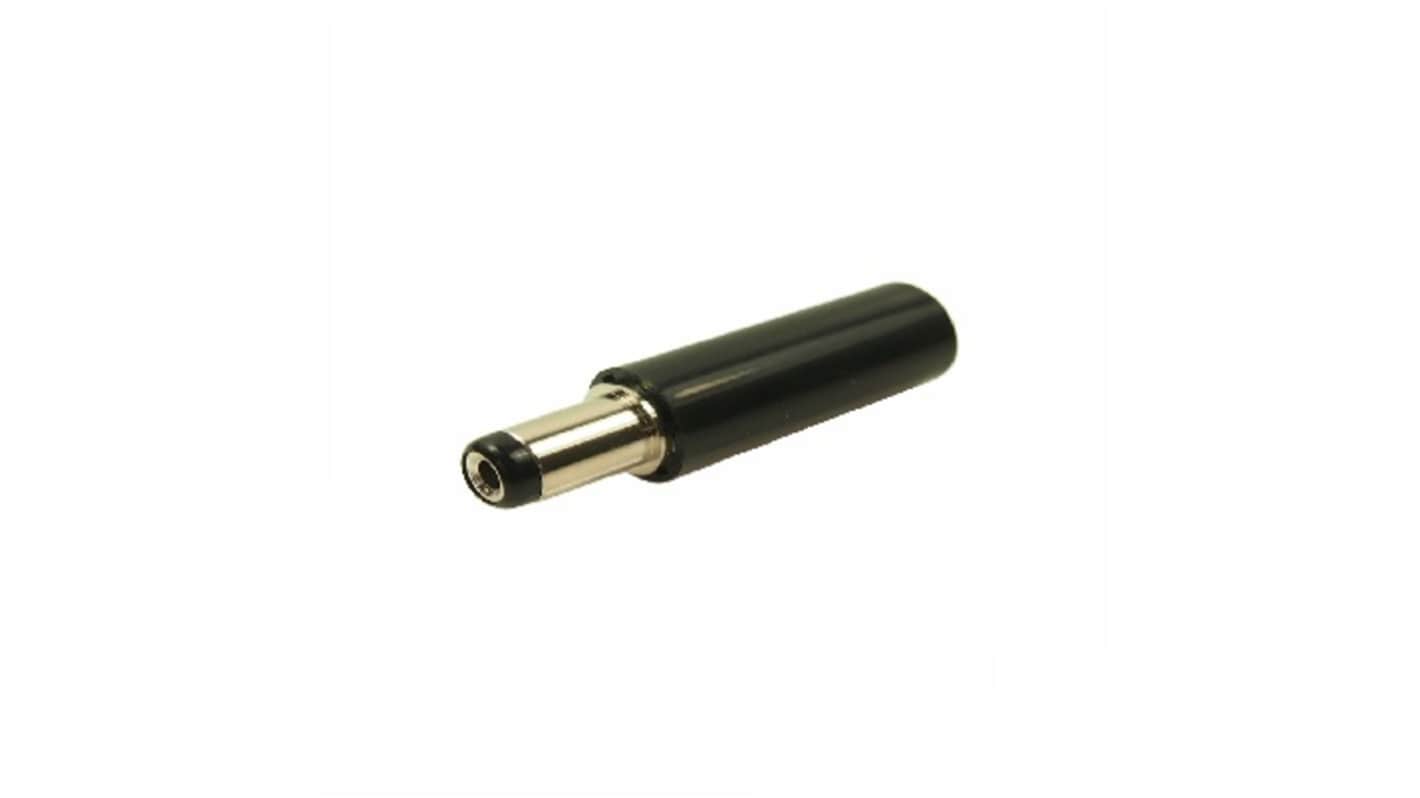

RS PRO Straight DC Jack 5A, 12V, Cable, length 32.7 mm, Nickel Plated
- RS Stock No.:
- 558-870
- Brand:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
£17.98
(exc. VAT)
£21.58
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 20 unit(s) ready to ship
- Plus 18 unit(s) ready to ship from another location
- Plus 40 unit(s) shipping from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 - 4 | £17.98 | £1.798 |
| 5 + | £16.54 | £1.654 |
*price indicative
- RS Stock No.:
- 558-870
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| DC Power Connector Type | DC Jack | |
| Product Type | DC Power Plug | |
| Inside Diameter | 2.5mm | |
| Orientation | Straight | |
| Outside Diameter | 5.5mm | |
| Current | 5A | |
| Voltage | 12V | |
| Length | 32.7mm | |
| Mount Type | Cable | |
| Contact Plating | Nickel Plated | |
| Contact Material | Brass | |
| Termination Type | Crimp | |
| Standards/Approvals | No | |
| Width | 32.7mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
DC Power Connector Type DC Jack | ||
Product Type DC Power Plug | ||
Inside Diameter 2.5mm | ||
Orientation Straight | ||
Outside Diameter 5.5mm | ||
Current 5A | ||
Voltage 12V | ||
Length 32.7mm | ||
Mount Type Cable | ||
Contact Plating Nickel Plated | ||
Contact Material Brass | ||
Termination Type Crimp | ||
Standards/Approvals No | ||
Width 32.7mm | ||
- COO (Country of Origin):
- TW
The RS Pro The DC connector plug has a sturdy ABS body and a nickel-plated brass contact for a dependable connection. The connector plug also features a crimp strain relief for securing the cable insulation, meaning this connector is securely terminated to the wire. It is also referred to as a barrel jack, this DC power plug is widely used in the powering and charging of smaller electronic appliances from common domestic mains points. Their simple sleeve and pin design makes them easy to connect, and they are usually attached to AC wall adaptors. Often found in Laptops, Wireless Speakers, Radios and Sound Systems, Games consoles.
DC Plug
Sizes 2.1mm
Cable mount
Rated 12V and 5A
