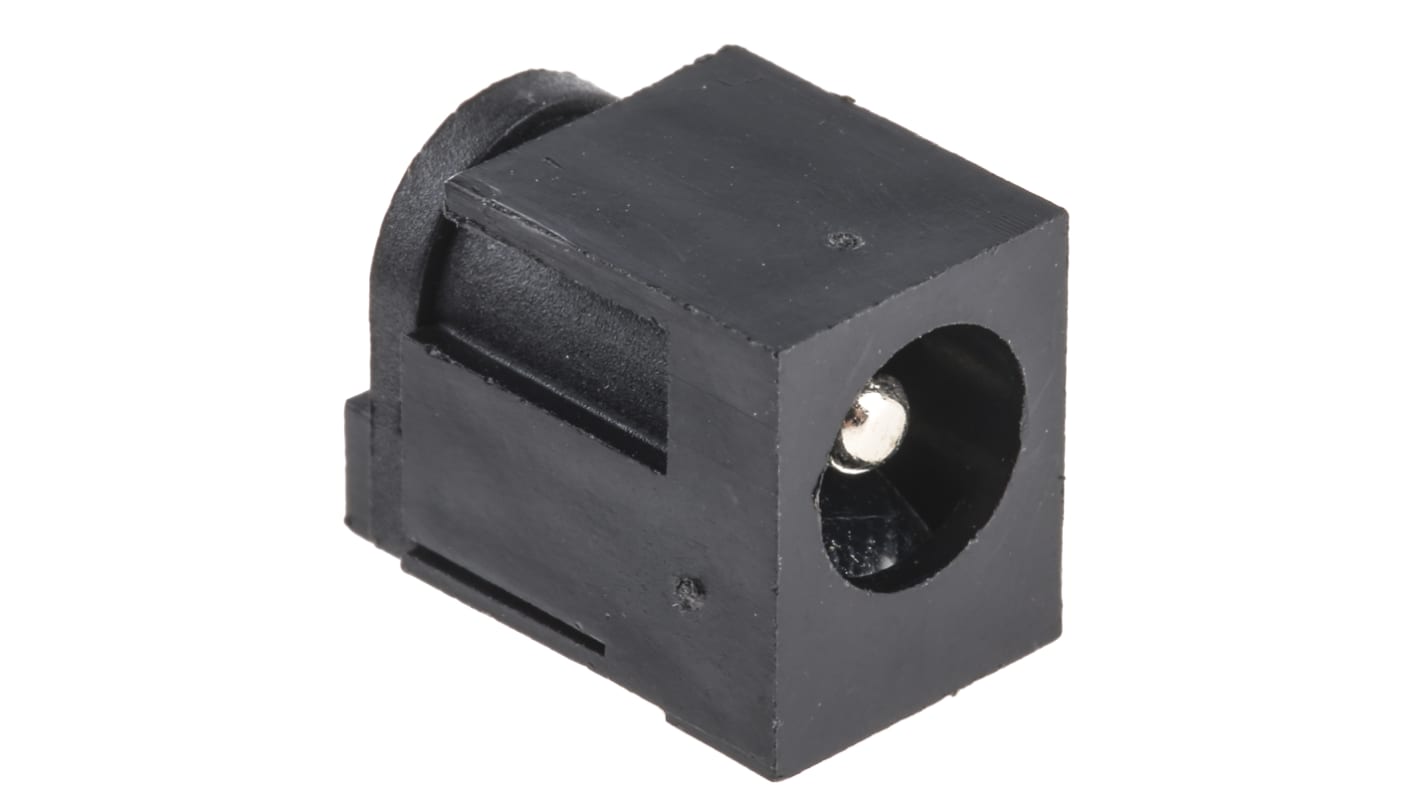

This straight direct current (DC) power socket from RS PRO push-fits into your printed circuit board (PCB) to provide your system with low-voltage power. The product is often applied with portable radios, calculators or testing and measurement equipment to facilitate a maximum of 2.5 A of current power.
The socket's right-angle body orientation means you can fit it into awkward work areas without the risk of cables wearing down. Its copper contact material provides fast and efficient electrical conduction with minimal loss of power through the connection. The nickel plating prevents buildups of rust and corrosion in the socket, which could shorten its life.
This product comes with a three-year warranty so you're assured of dependable performance. It also has a Restriction of Hazardous Substances (RoHS) certificate of compliance to indicate it contains little to no harmful materials.

• Right-angle body orientation
• Copper contact material
• Nickel contact plating
• DC socket connector type
• PCB mounting type
• Socket type
• Pin diameter of 5.5 mm
• Length of 14.5 mm
• Width of 14.5 mm
• Current rating of 2.5 A
• Voltage rating of 16 V
