TRACOPOWER TEL 8 DC-DC Converter, 12V dc/ 665mA Output, 18 → 24 V dc Input, 8W, Through Hole, +80°C Max Temp
- RS Stock No.:
- 918-9168
- Mfr. Part No.:
- TEL 8-2412
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£19.05
(exc. VAT)
£22.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 10 unit(s) shipping from 10 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £19.05 |
5 - 9 | £18.47 |
10 - 24 | £17.91 |
25 - 49 | £17.14 |
50 + | £16.38 |
*price indicative
- RS Stock No.:
- 918-9168
- Mfr. Part No.:
- TEL 8-2412
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | 12V dc | |
Input Voltage Range | 18 → 24 V dc | |
Power Rating | 8W | |
Input Voltage Nominal | 24 V dc | |
Output Current | 665mA | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Package | DIP 16 | |
Isolation Voltage | 1.5kV dc | |
Length | 23.8mm | |
Depth | 8mm | |
Width | 13.7mm | |
Series | TEL 8 | |
Load Regulation | 0.01 | |
Maximum Temperature | +80°C | |
Standards Met | ANSI/UL No:60950-1, CAN, CSA C22.2 No:60950-1-07, EN 55022 Class A, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, IEC 60950-1, REACH | |
Minimum Temperature | -40°C | |
Efficiency | 85% | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 18 → 24 V dc | ||
Power Rating 8W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 665mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package DIP 16 | ||
Isolation Voltage 1.5kV dc | ||
Length 23.8mm | ||
Depth 8mm | ||
Width 13.7mm | ||
Series TEL 8 | ||
Load Regulation 0.01 | ||
Maximum Temperature +80°C | ||
Standards Met ANSI/UL No:60950-1, CAN, CSA C22.2 No:60950-1-07, EN 55022 Class A, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, IEC 60950-1, REACH | ||
Minimum Temperature -40°C | ||
Efficiency 85% | ||
- COO (Country of Origin):
- TW

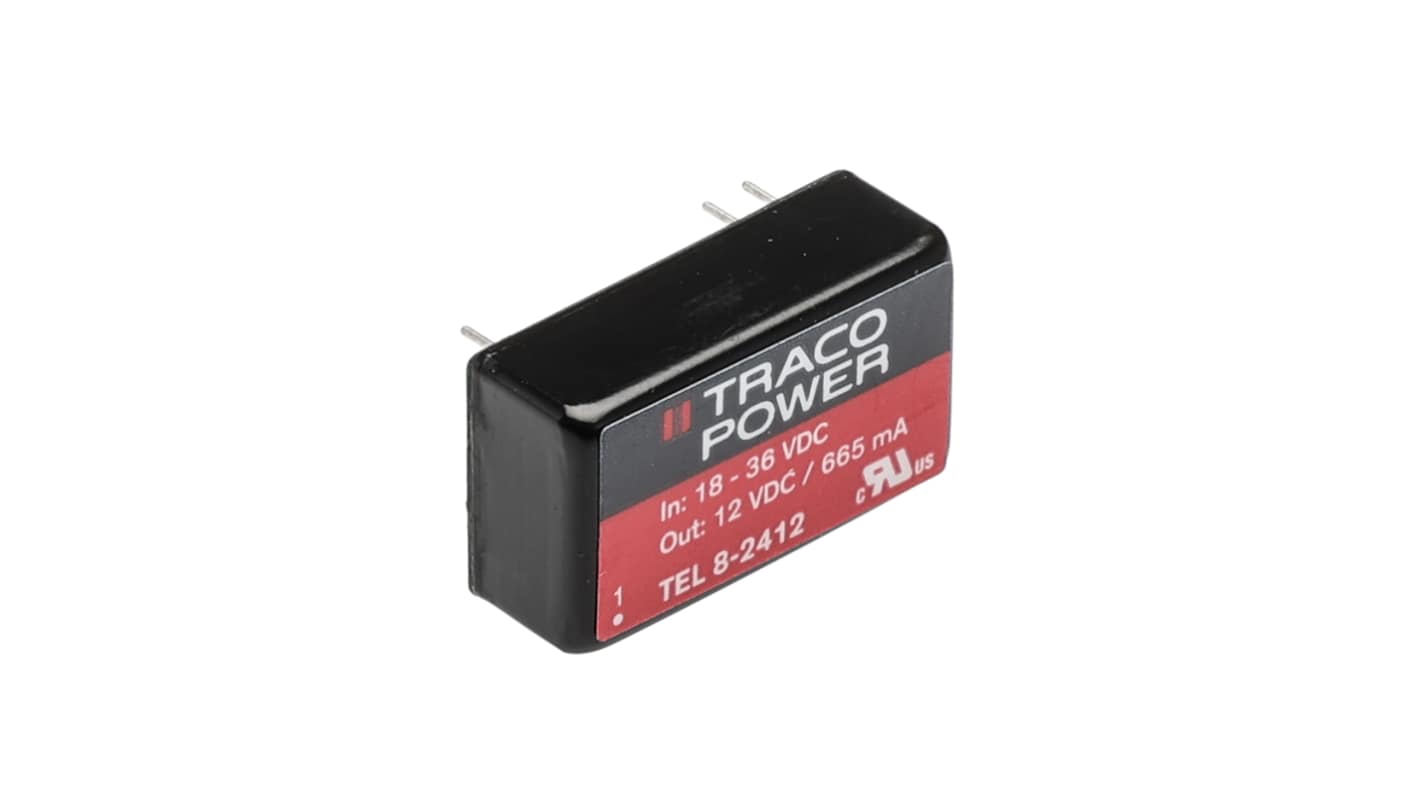

TRACOPOWER TEL 8 Series DC-DC Converter, 12V DC Output Voltage, 8W Power Rating - TEL 8-2412
This compact DC-DC converter provides efficient voltage conversion, supporting a nominal output of 12V DC at a power rating of 8W. It operates within an input voltage range of 18 to 24V DC and boasts impressive dimensions of 23.8mm in length, 13.7mm in width, and a depth of 8mm, arranged in a DIP-16 package for through-hole mounting.
Features & Benefits
• High efficiency of up to 85% reduces energy wastage
• Operating temperature range from -40°C to +80°C ensures reliability
• Built-in EN 55022 class A filter maintains compliance with standards
• Continuous short circuit protection guarantees safety under fault conditions
• Isolated design enhances safety and performance
• Compact size ideal for space-constrained projects
• Operating temperature range from -40°C to +80°C ensures reliability
• Built-in EN 55022 class A filter maintains compliance with standards
• Continuous short circuit protection guarantees safety under fault conditions
• Isolated design enhances safety and performance
• Compact size ideal for space-constrained projects
Applications
• Used in instrumentation for accurate signal conversion
• Suitable for IT requiring efficient power distribution
• Employed in industrial electronics for robust performance
• Ideal for automation systems needing reliable voltage regulation
• Suitable for IT requiring efficient power distribution
• Employed in industrial electronics for robust performance
• Ideal for automation systems needing reliable voltage regulation
What input voltage range does this adaptor support?
The device accepts input voltages ranging from 18V to 24V DC, allowing for flexibility in various setups.
How does the operating temperature affect performance?
Operating between -40°C and +80°C ensures consistent performance in extreme conditions while maintaining efficiency.
What kind of protection features does it include?
It features continuous short circuit protection, which provides automatic recovery to safeguard connected devices in case of faults.
What is the process for mounting this device?
It is designed for through-hole mounting, allowing for easy integration into standard circuit board layouts.
What regulations does this converter comply with?
This isolated DC-DC converter complies with multiple standards, including IEC 60950-1And UL 60950-1, ensuring reliability and safety.
