From Tracopower the ultra-compact isolated 8WI series DIP-16 metal-packaged DC-DC converter with an ultra-wide 4:1 input voltage range. This DC-DC converter provides up to 86% efficiency allowing an operating temperature of up to +70°C at full load and and up to 80°C with 50% load. The Tracopower TEL 8WI series also comes equipped with an input filter, allowing the series to comply with EN55022 class A conducted emission.
The Tracopower TEL 8WI series is a cost-effective product, without compromise on performance. This series is suited to applications where space is at a premium, such as instrumentation, IT and industrial electronics.

• Ultra-compact design with a DIP-16 metal package
• Wide 4:1 input range.
• Fully regulated outputs
• Built in EN 55022 class A filter
• Operating temperature range of -40 to +80°C
• Equipped with industry standard safety features such as overload and short circuit protection.

EN55022 class A

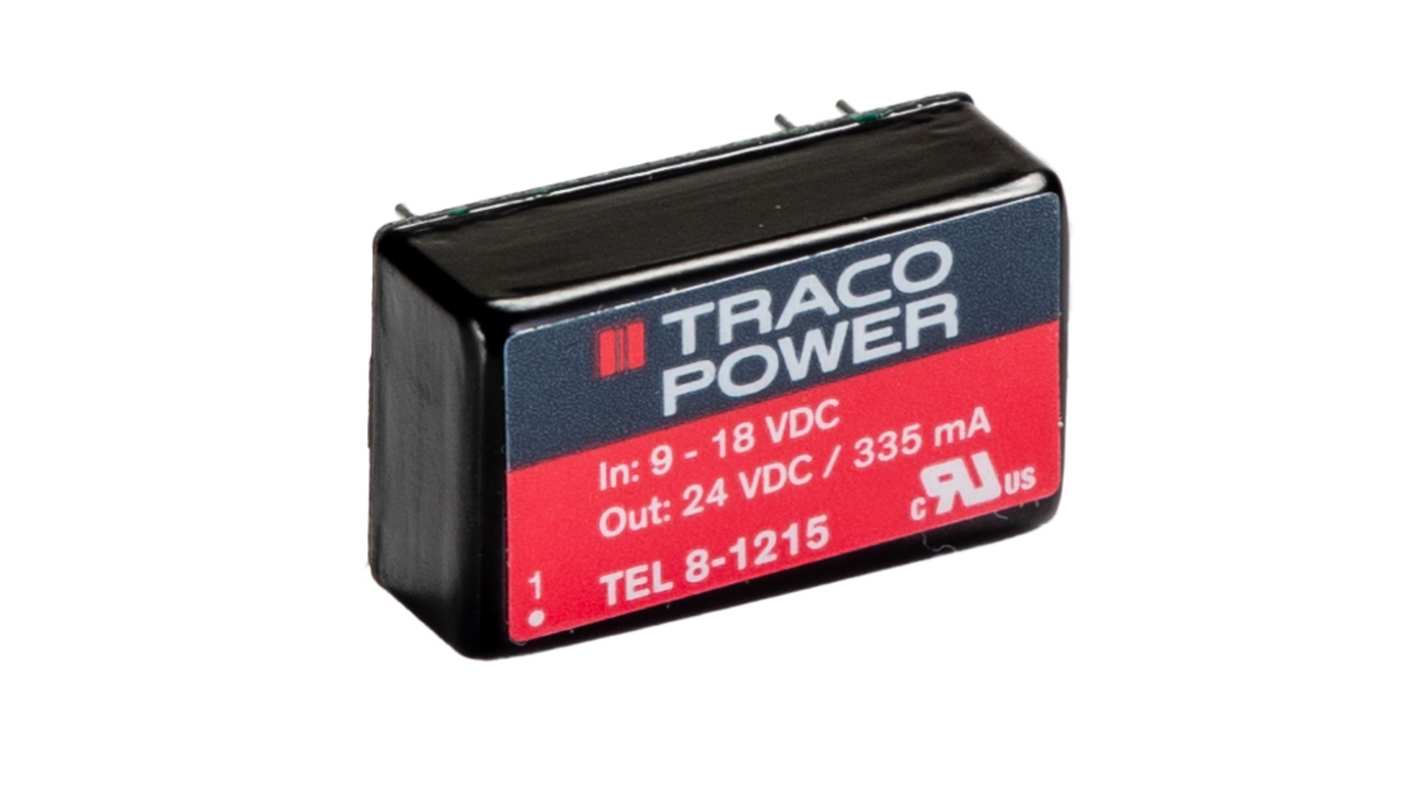

This isolated DC-DC converter offers efficient power conversion for compact applications. Housed in a metal DIP 16 package, it provides an output voltage of 24V DC and operates within a nominal input range of 9V to 18V DC. Its dimensions are 8mm in depth, 23.8mm in length, and 13.7mm in width, making it well-suited for space-constrained environments.

• High efficiency of up to 85% reduces energy loss
• Compact DIP 16 package conserves space
• 2:1 input voltage range supports a variety of applications
• Isolated design enhances safety for sensitive projects

• Suitable for industrial power conversion tasks
• Ideal for instrumentation and IT
• Appropriate for cost-sensitive electronic projects
• Implements input filtering to adhere to emission standards

Yes, it can function up to +80°C at full load.

Yes, it meets the IEC/EN 62368-1 standards for safety.
