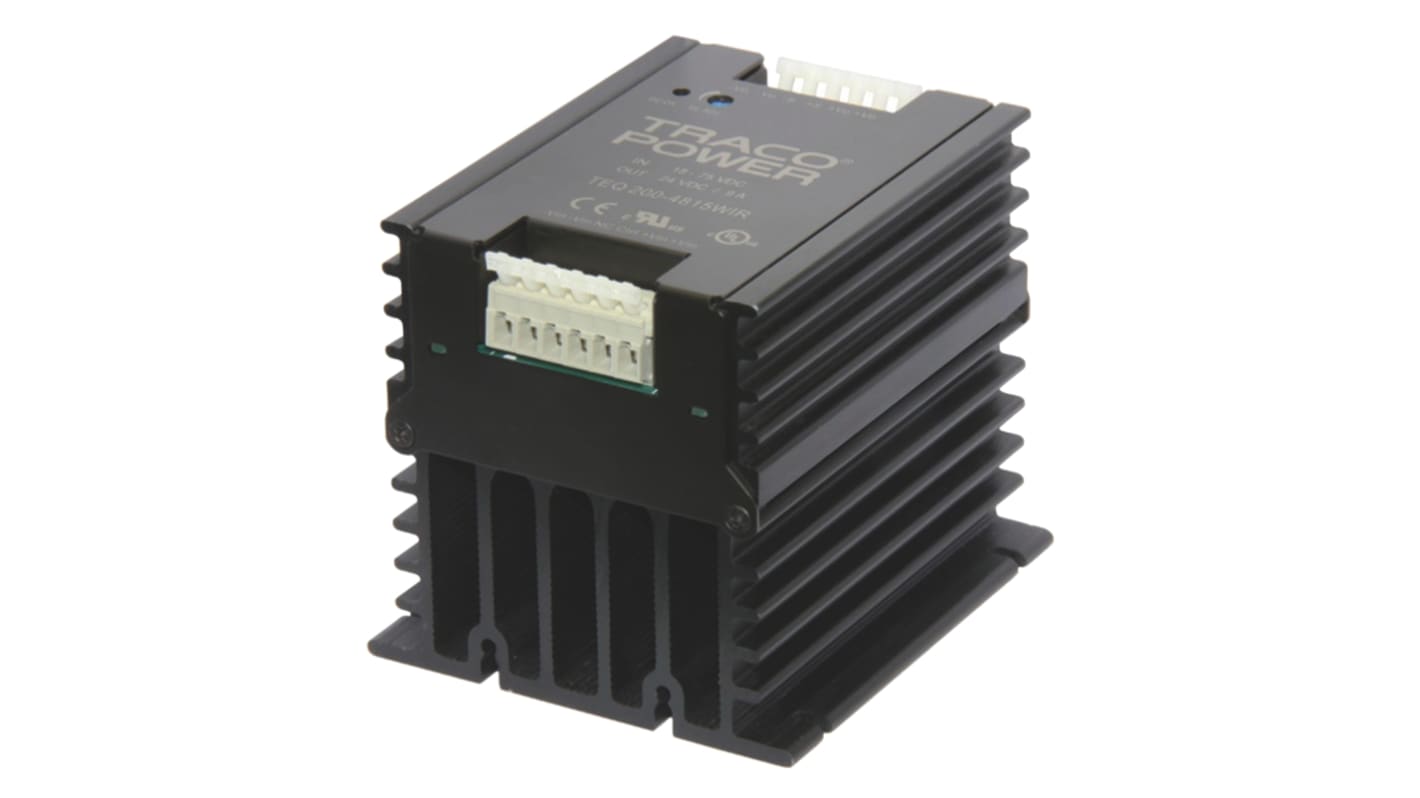

TRACOPOWER TEQ 100WIR Isolated DC-DC Converter, 28V dc/ 3.6A Output, 18 → 75 V dc Input, 100W, Chassis Mount,

View all DC-DC Converters
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
817-8704
Mfr. Part No.:
TEQ 100-4816WIR
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage

28V dc

Input Voltage Range

18 → 75 V dc

Power Rating

100W

Input Voltage Nominal

48 V dc

Output Current

3.6A

Mounting Type

Chassis Mount

Number of Outputs

1

Isolation Voltage

2.25kV dc

Length

88.9mm

Depth

103.2mm

Railway Approved

Yes

Series

TEQ 100WIR

Load Regulation

0.1%

Maximum Temperature

+105°C

Medical Approved

No

Minimum Temperature

-40°C

COO (Country of Origin):
TW

Traco 100W Single Output Regulated Isolated DC-DC Converter - TEQ-100 Series


The Tracopower TEQ-100WIR series of isolated, high performance DC-DC converters come with ultra-wide 4:1 input voltage range in a rugged, sealed metal case. These converters can be used with a temperature up to 85°C with natural convection cooling and up to 95°C with power derating. The TEQ-100WIR features output voltage trimming, remote ON/OFF and under voltage lockout. These DC-DC converters are suitable for a wide range of applications, including railway and battery operated systems, but they are particularly designed for industrial applications where no PCB mounting is possible and the module has to be mounted on chassis.

High power block with excellent thermal convection
Operating temperature -40°C to +85°C without derating
Increased shock & vibration resistance
Ultra wide 4:1 input voltage range
Approved for railway applications
Excellent efficiency up to 90%
I/O insulation 2250 VDC
Under voltage lock-out circuit
Soft start
Input protection filter

Standards

UL 60950-1, IEC/EN 60950-1, UL 508, EN50155

Approvals

UL/cUL
