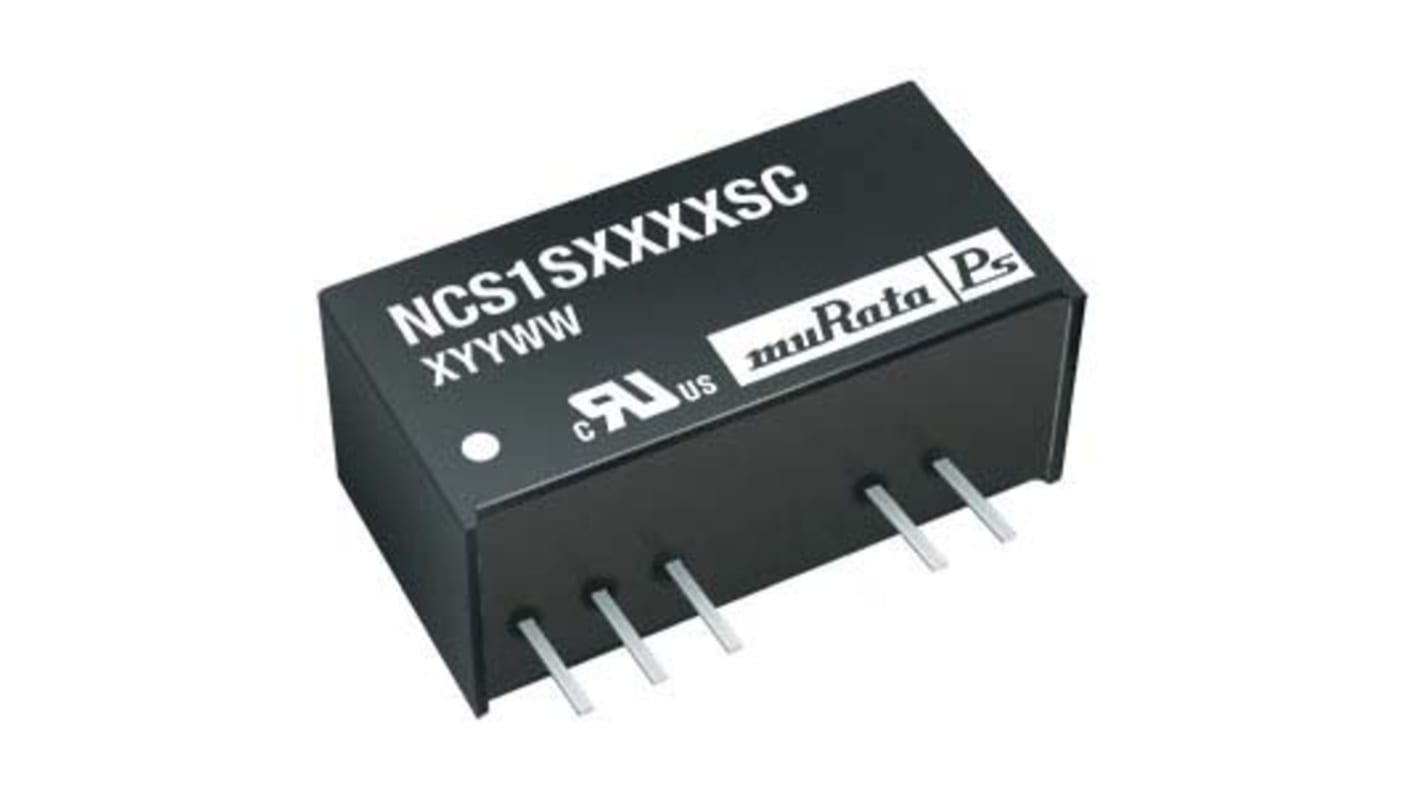

Murata Power Solutions NCS1 DC-DC Converter, 3.3V dc/ 300mA Output, 9 → 36 V dc Input, 1W, Through Hole, +105°C
- RS Stock No.:
- 816-3487P
- Mfr. Part No.:
- NCS1S2403SC
- Brand:
- Murata Power Solutions
Bulk discount available
Subtotal 5 units (supplied in a tube)*
£34.15
(exc. VAT)
£41.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 69 unit(s) shipping from 14 November 2025
- Plus 46 unit(s) shipping from 19 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 5 - 9 | £6.83 |
| 10 - 24 | £6.61 |
| 25 - 49 | £6.41 |
| 50 + | £6.19 |
*price indicative
- RS Stock No.:
- 816-3487P
- Mfr. Part No.:
- NCS1S2403SC
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Output Voltage | 3.3V dc | |
| Input Voltage Range | 9 → 36 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 300mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Isolation Voltage | 1kV dc | |
| Depth | 11.3mm | |
| Length | 21.87mm | |
| Series | NCS1 | |
| Load Regulation | 0.005 | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +105°C | |
| Efficiency | 76% | |
Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Output Voltage 3.3V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 300mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Isolation Voltage 1kV dc | ||
Depth 11.3mm | ||
Length 21.87mm | ||
Series NCS1 | ||
Load Regulation 0.005 | ||
Minimum Temperature -40°C | ||
Maximum Temperature +105°C | ||
Efficiency 76% | ||
Murata 1W SIP Single Output Regulated Isolated DC-DC Converter - NCS1 Series
The Murata PS NCS1 series of DC/DC converters offers single & dual output voltages from input voltage ranges of 4.5-18V and 9-36V. This power converter is housed in an industry standard package with a standard pinout. The DC/DC converter is encapsulated for superior thermal performance. Applications include telecommunications, battery powered systems, process control and distributed power systems.
4:1 Wide range voltage input
Operating temperature range -40°C to 105°C
Typical load regulation from 0.05%
1 k VDC Isolation
3.3V, 5V and 12V outputs
No electrolytic capacitors
Continuous short circuit protection
Operating temperature range -40°C to 105°C
Typical load regulation from 0.05%
1 k VDC Isolation
3.3V, 5V and 12V outputs
No electrolytic capacitors
Continuous short circuit protection
Approvals
UL60950
Murata Power Solutions - SIP
