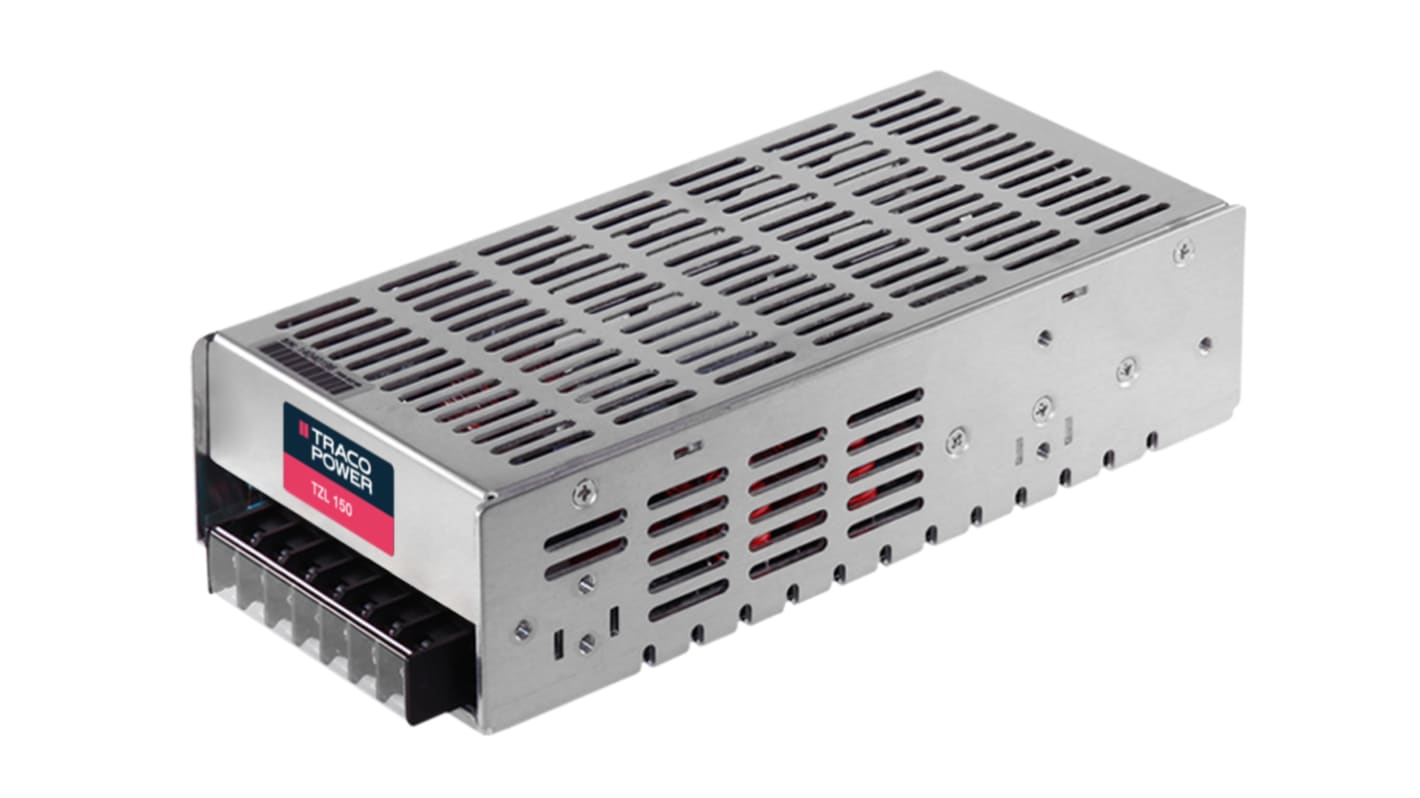

TRACOPOWER TZL DC-DC Converter, 12V dc/ 12.5A Output, 36 → 72 V dc Input, 150W, Chassis Mount, +70°C Max Temp
- RS Stock No.:
- 754-1508
- Mfr. Part No.:
- TZL 150-4812
- Brand:
- TRACOPOWER
Discontinued
- RS Stock No.:
- 754-1508
- Mfr. Part No.:
- TZL 150-4812
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 36 → 72 V dc | |
| Power Rating | 150W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 12.5A | |
| Mounting Type | Chassis Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Isolation Voltage | 1.5kV dc | |
| Length | 211mm | |
| Depth | 50mm | |
| Series | TZL | |
| Load Regulation | ±1% | |
| Efficiency | 70 → 80% | |
| Maximum Temperature | +70°C | |
| Minimum Temperature | -10°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 36 → 72 V dc | ||
Power Rating 150W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 12.5A | ||
Mounting Type Chassis Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Isolation Voltage 1.5kV dc | ||
Length 211mm | ||
Depth 50mm | ||
Series TZL | ||
Load Regulation ±1% | ||
Efficiency 70 → 80% | ||
Maximum Temperature +70°C | ||
Minimum Temperature -10°C | ||
- COO (Country of Origin):
- TW
Traco 60-300W Enclosed Isolated DC-DC Converter - TZL Series
60-300W enclosed isolated DC-DC converters with a compact low profile metal case and screw terminal block for easy installation. These enclosed isolated DC-DC converters have a wide 2:1 input voltage range and adjustable output voltage.
Wide 2:1 input voltage range
Adjustable output voltage
1500Vdc I/O isolation
Soft start and low inrush current
Reverse input polarity, overload and short circuit protection
EMC compliance to EN 55022, class B
Adjustable output voltage
1500Vdc I/O isolation
Soft start and low inrush current
Reverse input polarity, overload and short circuit protection
EMC compliance to EN 55022, class B
Note
MTBF to MIL-HDBK-217F
Derates at 2%/K above 45°C
Derates at 2%/K above 45°C
Standards
Meets UL/IEC/EN60950
Traco 60 - 300 Watt Enclosed Isolated DC/DC Converters
