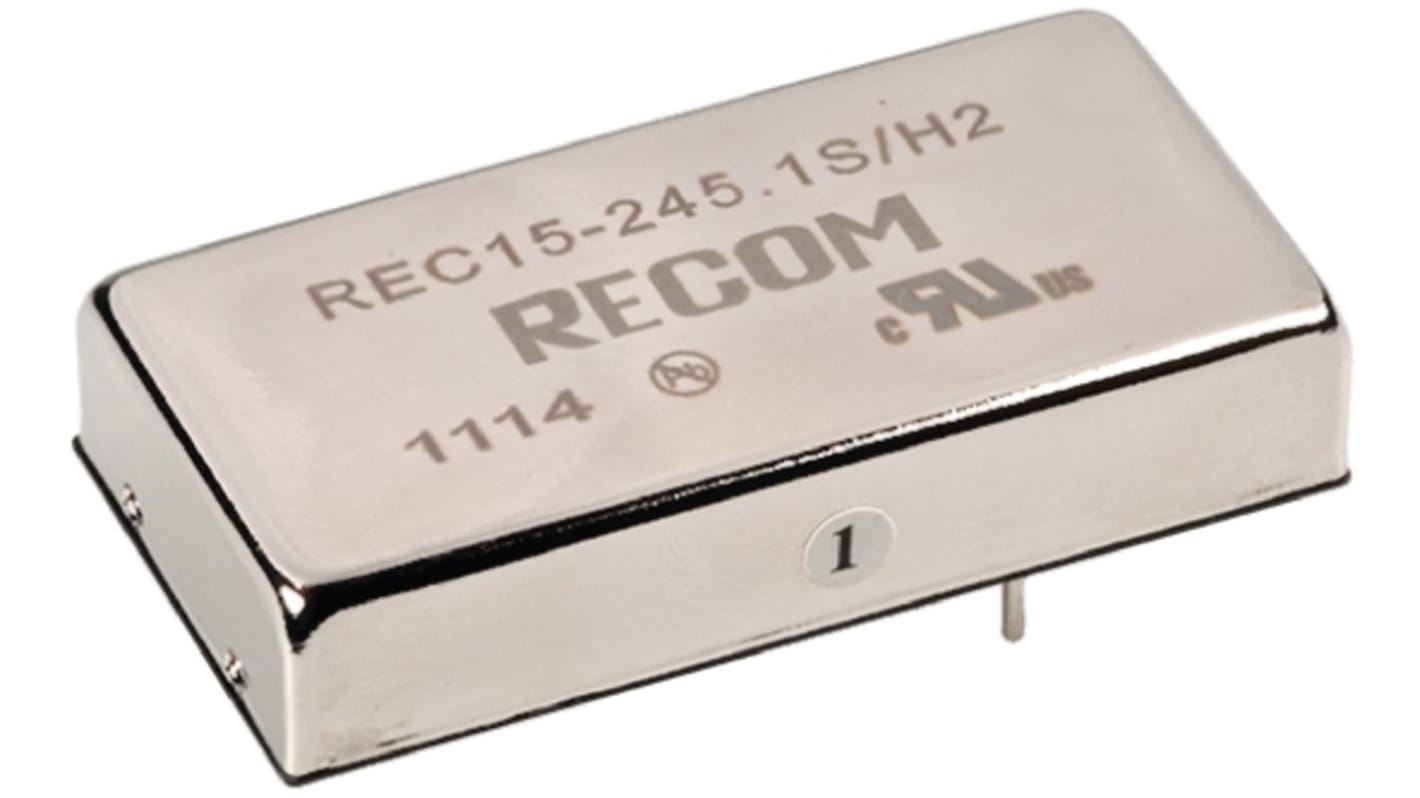

DC/DC converter,9-18Vi,+/-15Vo 500mA,15W

View all DC-DC Converters
Discontinued
Packaging Options:
RS Stock No.:
733-1405
Mfr. Part No.:
REC15-1215D/H2
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Output Voltage

±15V dc

Input Voltage Range

9 → 18 V dc

Power Rating

15W

Input Voltage Nominal

12 V dc

Output Current

±500mA

Mounting Type

Through Hole

Number of Outputs

2

Isolation Voltage

2000V dc

Depth

10.2mm

Length

50.8mm

Load Regulation

±1.2%

Maximum Temperature

+71°C

Efficiency

85 → 86%

Minimum Temperature

-40°C

Recom 15W Single/Dual Output Regulated 2:1 Ratio Isolated DC-DC Converter - REC15-S Series


15 W 2" x 1" single and dual output regulated DC to DC converters with remote on/off control and 2kVdc isolation. These regulated DC to DC converters can deliver 150% rated power for short periods of time to cope with applications with large capacitive loads or high start up currents making them suitable for higher power industrial applications. The outputs with 3A load current have raised output voltages to compensate for track losses as standard

15W in a 2" x 1" package
2:1 voltage ratio
Continuous short circuit protection, auto restart and overload protection
Synchronous rectification on 3.4V and 5.1V outputs
Remote control pin
Efficiency of up to 87%

Standards

EN-60950-1, UL60950-1

Approvals

UL
