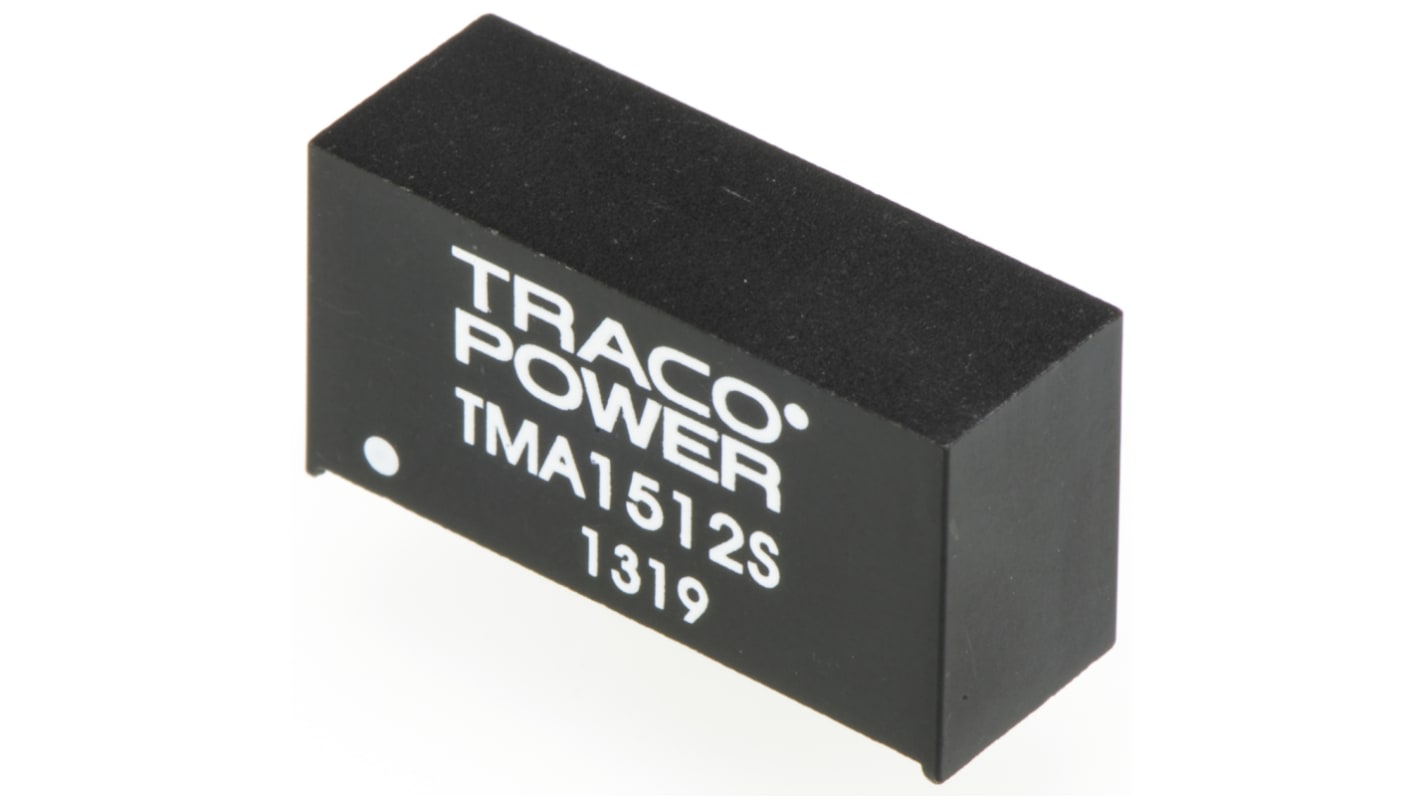

TRACOPOWER TMA DC-DC Converter, 12V dc/ 80mA Output, 13.5 → 16.5 V dc Input, 1W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 706-5060P
- Mfr. Part No.:
- TMA 1512S
- Brand:
- TRACOPOWER
Save 11% when you buy 50 units
Subtotal 5 units (supplied in a tube)*
£19.65
(exc. VAT)
£23.60
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 5 - 9 | £3.93 |
| 10 - 24 | £3.81 |
| 25 - 49 | £3.65 |
| 50 + | £3.48 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£4.05
(exc. VAT)
£4.86
(inc. VAT)
- RS Stock No.:
- 706-5060P
- Mfr. Part No.:
- TMA 1512S
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 13.5 → 16.5 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 15 V dc | |
| Output Current | 80mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP 6 | |
| Isolation Voltage | 1kV dc | |
| Depth | 10.2mm | |
| Length | 19.5mm | |
| Width | 6.1mm | |
| Series | TMA | |
| Load Regulation | ±10% | |
| Efficiency | 80% | |
| Minimum Temperature | -40°C | |
| Standards Met | IEC/EN 62368-1 | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 13.5 → 16.5 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 15 V dc | ||
Output Current 80mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP 6 | ||
Isolation Voltage 1kV dc | ||
Depth 10.2mm | ||
Length 19.5mm | ||
Width 6.1mm | ||
Series TMA | ||
Load Regulation ±10% | ||
Efficiency 80% | ||
Minimum Temperature -40°C | ||
Standards Met IEC/EN 62368-1 | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- TW
Traco Power DC-DC Converter, SIP-7 Format, 84mA Output Current - TMA Series - TMA 1512S
Cut loads down to size with this DC-DC converter from Traco Power. It steps 13.5 to 16.5V DC inputs down to a steady 12V output, reliably getting your components the energy they need. As it works at 79% efficiency, the device cuts back on wasted power and runs reliably cool. Securing it to a PCB is no trouble, thanks to its simple through-hole mounting method. The pinout follows industry standards to make identifying its connections a breeze.
Features & Benefits
• Narrow SIP-7 format means it fits neatly onto small circuit boards
• Supports input changes up to 1.5% to smooth out disruption from unstable supplies
• Low maximum ripple voltage of 75mV to reduce electrical noise
• Plastic insulation minimises user exposure to electrical loads
• Supports input changes up to 1.5% to smooth out disruption from unstable supplies
• Low maximum ripple voltage of 75mV to reduce electrical noise
• Plastic insulation minimises user exposure to electrical loads
Applications
• Manufacturing industry
• Domestic appliances
• Server management
• Domestic appliances
• Server management
Is this converter protected against electrical faults?
Yes, it comes with short-circuit protection and shuts down as soon as power issues pop up to cut the risk of hardware damage.
Can I use the device in demanding environments?
A broad operating temperature range of -40°C to +85°C means it's safe to use in tough conditions.
