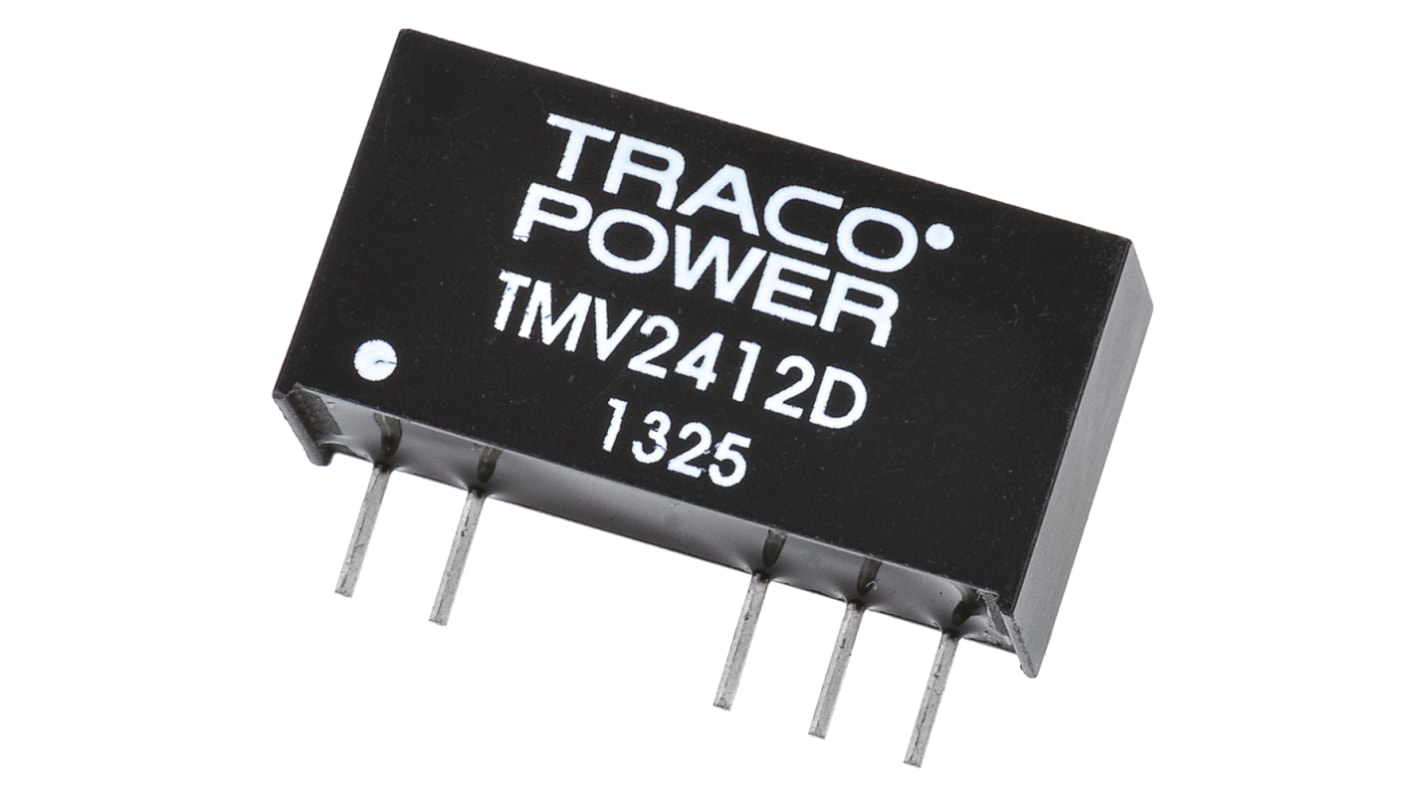

TRACOPOWER TMV DC-DC Converter, ±12V dc/ ±40mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 666-4079P
- Mfr. Part No.:
- TMV 2412D
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal 5 units (supplied in a tube)*
£26.95
(exc. VAT)
£32.35
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 5 - 9 | £5.39 |
| 10 - 24 | £5.22 |
| 25 - 49 | £5.00 |
| 50 + | £4.78 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£5.56
(exc. VAT)
£6.67
(inc. VAT)
- RS Stock No.:
- 666-4079P
- Mfr. Part No.:
- TMV 2412D
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±12V dc | |
| Input Voltage Range | 21.6 → 26.4 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | ±40mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | SIP 7 | |
| Isolation Voltage | 3kV dc | |
| Length | 19.5mm | |
| Width | 6.1mm | |
| Depth | 10.2mm | |
| Series | TMV | |
| Load Regulation | ±10% | |
| Maximum Temperature | +85°C | |
| Efficiency | 79% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±12V dc | ||
Input Voltage Range 21.6 → 26.4 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 24 V dc | ||
Output Current ±40mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package SIP 7 | ||
Isolation Voltage 3kV dc | ||
Length 19.5mm | ||
Width 6.1mm | ||
Depth 10.2mm | ||
Series TMV | ||
Load Regulation ±10% | ||
Maximum Temperature +85°C | ||
Efficiency 79% | ||
Minimum Temperature -40°C | ||
