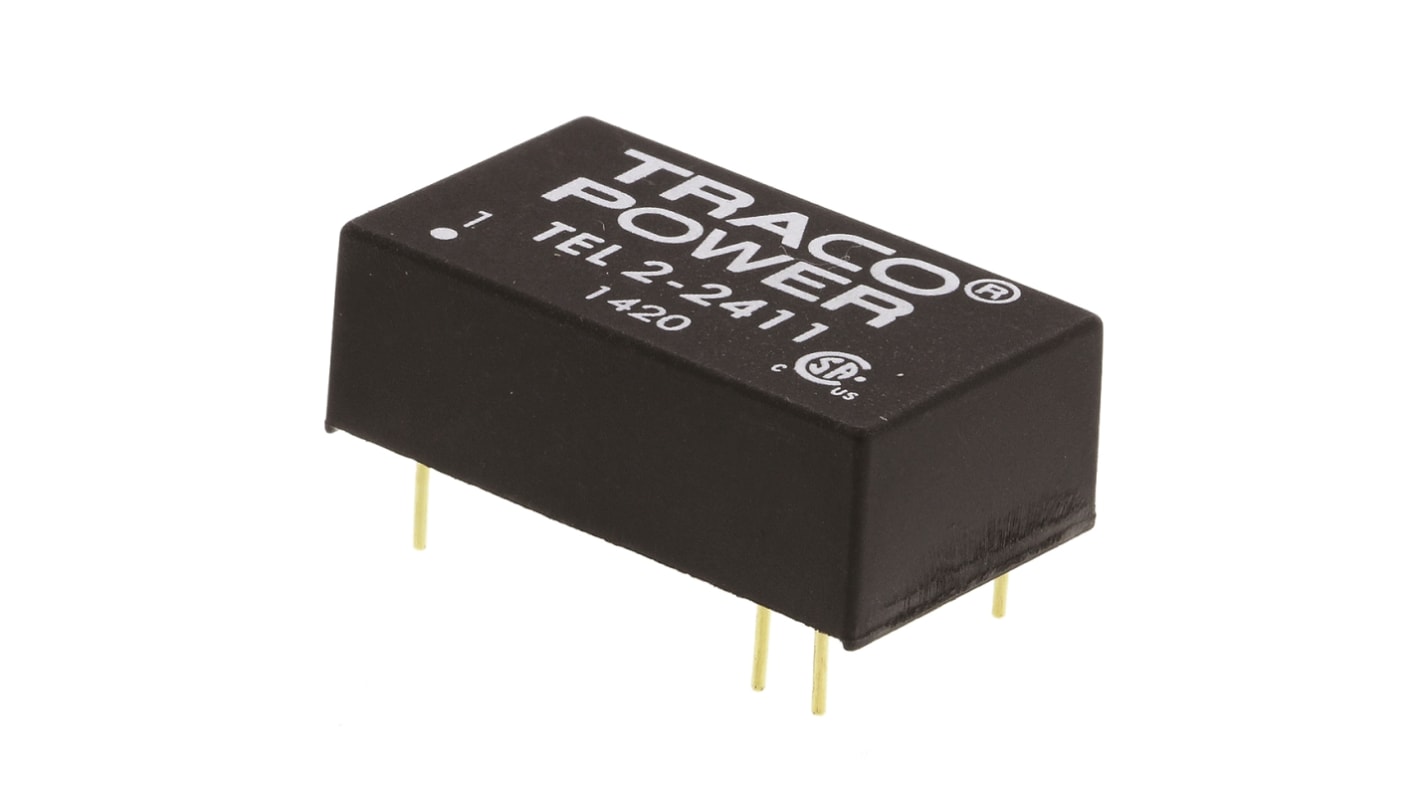

TRACOPOWER TEL 2 DC-DC Converter, 5V dc/ 400mA Output, 18 → 36 V dc Input, 2W, Through Hole, +75°C Max Temp
- RS Stock No.:
- 510-5829
- Mfr. Part No.:
- TEL 2-2411
- Brand:
- TRACOPOWER
7 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Price Each
£11.55
(exc. VAT)
£13.86
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £11.55 |
5 - 9 | £11.20 |
10 - 24 | £10.86 |
25 - 49 | £10.40 |
50 + | £9.93 |
- RS Stock No.:
- 510-5829
- Mfr. Part No.:
- TEL 2-2411
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco Power DC-DC Converter, Plastic Housing, DIP-16 Package - TEL 2 Series - TEL 2-2411
To get efficient power regulation for your low-power components, choose this DC-DC converter from Traco Power. It steps down input voltages ranging from 18 to 36V and outputs a balanced 5V that's just right for PCB-linked devices like sensors and LED lights. The unit's plastic housing provides reliable impact resistance that comes in handy for challenging industrial tasks. This material is also self-extinguishing and stops burning in next to no time when a fire occurs, so it's a safe option in volatile settings.
Features & Benefits
• Wide operating temperature range between -40°C and +75°C for use in extreme climates
• Compact dimensions of 23.8 (L) x 13.7 (W) x 8mm (D) for space-efficient installation in confined setups
• Through-hole mounting method gives a secure connection that stands fast in vibrating systems
• Efficiency of 77% for minimal energy loss to heat
• Compact dimensions of 23.8 (L) x 13.7 (W) x 8mm (D) for space-efficient installation in confined setups
• Through-hole mounting method gives a secure connection that stands fast in vibrating systems
• Efficiency of 77% for minimal energy loss to heat
Applications
• Consumer electronics
• Measurement and instrumentation devices
• Medical equipment
• Measurement and instrumentation devices
• Medical equipment
What's the isolation voltage rating of this DC-DC converter?
This piece of kit has an isolation voltage rating of 1.5kV to keep you and your equipment safe from the harmful effects of sudden power surges.
Specifications
Attribute | Value |
---|---|
Output Voltage | 5V dc |
Input Voltage Range | 18 → 36 V dc |
Power Rating | 2W |
Input Voltage Nominal | 24 V dc |
Output Current | 400mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Package | DIP 16 |
Isolation Voltage | 1.5kV dc |
Length | 23.8mm |
Depth | 7.62mm |
Series | TEL 2 |
Load Regulation | ±0.75% |
Efficiency | 77% |
Maximum Temperature | +75°C |
Minimum Temperature | -40°C |
