TRACOPOWER THN 30WIR Isolated DC-DC Converter, 24V dc/, 9 → 36 V dc Input, 30W, PCB Mount
- RS Stock No.:
- 249-7345
- Mfr. Part No.:
- THN 30-2415WIR
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£545.18
(exc. VAT)
£654.22
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £545.18 | £54.518 |
| 5 - 9 | £528.83 | £52.883 |
| 10 - 24 | £512.46 | £51.246 |
| 25 - 49 | £490.66 | £49.066 |
| 50 + | £468.85 | £46.885 |
*price indicative
- RS Stock No.:
- 249-7345
- Mfr. Part No.:
- THN 30-2415WIR
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 24V dc | |
| Input Voltage Range | 9 → 36 V dc | |
| Power Rating | 30W | |
| Input Voltage Nominal | 24 V dc | |
| Mounting Type | PCB Mount | |
| Isolated | Yes | |
| Output Voltage Adjustment Range | -10 → +20% | |
| Isolation Voltage | 3kV dc | |
| Series | THN 30WIR | |
| Railway Approved | Yes | |
| Medical Approved | No | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 24V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 30W | ||
Input Voltage Nominal 24 V dc | ||
Mounting Type PCB Mount | ||
Isolated Yes | ||
Output Voltage Adjustment Range -10 → +20% | ||
Isolation Voltage 3kV dc | ||
Series THN 30WIR | ||
Railway Approved Yes | ||
Medical Approved No | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- TW

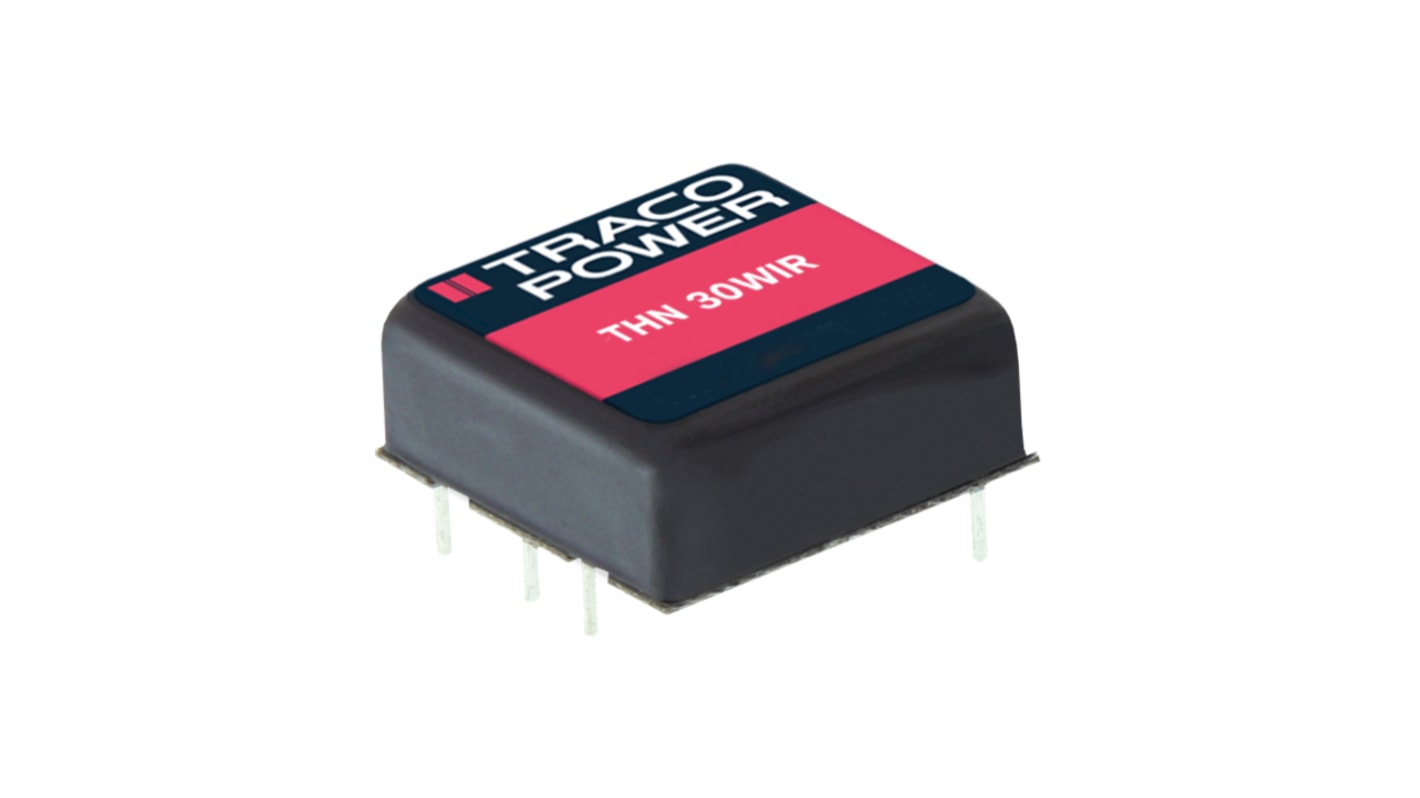

TRACOPOWER THN 30WIR Series Isolated DC-DC Converter, 3kV DC Isolation Voltage, 90% Efficiency - THN 30-2415WIR
This isolated DC-DC converter is designed for dependable power conversion in demanding environments. With compact dimensions of 25.4mm x 25.4mm x 9.9mm, it provides an output voltage of 24V DC and accommodates an input voltage range of 9 to 36V DC. The TRACOPOWER unit operates efficiently while demonstrating resilience to mechanical shocks and temperature variations.
Features & Benefits
• High efficiency of up to 92% minimises energy loss
• Metal enclosure protects against electromagnetic interference
• Compact size optimises PCB space
• EN 50155 certification confirms suitability for railway applications
• Metal enclosure protects against electromagnetic interference
• Compact size optimises PCB space
• EN 50155 certification confirms suitability for railway applications
Applications
• Suitable for railway power systems
• Used in telecommunications equipment
• Commonly employed in control systems
• Utilised in portable medical devices
• Used in telecommunications equipment
• Commonly employed in control systems
• Utilised in portable medical devices
Can it operate without additional cooling?
Yes, it can function without additional cooling under specified conditions.
Will it withstand high-temperature environments?
Yes, it operates effectively at temperatures up to +80°C.
Can it be mounted easily on a PCB?
Yes, it is designed for convenient PCB mounting.
