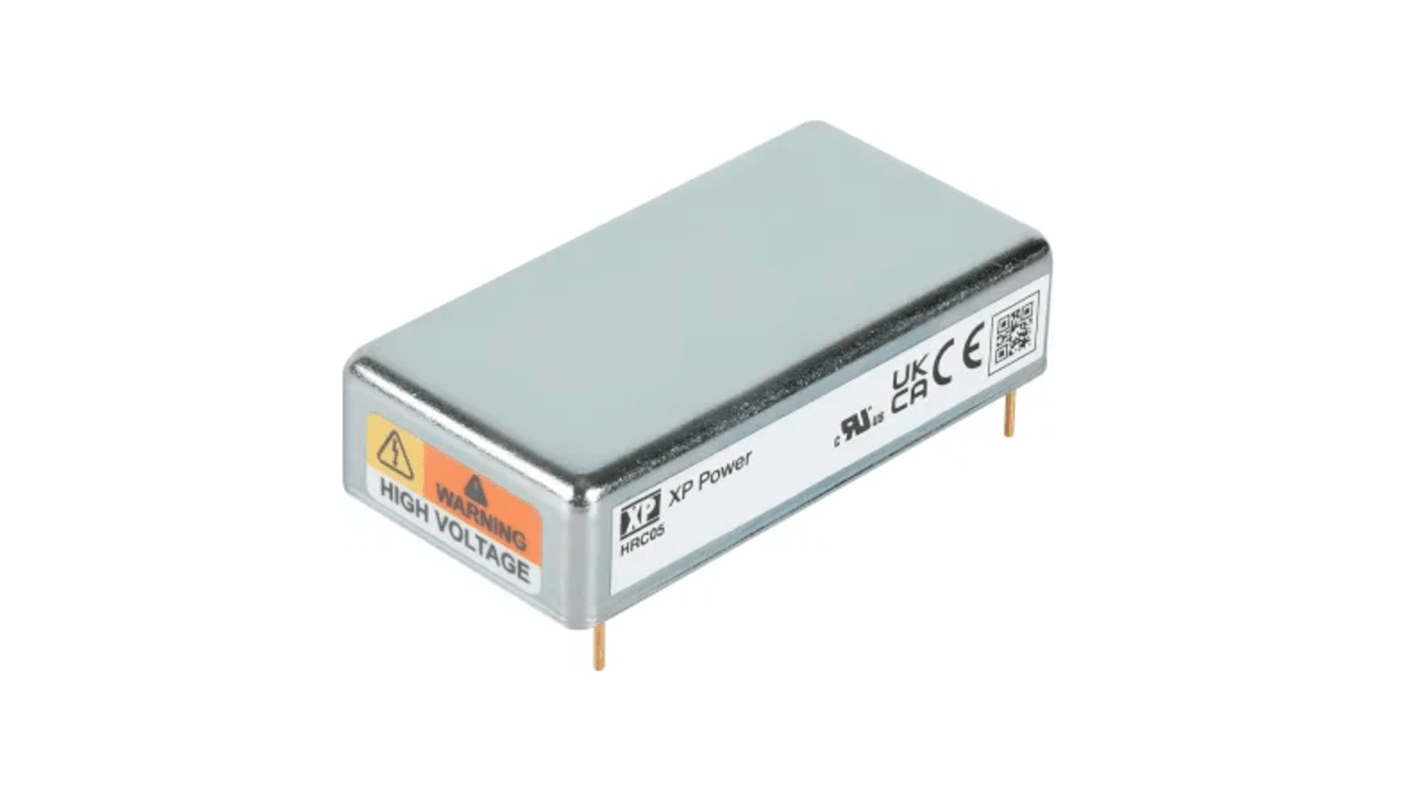

XP Power HRC05 DC/DC Converter, 0V dc, 4000 V dc/, 24V dc Input 1.25 mA, 24V dc Input, 5 W, Through Hole, 70 °C Max Temp

View all DC-DC Converters
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
220-8634
Distrelec Article No.:
302-16-583
Mfr. Part No.:
HRC0524S4K0N
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Product Type

DC/DC Converter

Output Voltage 1

0, 4000V dc

Maximum Input Voltage

24V dc

Minimum Input Voltage

24V dc

Mount Type

Through Hole

Number of Outputs

5

MTBF

1.2mH

Ripple and Noise

0.0001%

Output Current 1

1.25mA

Number of Pins

10

Maximum Output Power

5W

Width

33mm

Standards/Approvals

UL62368, UL61010

Length

64.8mm

Weight

74g

Series

HRC05

Maximum Operating Temperature

70°C

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TW
The XP Power HRC05 Series, is a miniature 5W regulated high voltage DC-DC converter product line providing voltages up to 4kV. HRC05 provides a well regulated and fully adjustable output voltage with built in short circuit and overload protection. The input control and output monitor signals are digital compatible making these modules an ideal solution for a wide range of high voltage applications.

Voltage & Current Monitor Output

Short Circuit, Arc, and Overload Protections

UL62368 and UL61010 Approvals
