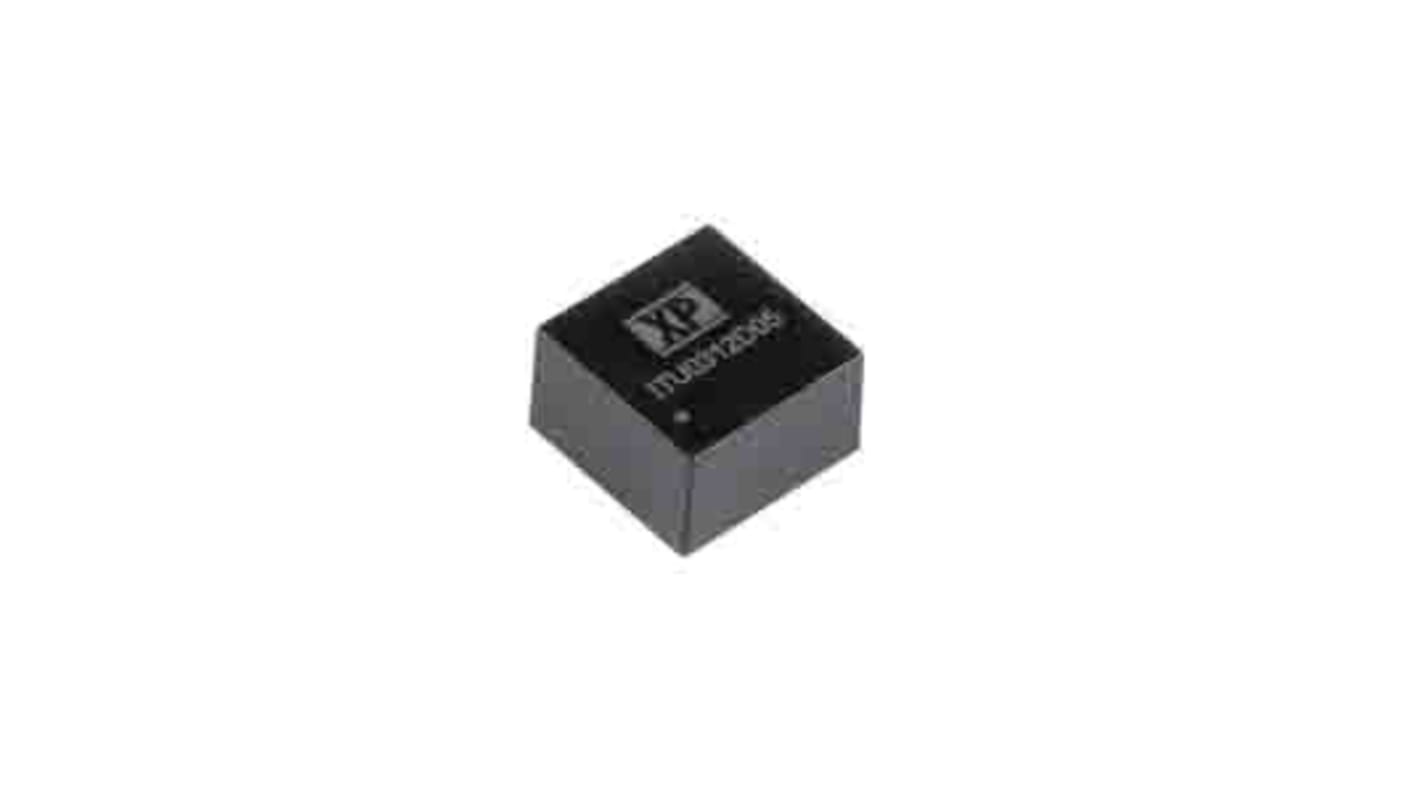

XP Power ITU03 DC-DC Converter, 12V dc/ 250mA Output, 4.5 → 18 V dc Input, 3W, Through Hole, +80°C Max Temp
- RS Stock No.:
- 213-4191
- Distrelec Article No.:
- 301-85-924
- Mfr. Part No.:
- ITU0312S12
- Brand:
- XP Power
Subtotal (1 unit)*
£9.95
(exc. VAT)
£11.94
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 55 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 + | £9.95 |
*price indicative
- RS Stock No.:
- 213-4191
- Distrelec Article No.:
- 301-85-924
- Mfr. Part No.:
- ITU0312S12
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 4.5 → 18 V dc | |
| Power Rating | 3W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | 250mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | DIP | |
| Isolation Voltage | 1.6kV | |
| Width | 14mm | |
| Length | 14mm | |
| Series | ITU03 | |
| Load Regulation | 0.01 | |
| Maximum Temperature | +80°C | |
| Efficiency | 0.83 | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 12V dc | ||
Input Voltage Range 4.5 → 18 V dc | ||
Power Rating 3W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 250mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package DIP | ||
Isolation Voltage 1.6kV | ||
Width 14mm | ||
Length 14mm | ||
Series ITU03 | ||
Load Regulation 0.01 | ||
Maximum Temperature +80°C | ||
Efficiency 0.83 | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- TW
The XP Power ITU series offers a 3W power and has compact package. It has efficiency of 83 %. It is cost effective DC-DC module with a practical range of input voltages and output voltages.
Industrial temperature range
Robust encapsulated construction
Short circuit protection
3 year warranty
