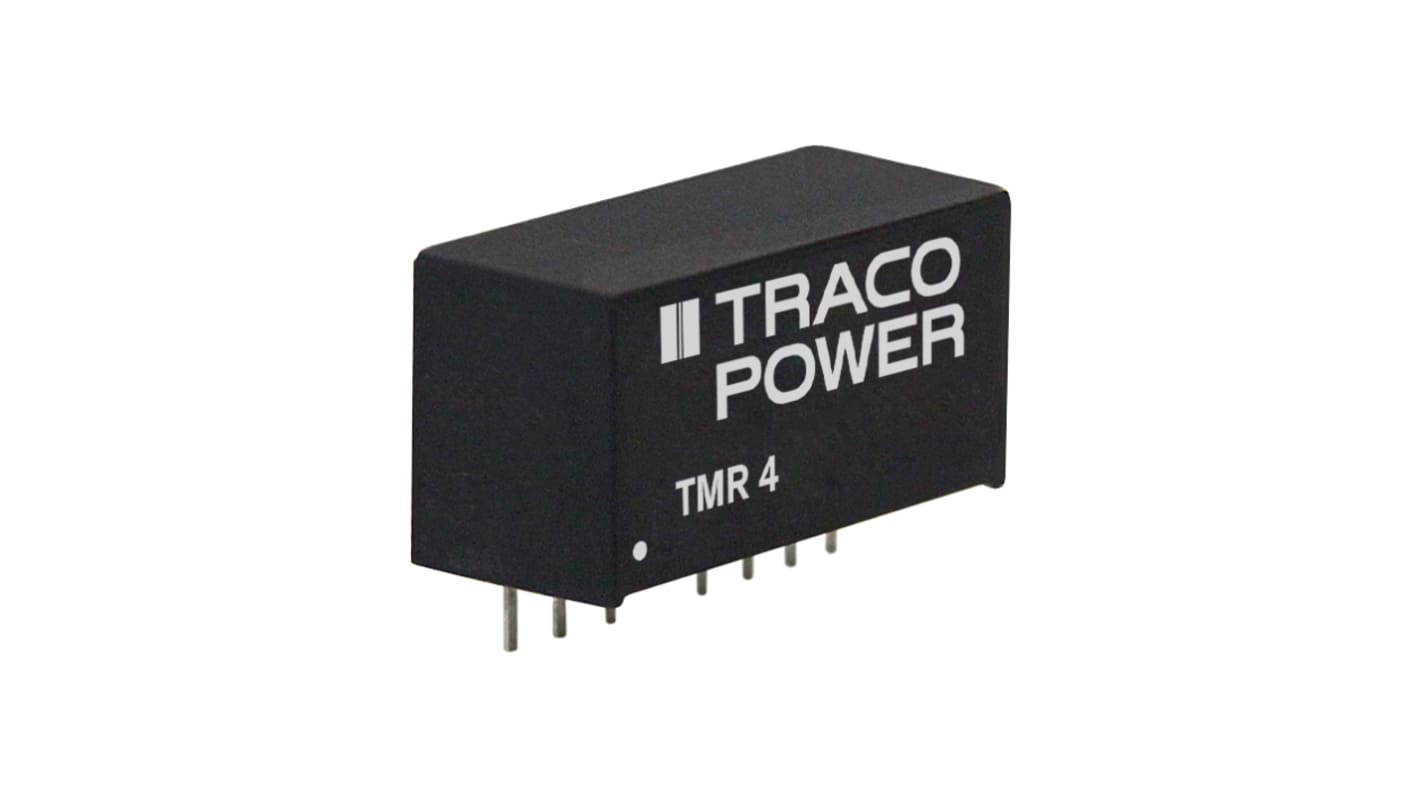

TRACOPOWER TMR 4 DC-DC Converter, ± 12V dc/ 166mA Output, 18 → 36 V dc Input, 4W, Through Hole, +75°C Max Temp
- RS Stock No.:
- 209-9821
- Mfr. Part No.:
- TMR 4-2422
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£129.88
(exc. VAT)
£155.86
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 11 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £129.88 | £12.988 |
| 5 - 9 | £125.98 | £12.598 |
| 10 - 24 | £122.09 | £12.209 |
| 25 - 49 | £116.89 | £11.689 |
| 50 + | £111.69 | £11.169 |
*price indicative
- RS Stock No.:
- 209-9821
- Mfr. Part No.:
- TMR 4-2422
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ± 12V dc | |
| Input Voltage Range | 18 → 36 V dc | |
| Power Rating | 4W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 166mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Output Voltage Adjustment Range | 12V dc | |
| Package | SIP 8 | |
| Isolation Voltage | 1.6kV | |
| Width | 9.3mm | |
| Depth | 11.2mm | |
| Length | 21.8mm | |
| Series | TMR 4 | |
| Load Regulation | 0.01 | |
| Efficiency | 0.86 | |
| Medical Approved | Yes | |
| Minimum Temperature | -40°C | |
| Standards Met | IEC/EN 62368-1 | |
| Maximum Temperature | +75°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ± 12V dc | ||
Input Voltage Range 18 → 36 V dc | ||
Power Rating 4W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 166mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Output Voltage Adjustment Range 12V dc | ||
Package SIP 8 | ||
Isolation Voltage 1.6kV | ||
Width 9.3mm | ||
Depth 11.2mm | ||
Length 21.8mm | ||
Series TMR 4 | ||
Load Regulation 0.01 | ||
Efficiency 0.86 | ||
Medical Approved Yes | ||
Minimum Temperature -40°C | ||
Standards Met IEC/EN 62368-1 | ||
Maximum Temperature +75°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW
The TRACOPOWER TMR 4 is a regulated 4 Watt DC/DC converter series with 2:1 input voltage range. It comes in a compact SIP-8 package featuring single and dual output models, I/O isolation voltage of 1600 VDC and protection against short-circuit and over load. Being a 4 Watt converter this series acts as an excellent gap closer between the more common 3 & 6 Watt converters. It offers a cost-efficient alternative to 5 and 6 Watt converters in applications where a 3 Watt converter would operate at the absolute technical limits (e.g. output power).
Compact SIP-8 package
Wide 2:1 input voltage range
Temperature range –40° to +70°C without derating
High efficiency up to 87%
I/O isolation 1600 VDC
Protection against short-circuit and over load
Fully regulated outputs
Remote On/Off control
3-year product warranty
Wide 2:1 input voltage range
Temperature range –40° to +70°C without derating
High efficiency up to 87%
I/O isolation 1600 VDC
Protection against short-circuit and over load
Fully regulated outputs
Remote On/Off control
3-year product warranty
