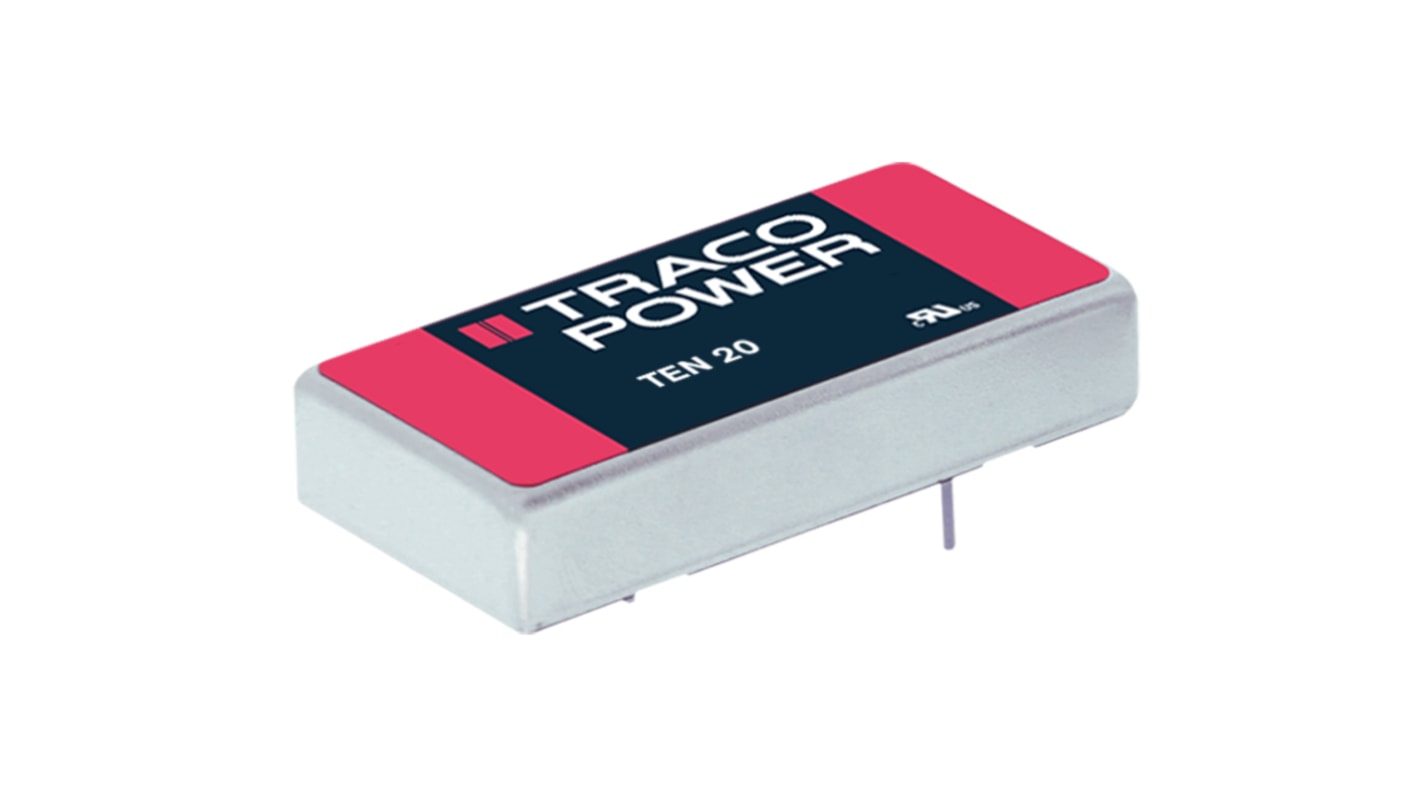

TRACOPOWER TEN 20 DC-DC Converter, 15V dc/ 1.3A Output, 18 → 36 V dc Input, 20W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 200-8501
- Mfr. Part No.:
- TEN 20-2413
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£522.80
(exc. VAT)
£627.36
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £522.80 | £52.28 |
| 5 - 9 | £507.10 | £50.71 |
| 10 - 24 | £491.42 | £49.142 |
| 25 - 49 | £470.51 | £47.051 |
| 50 + | £449.59 | £44.959 |
*price indicative
- RS Stock No.:
- 200-8501
- Mfr. Part No.:
- TEN 20-2413
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 15V dc | |
| Input Voltage Range | 18 → 36 V dc | |
| Power Rating | 20W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 1.3A | |
| Mounting Type | Through Hole | |
| Package | DIP | |
| Isolation Voltage | 1.5kV dc | |
| Width | 50.8mm | |
| Depth | 10.2mm | |
| Length | 25.4mm | |
| Series | TEN 20 | |
| Railway Approved | No | |
| Load Regulation | 0.005 | |
| Maximum Temperature | +85°C | |
| Medical Approved | No | |
| Efficiency | 0.89 | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 15V dc | ||
Input Voltage Range 18 → 36 V dc | ||
Power Rating 20W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 1.3A | ||
Mounting Type Through Hole | ||
Package DIP | ||
Isolation Voltage 1.5kV dc | ||
Width 50.8mm | ||
Depth 10.2mm | ||
Length 25.4mm | ||
Series TEN 20 | ||
Railway Approved No | ||
Load Regulation 0.005 | ||
Maximum Temperature +85°C | ||
Medical Approved No | ||
Efficiency 0.89 | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- TW
The Traco TEN 20-2413 is a isolated DC/DC converter that has been designed for a wide range of applications including communications, industrial systems and battery powered equipment. Full SMD-design with use of ceramic chip capacitors guarantees a high reliability and a long lifetime.
Operating temperature range -40°C to + 85°C
Input filter to meet EN 55022 class A
Provides Remote On/Off functionality
Input filter to meet EN 55022 class A
Provides Remote On/Off functionality
