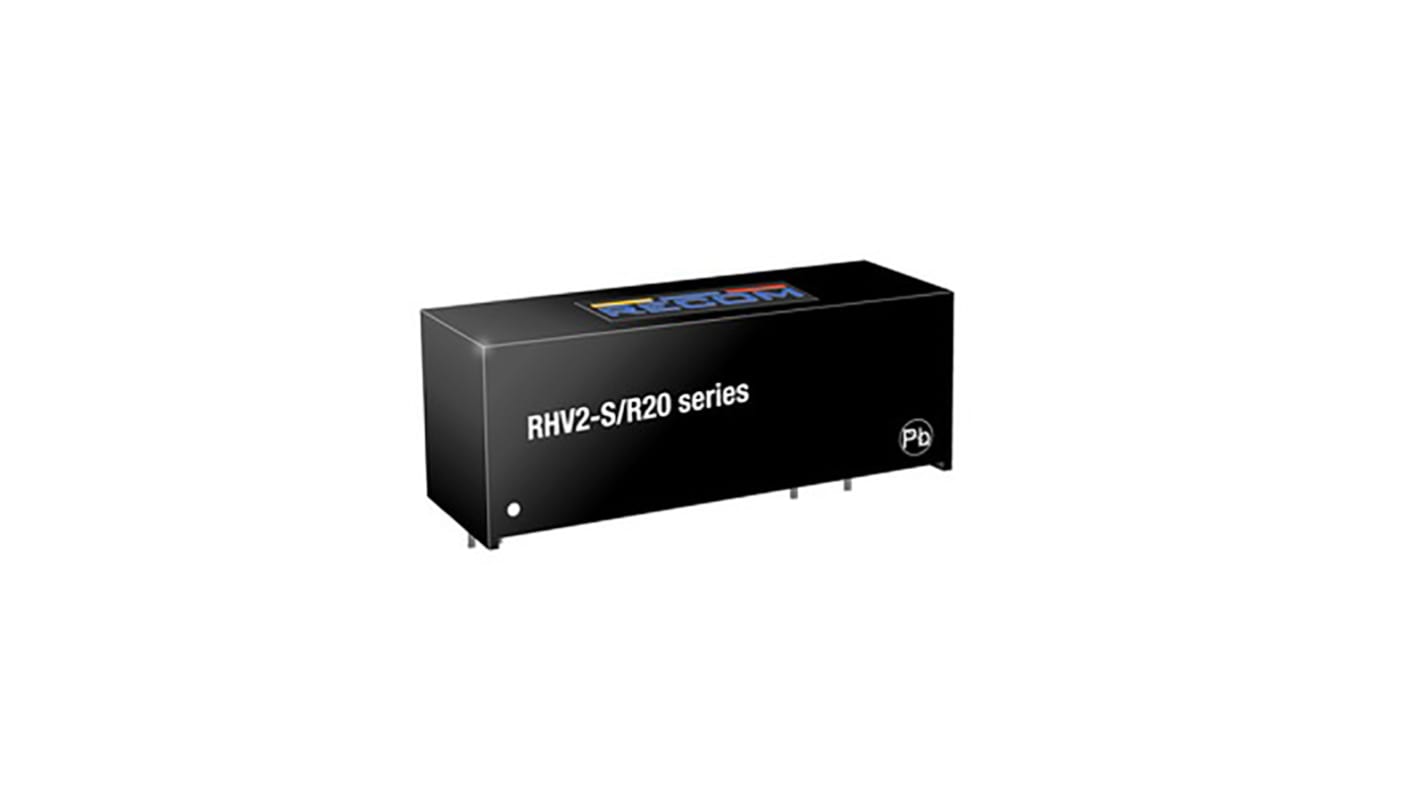

Recom RHV2 DC-DC Converter, 24V dc/ 84mA Output, 5 → 24 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C Min
- RS Stock No.:
- 199-5106
- Mfr. Part No.:
- RHV2-2424S/R20
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£19.42
(exc. VAT)
£23.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 11 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £19.42 |
5 - 9 | £18.83 |
10 - 24 | £18.25 |
25 - 49 | £17.66 |
50 + | £17.08 |
*price indicative
- RS Stock No.:
- 199-5106
- Mfr. Part No.:
- RHV2-2424S/R20
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Recom | |
Output Voltage | 24V dc | |
Input Voltage Range | 5 → 24 V dc | |
Power Rating | 2W | |
Input Voltage Nominal | 24 V dc | |
Output Current | 84mA | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Package | SIP 16 | |
Isolation Voltage | 20kV | |
Depth | 17mm | |
Width | 15mm | |
Length | 45mm | |
Series | RHV2 | |
Load Regulation | 0.1 | |
Efficiency | 0.78 | |
Standards Met | REACH Compliant | |
Minimum Temperature | -40°C | |
Maximum Temperature | +85°C | |
Select all | ||
---|---|---|
Brand Recom | ||
Output Voltage 24V dc | ||
Input Voltage Range 5 → 24 V dc | ||
Power Rating 2W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 84mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP 16 | ||
Isolation Voltage 20kV | ||
Depth 17mm | ||
Width 15mm | ||
Length 45mm | ||
Series RHV2 | ||
Load Regulation 0.1 | ||
Efficiency 0.78 | ||
Standards Met REACH Compliant | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- TW
RECOM DC-DC Converter, 200mV Pk-Pk Ripple and Noise, 20kV Isolation Voltage - RHV2 series - RHV2-2424S/R20
Keep your people and your kit safe using this isolated DC-DC converter from RECOM. It takes an input of 5 to 24V DC and outputs a steady 24V DC supply. This prevents voltage spikes from the input affecting the load. Thanks to a very high isolation of 20kV DC, it's suitable for use with high-voltage industrial applications. An operating temperature range of 40°C to +85°C means this converter is well suited to use in harsh industrial environments.
Features & Benefits
• Unregulated converter provides a constant amount of power
• Load regulation of 0.1 and line regulation of 0.012, with ripple and noise of 200 mV Pk-Pk, gives you a steady supply
• Compact SiP package measures 45 (L) x 15mm (W)
• Through-hole mounting style achieves a robust connection with your PCB
• Load regulation of 0.1 and line regulation of 0.012, with ripple and noise of 200 mV Pk-Pk, gives you a steady supply
• Compact SiP package measures 45 (L) x 15mm (W)
• Through-hole mounting style achieves a robust connection with your PCB
Applications
• X-ray equipment
• HVAC dust-extraction systems
• High vacuum monitoring
• HVAC dust-extraction systems
• High vacuum monitoring
What's a SiP?
A SiP, or system-in-package, stacks several integrated circuits on top of each other. This enables designers to fit complex systems into a small footprint, saving you space when building your installation.
