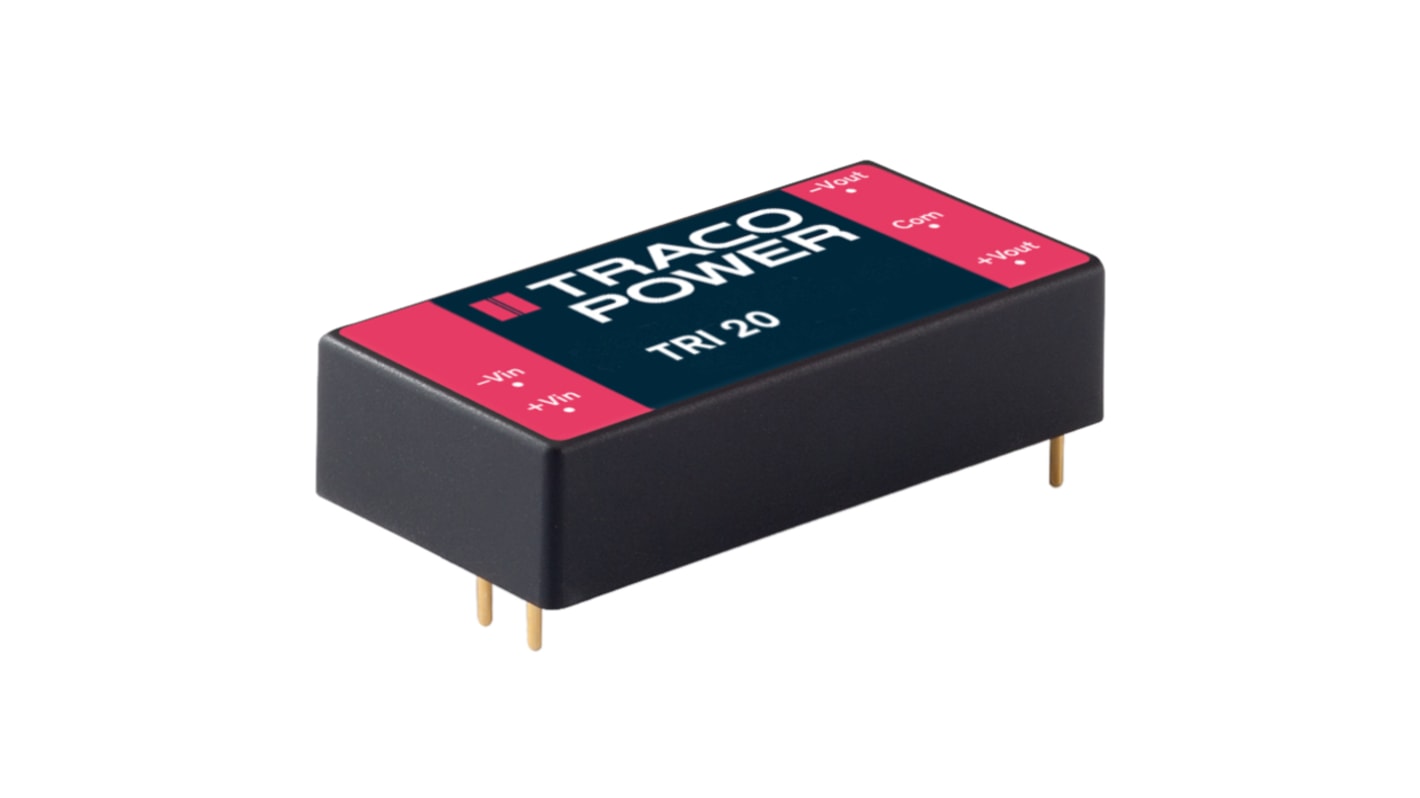

TRACOPOWER TRI 20 DC-DC Converter, ±12V dc/ 840mA Output, 9 → 18 V dc Input, 20W, Through Hole, +76°C Max Temp
- RS Stock No.:
- 189-4992
- Mfr. Part No.:
- TRI 20-1222
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£667.25
(exc. VAT)
£800.70
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £667.25 | £66.725 |
| 5 - 9 | £647.24 | £64.724 |
| 10 - 24 | £627.23 | £62.723 |
| 25 - 49 | £600.53 | £60.053 |
| 50 + | £573.84 | £57.384 |
*price indicative
- RS Stock No.:
- 189-4992
- Mfr. Part No.:
- TRI 20-1222
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±12V dc | |
| Input Voltage Range | 9 → 18 V dc | |
| Power Rating | 20W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | 840mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Isolation Voltage | 5.94kV dc | |
| Depth | 12mm | |
| Length | 50.8mm | |
| Width | 25.4mm | |
| Series | TRI 20 | |
| Load Regulation | 0.01 | |
| Efficiency | 89% | |
| Maximum Temperature | +76°C | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±12V dc | ||
Input Voltage Range 9 → 18 V dc | ||
Power Rating 20W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 840mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Isolation Voltage 5.94kV dc | ||
Depth 12mm | ||
Length 50.8mm | ||
Width 25.4mm | ||
Series TRI 20 | ||
Load Regulation 0.01 | ||
Efficiency 89% | ||
Maximum Temperature +76°C | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- TW
Reinforced I/O-isolation 4200 VAC rated for 1000 VAC working voltage
Ultra-high isolation peak voltage 8000 VDC (1s)
Common Mode Transient Immunity (dv/dt) 15 kV/μs
Operating temperature range -40 to +76°C
Low no-load power consumption 240 – 480 mW
High efficiency up to 90%
2:1 input voltage range: 9-18, 18-36, 36-75 VDC
Protection against overload, overvoltage and short circuit
3-year product warranty
Ultra-high isolation peak voltage 8000 VDC (1s)
Common Mode Transient Immunity (dv/dt) 15 kV/μs
Operating temperature range -40 to +76°C
Low no-load power consumption 240 – 480 mW
High efficiency up to 90%
2:1 input voltage range: 9-18, 18-36, 36-75 VDC
Protection against overload, overvoltage and short circuit
3-year product warranty
