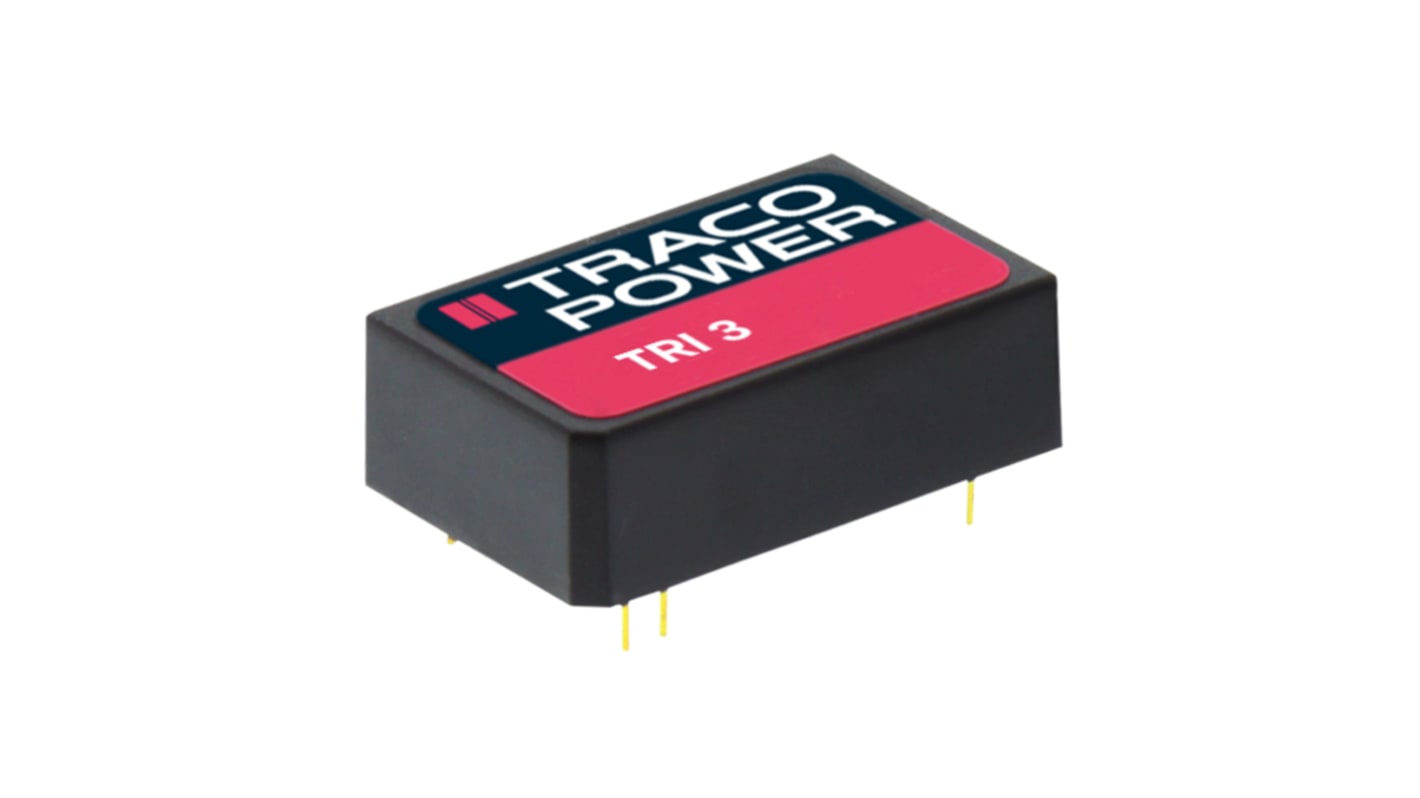

TRACOPOWER TRI 3 DC-DC Converter, 15V dc/ 235mA Output, 4.5 → 9 V dc Input, 3.5W, Through Hole, +96°C Max Temp
- RS Stock No.:
- 189-4906
- Mfr. Part No.:
- TRI 3-0513
- Brand:
- TRACOPOWER
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 189-4906
- Mfr. Part No.:
- TRI 3-0513
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 15V dc | |
| Input Voltage Range | 4.5 → 9 V dc | |
| Power Rating | 3.5W | |
| Input Voltage Nominal | 5 V dc | |
| Output Current | 235mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | DIP-24 | |
| Isolation Voltage | 7kV dc | |
| Length | 31.8mm | |
| Depth | 12mm | |
| Width | 20.3mm | |
| Series | TRI 3 | |
| Load Regulation | 0.005 | |
| Efficiency | 84% | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +96°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 15V dc | ||
Input Voltage Range 4.5 → 9 V dc | ||
Power Rating 3.5W | ||
Input Voltage Nominal 5 V dc | ||
Output Current 235mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package DIP-24 | ||
Isolation Voltage 7kV dc | ||
Length 31.8mm | ||
Depth 12mm | ||
Width 20.3mm | ||
Series TRI 3 | ||
Load Regulation 0.005 | ||
Efficiency 84% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +96°C | ||
