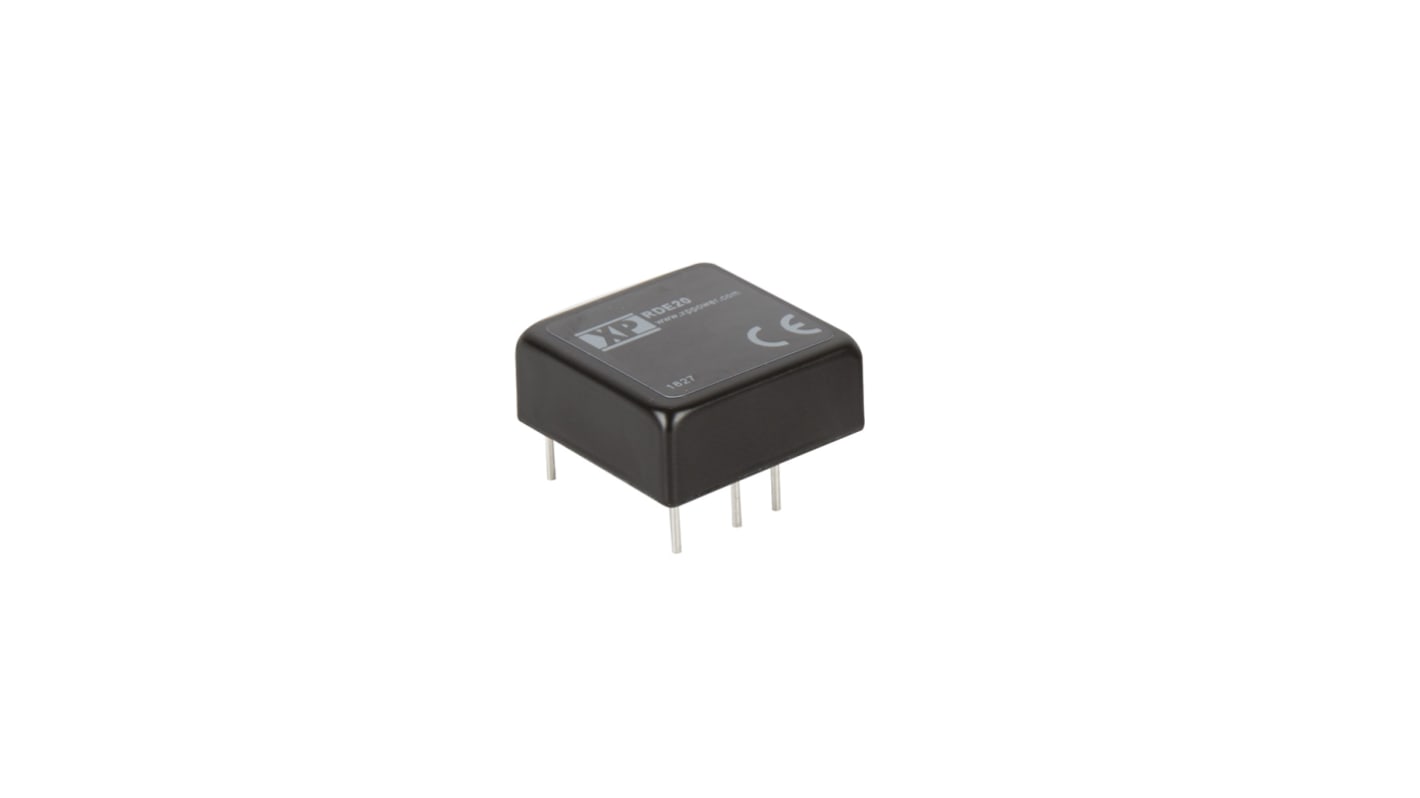

XP Power RDE20 DC-DC Converter, ±15V dc/ ±666mA Output, 42 → 176 V dc Input, 20W, Through Hole, +100°C Max Temp

RS Stock No.:: 186-2867
Mfr. Part No.:: RDE20110D15
Brand:: XP Power

XP Power RDE20 DC-DC Converter, ±15V dc/ ±666mA Output, 42 → 176 V dc Input, 20W, Through Hole, +100°C Max Temp

Available to back order for despatch 11/11/2024

Price 1 Tube of 10

£428.85

(exc. VAT)

£514.62

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 - 4	£428.85	£42.885
5 - 9	£415.98	£41.598
10 - 24	£403.12	£40.312
25 - 49	£390.25	£39.025
50 +	£377.39	£37.739

*price indicative

RS Stock No.:: 186-2867
Mfr. Part No.:: RDE20110D15
Brand:: XP Power

Technical Reference

Datasheet RDE20110D15

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

The RDE20 series provides a comprehensive wide DC input voltage range. The product features a robust design and includes a remote on /off function, output voltage trimming, protection against shortcircuit, undervoltage lockout, overload and overvoltage.

Regulated Single & Dual Output
24-48 VDC & 72-110 VDC nominal inputs for Railway Applications
3000 VDC Isolation
High Efficiency
Remote On/Off
Output Voltage Trim ±10%
Operating Temperature -40 °C to +100 °C
Full Power to +55 °C
3 Year Warranty

Specifications

Attribute	Value
Output Voltage	±15V dc
Input Voltage Range	42 → 176 V dc
Power Rating	20W
Input Voltage Nominal	72 → 110 V dc
Output Current	±666mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Isolation Voltage	3kV dc
Length	25.4mm
Width	25.4mm
Depth	10.41mm
Railway Approved	Yes
Series	RDE20
Load Regulation	±1%
Efficiency	87%
Minimum Temperature	-40°C
Maximum Temperature	+100°C
