Recom REM2 DC-DC Converter, ±5V dc/ ±200mA Output, 4.5 → 5.5 V dc Input, 2W, Through Hole, +95°C Max Temp -40°C
- RS Stock No.:
- 185-5400
- Mfr. Part No.:
- REM2-0505D
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 20 units)*
£383.91
(exc. VAT)
£460.69
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £383.91 | £19.196 |
| 5 - 9 | £372.39 | £18.62 |
| 10 - 24 | £360.87 | £18.044 |
| 25 - 49 | £349.36 | £17.468 |
| 50 + | £337.84 | £16.892 |
*price indicative
- RS Stock No.:
- 185-5400
- Mfr. Part No.:
- REM2-0505D
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | ±5V dc | |
| Input Voltage Range | 4.5 → 5.5 V dc | |
| Power Rating | 2W | |
| Input Voltage Nominal | 5 V dc | |
| Output Current | ±200mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | SIP | |
| Isolation Voltage | 5.2kV dc | |
| Depth | 12.2mm | |
| Width | 8mm | |
| Length | 23mm | |
| Series | REM2 | |
| Load Regulation | 0.15 | |
| Standards Met | 2MOPP, ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No.60601-1:14, CB, cURus, EN55011, EN60601-1-2, IEC/EN60601-1, IEC/EN62368-1 | |
| Maximum Temperature | +95°C | |
| Efficiency | 82% | |
| Medical Approved | Yes | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage ±5V dc | ||
Input Voltage Range 4.5 → 5.5 V dc | ||
Power Rating 2W | ||
Input Voltage Nominal 5 V dc | ||
Output Current ±200mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package SIP | ||
Isolation Voltage 5.2kV dc | ||
Depth 12.2mm | ||
Width 8mm | ||
Length 23mm | ||
Series REM2 | ||
Load Regulation 0.15 | ||
Standards Met 2MOPP, ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No.60601-1:14, CB, cURus, EN55011, EN60601-1-2, IEC/EN60601-1, IEC/EN62368-1 | ||
Maximum Temperature +95°C | ||
Efficiency 82% | ||
Medical Approved Yes | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- TW

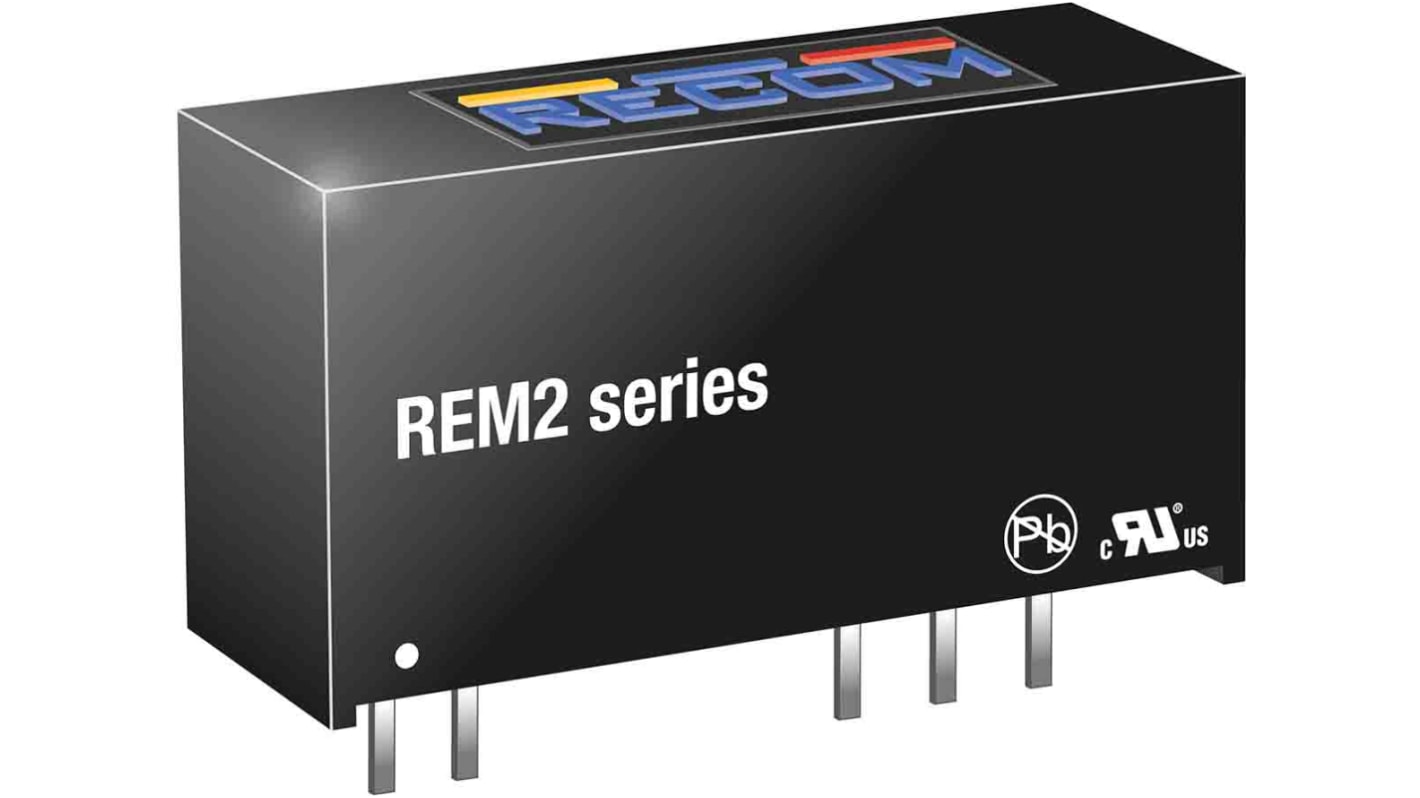

RECOM DC-DC Converter, ±1.2% Line Regulation, 82% Efficiency - REM2 Series - REM2-0505D
When device safety is at the top of the priority list, choose this medical-grade RECOM DC-DC converter. The unit takes incoming feeds between 4.5 and 5.5V DC and converts them to a steady ±5V DC supply to keep your low-voltage devices running. Reinforced 5.2kV DC isolation safeguards users against electric shocks when they're in direct contact with the application. As it measures just 23 (L) x 8 (W) x 12.2mm (D), it's easy to squeeze this converter onto a crowded PCB.
Features & Benefits
• ±1.2% line regulation assures you the unit maintains a steady output despite changes in input voltages
• ESD-safe unit prevents interference caused by electrostatic discharge from nearby devices
• Through-hole mounting style for fast and easy installation
• ESD-safe unit prevents interference caused by electrostatic discharge from nearby devices
• Through-hole mounting style for fast and easy installation
Applications
• Medical imaging equipment
• Industrial control installations
• Testing and measuring devices
• Industrial control installations
• Testing and measuring devices
What temperatures can I use this converter in?
At full load, this converter performs without a hiccup at temperatures between -40°C and +80°C. At 50% load, it can handle the heat right up to +95°C.
What does 'medical grade' mean for DC-DC converters?
A medical-grade device like this one incorporates safety features that prevent injury when it's in contact with patients. It must be fully tested to meet strict regulations.
