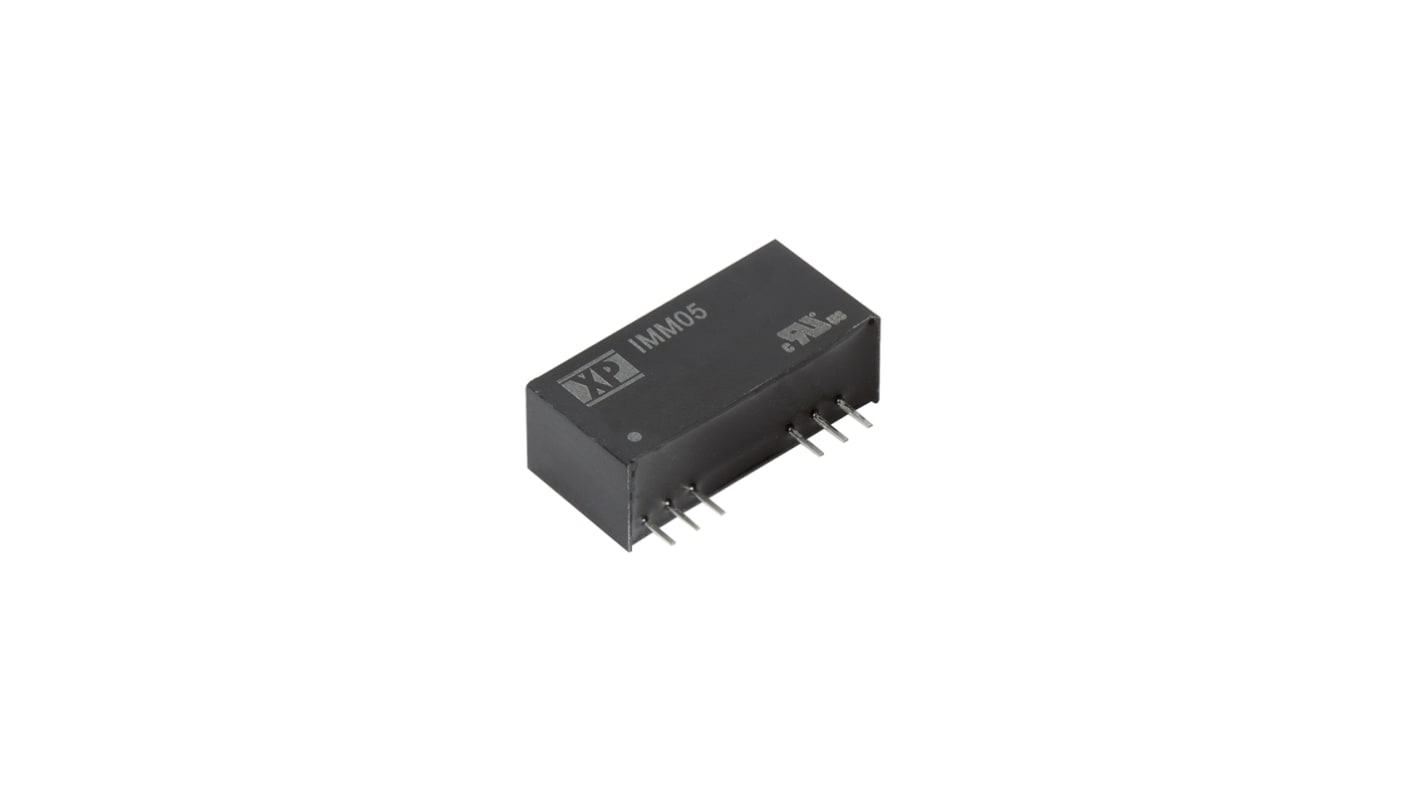

XP Power IMM05 DC-DC Converter, ±15V dc/ ±166mA Output, 9 → 18 V dc Input, 5W, Through Hole, +100°C Max Temp

RS Stock No.:: 183-3926
Mfr. Part No.:: IMM0512D15
Brand:: XP Power

XP Power IMM05 DC-DC Converter, ±15V dc/ ±166mA Output, 9 → 18 V dc Input, 5W, Through Hole, +100°C Max Temp

Available to back order for despatch 22/10/2024

Price 1 Tube of 10

£187.08

(exc. VAT)

£224.50

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 - 4	£187.08	£18.708
5 - 9	£181.47	£18.147
10 - 24	£175.86	£17.586
25 - 49	£170.24	£17.024
50 +	£164.63	£16.463
*price indicative

RS Stock No.:: 183-3926
Mfr. Part No.:: IMM0512D15
Brand:: XP Power

Datasheet IMM0512D15

RS Stock No.:: 183-3926
Mfr. Part No.:: IMM0512D15
Brand:: XP Power

Datasheet IMM0512D15

Attribute	Value
Output Voltage	±15V dc
Input Voltage Range	9 → 18 V dc
Power Rating	5W
Input Voltage Nominal	12 V dc
Output Current	±166mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	SIP 9
Isolation Voltage	1.5kV dc
Depth	12.5mm
Length	26mm
Width	9.3mm
Series	IMM05
Load Regulation	±2%
Standards Met	CB IEC/EN60601-1, CSA C22.2 No. 60601-1, EN55011, EN60601-1-2, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, TUV EN60601-1, UL ANSI/AMMI ES60601-1
Maximum Temperature	+100°C
Efficiency	82%
Minimum Temperature	-20°C
Medical Approved	Yes

Attribute	Value
Output Voltage	±15V dc
Input Voltage Range	9 → 18 V dc
Power Rating	5W
Input Voltage Nominal	12 V dc
Output Current	±166mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	SIP 9
Isolation Voltage	1.5kV dc
Depth	12.5mm
Length	26mm
Width	9.3mm
Series	IMM05
Load Regulation	±2%
Standards Met	CB IEC/EN60601-1, CSA C22.2 No. 60601-1, EN55011, EN60601-1-2, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, TUV EN60601-1, UL ANSI/AMMI ES60601-1
Maximum Temperature	+100°C
Efficiency	82%
Minimum Temperature	-20°C
Medical Approved	Yes

XP Power IMM05 DC-DC Converter, ±15V dc/ ±166mA Output, 9 → 18 V dc Input, 5W, Through Hole, +100°C Max Temp
