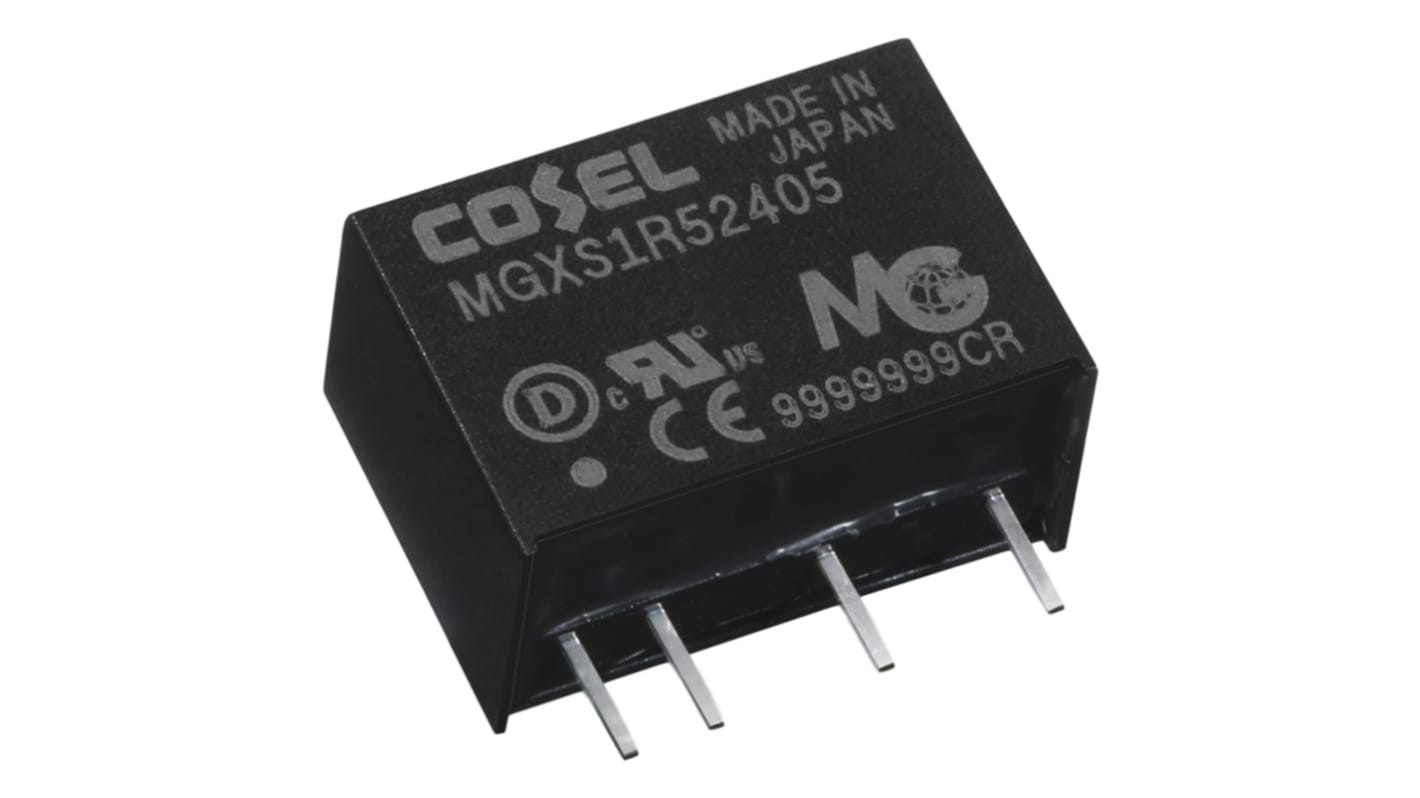

Cosel MGXS1R5 DC-DC Converter, 15V dc/ 100mA Output, 6 → 60 V dc Input, 1.5W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 183-0620
- Mfr. Part No.:
- MGXS1R52415
- Brand:
- Cosel
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 183-0620
- Mfr. Part No.:
- MGXS1R52415
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Output Voltage | 15V dc | |
| Input Voltage Range | 6 → 60 V dc | |
| Power Rating | 1.5W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 100mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Isolation Voltage | 1kV dc | |
| Width | 8.5mm | |
| Depth | 12mm | |
| Length | 17mm | |
| Series | MGXS1R5 | |
| Load Regulation | 60mV | |
| Maximum Temperature | +85°C | |
| Standards Met | CE Certified, cRLus Recognized, C-UL, EN60950-1, UL60950-1 | |
| Efficiency | 82% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Cosel | ||
Output Voltage 15V dc | ||
Input Voltage Range 6 → 60 V dc | ||
Power Rating 1.5W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 100mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Isolation Voltage 1kV dc | ||
Width 8.5mm | ||
Depth 12mm | ||
Length 17mm | ||
Series MGXS1R5 | ||
Load Regulation 60mV | ||
Maximum Temperature +85°C | ||
Standards Met CE Certified, cRLus Recognized, C-UL, EN60950-1, UL60950-1 | ||
Efficiency 82% | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- JP
SIP6 (MGXS1R5)
Ultra wide input range (MGXS) DC6 - 60V
I/O isolation voltage DC1,500V (1 minute)
Built-in overcurrent protection circuits (recovers automatically)
High reliability : not built-in aluminum and tantalum electrolytic capacitor
Ultra wide input range (MGXS) DC6 - 60V
I/O isolation voltage DC1,500V (1 minute)
Built-in overcurrent protection circuits (recovers automatically)
High reliability : not built-in aluminum and tantalum electrolytic capacitor
