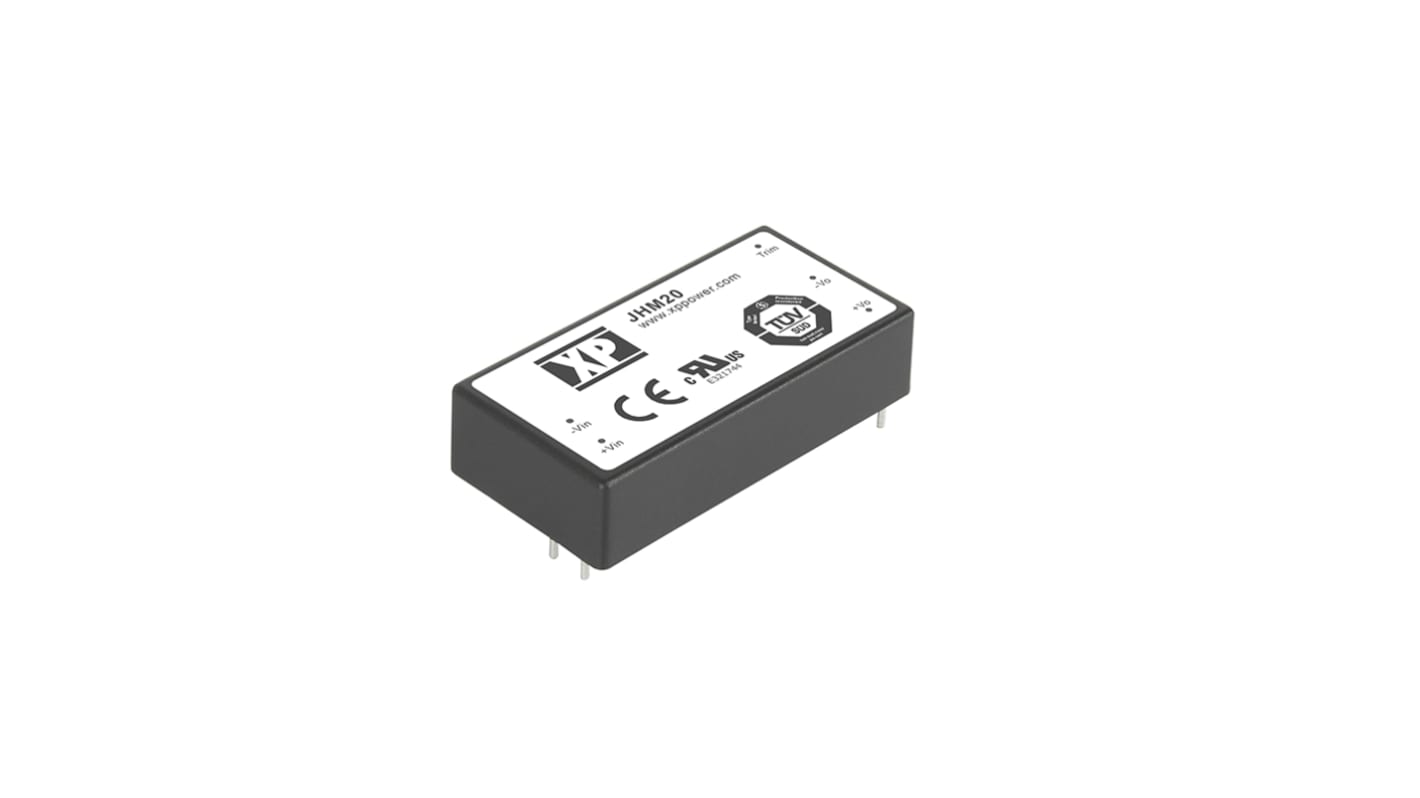

XP Power JHM20 DC/DC Converter, 12V dc/ 1670 mA, 18V dc Input, 9V Input 20 W, Through Hole, 80 °C Max Temp -40 °C Min

View all DC-DC Converters
Unavailable
RS will no longer stock this product.
RS Stock No.:
177-4609
Mfr. Part No.:
JHM2012S12
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage 1

12V dc

Product Type

DC/DC Converter

Minimum Input Voltage

9V

Maximum Input Voltage

18V dc

Output Current 1

1670mA

Mount Type

Through Hole

Number of Outputs

1

Output Voltage Adjustment Range

±10 %

Isolation Voltage

4kV dc

Package Type

1 x 1.6 in

Maximum Output Power

20W

Series

JHM20

Standards/Approvals

No

Depth

10.2mm

Width

25.4mm

Length

50.8mm

Maximum Operating Temperature

80°C

Minimum Operating Temperature

-40°C

Efficiency

88%

COO (Country of Origin):
CN
4004 VAC Reinforced Insulation

2 x MOPP at 250 VAC Working Voltage

2.5 μA Patient Leakage Current

Compact 1 x 2” Footprint

3 Year Warranty
