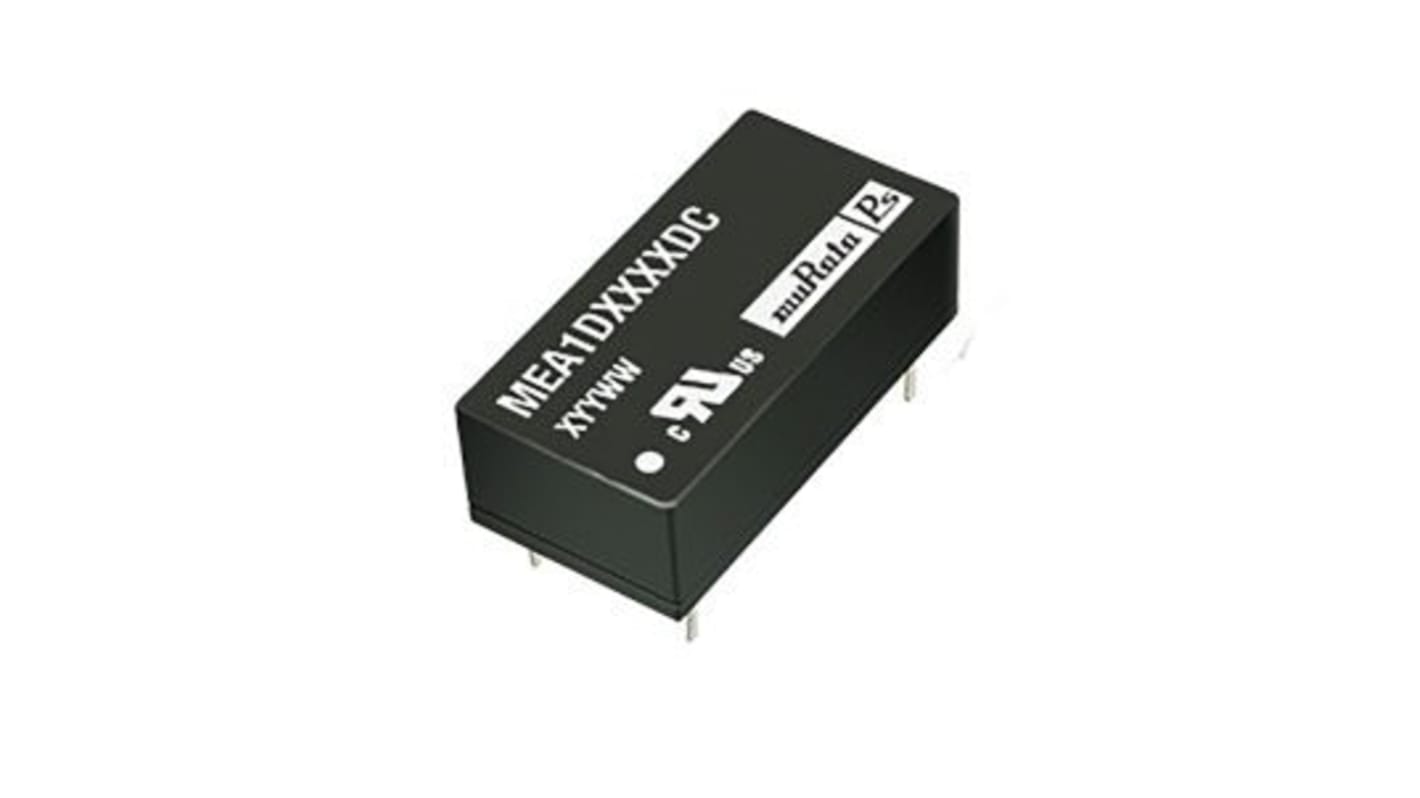

Murata Power Solutions MEA1 DC/DC Converter, 5V, -5 V/ 42 mA, 24V dc Input, 24V dc Input 1 W, Through Hole, 85 °C Max

RS Stock No.:: 167-6090
Mfr. Part No.:: MEA1D2415DC
Brand:: Murata Power Solutions

Murata Power Solutions MEA1 DC/DC Converter, 5V, -5 V/ 42 mA, 24V dc Input, 24V dc Input 1 W, Through Hole, 85 °C Max

Subtotal (1 tube of 25 units)*

£92.74

(exc. VAT)

£111.29

(inc. VAT)

Stock information currently inaccessible - Please check back later

Tube(s)	Per Tube	Per unit*
1 +	£92.74	£3.71

*price indicative

RS Stock No.:: 167-6090
Mfr. Part No.:: MEA1D2415DC
Brand:: Murata Power Solutions

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Murata Power Solutions
	Output Voltage 1	5, -5V
	Product Type	DC/DC Converter
	Maximum Input Voltage	24V dc
	Minimum Input Voltage	24V dc
	Output Current 1	42mA
	Output Current 2	33mA
	Output Voltage 2	15V dc
	Mount Type	Through Hole
	Number of Outputs	2
	Ripple and Noise	6mV Pk-Pk
	Number of Pins	6
	Isolation Voltage	1kV dc
	Package Type	Tube
	Maximum Output Power	1W
	Length	19.7mm
	Standards/Approvals	RoHS
	Series	MEA1
	Depth	7mm
	Weight	2.5g
	Width	9.3mm
	Efficiency	88%
	Maximum Operating Temperature	85°C
	Minimum Operating Temperature	-40°C

	Select all
	Brand Murata Power Solutions
	Output Voltage 1 5, -5V
	Product Type DC/DC Converter
	Maximum Input Voltage 24V dc
	Minimum Input Voltage 24V dc
	Output Current 1 42mA
	Output Current 2 33mA
	Output Voltage 2 15V dc
	Mount Type Through Hole
	Number of Outputs 2
	Ripple and Noise 6mV Pk-Pk
	Number of Pins 6
	Isolation Voltage 1kV dc
	Package Type Tube
	Maximum Output Power 1W
	Length 19.7mm
	Standards/Approvals RoHS
	Series MEA1
	Depth 7mm
	Weight 2.5g
	Width 9.3mm
	Efficiency 88%
	Maximum Operating Temperature 85°C
	Minimum Operating Temperature -40°C

COO (Country of Origin):: CN

Murata 1W DIP Dual Output Unregulated Isolated DC-DC Converter - MEA1 Series

1W dual output unregulated DC/DC converters with galvanic isolation to reduce switching noise. These 1W dual output 1 kVDC isolated unregulated DC/DC converters have a wide temperature performance at full load, do not require a heatsink or any external components, have an industry standard pin-out and power sharing on output. All of the rated power may be drawn from a single output providing the total load doesn't exceed 1W. An ideal application for these 1W dual output 1 kVDC isolated unregulated DC/DC converters is the provision of dual rail supplies.

Industry standard pin-out

Heatsink not required

Power sharing on output

Efficiency of up to 89.5 %

Power density to 85W/cm³

Wide temperature performance at full 1W load; -40° to 85°C

Fully encapsulated with toroidal magnetics

No external components required

No electrolytic or tantalum capacitors

UL 94V-0 package material

Murata Power Solutions - DIP

Note

Power derates above 85°C

Approvals

cULus

Standards

UL 60950
