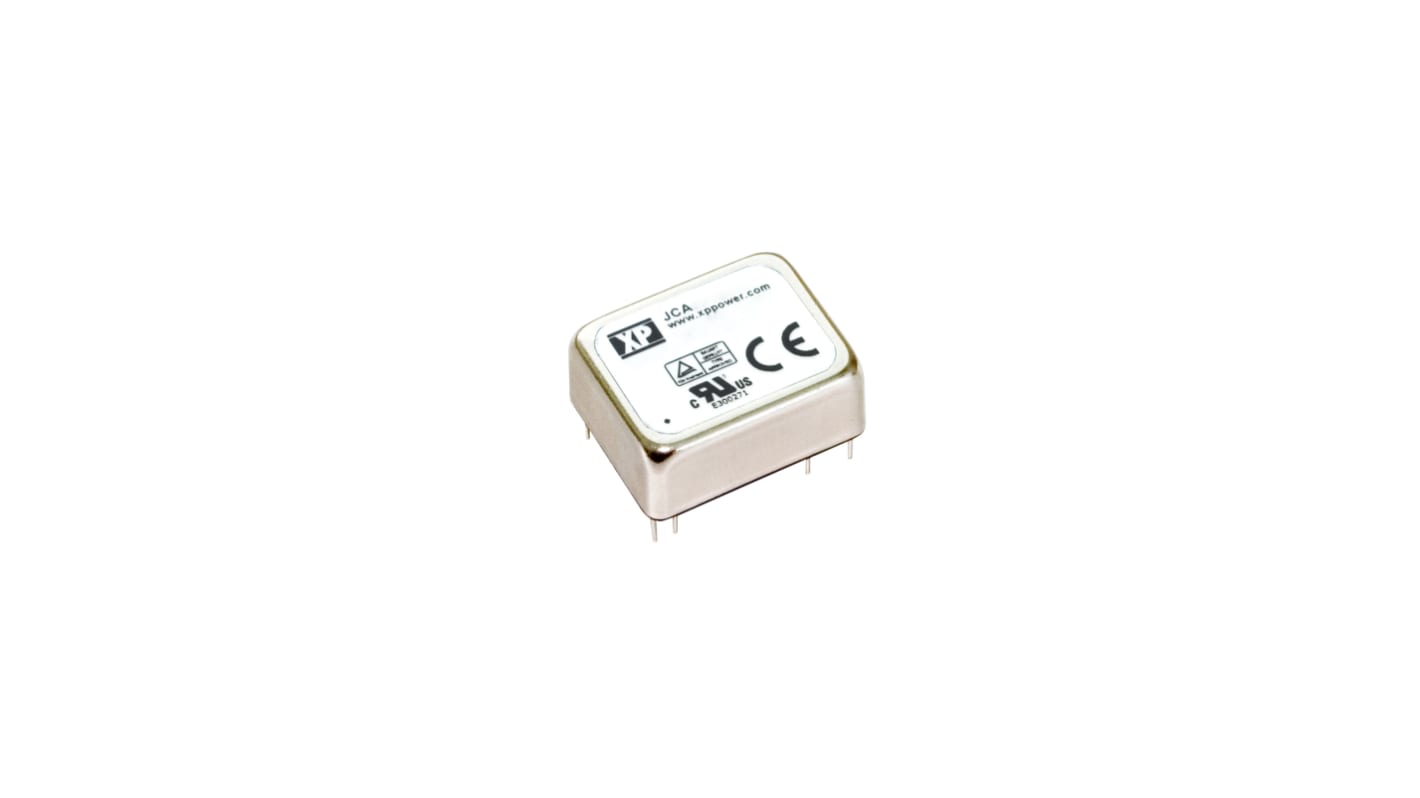

XP Power JCA DC-DC Converter, ±12V dc/ ±85mA Output, 4.5 → 9 V dc Input, 2W, Through Hole, +100°C Max Temp -40°C

RS Stock No.:: 167-3055
Mfr. Part No.:: JCA0205D02
Brand:: XP Power

XP Power JCA DC-DC Converter, ±12V dc/ ±85mA Output, 4.5 → 9 V dc Input, 2W, Through Hole, +100°C Max Temp -40°C

Price 1 Tube of 16

£245.92

(exc. VAT)

£295.10

(inc. VAT)

3 In stock - FREE next working day delivery available

Tube(s)	Per Tube	Per unit*
1 - 4	£245.92	£15.37
5 - 9	£238.54	£14.909
10 - 24	£231.16	£14.448
25 - 49	£223.78	£13.986
50 +	£216.41	£13.526

*price indicative

RS Stock No.:: 167-3055
Mfr. Part No.:: JCA0205D02
Brand:: XP Power

Datasheet

Attribute	Value
Output Voltage	±12V dc
Input Voltage Range	4.5 → 9 V dc
Power Rating	2W
Input Voltage Nominal	5 V dc
Output Current	±85mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	DIP 24
Isolation Voltage	1.5kV dc
Width	20.3mm
Length	25.4mm
Depth	10mm
Series	JCA
Load Regulation	±1%
Efficiency	73%
Minimum Temperature	-40°C
Maximum Temperature	+100°C
Standards Met	CE LVD, CSA C22.2 No. 60950-1-03, EN 55022, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F, TUV, UL, UL 60950-1

XP Power JCA DC-DC Converter, ±12V dc/ ±85mA Output, 4.5 → 9 V dc Input, 2W, Through Hole, +100°C Max Temp -40°C

XP Power - JCA 2/3 Series of DC-DC Converters
