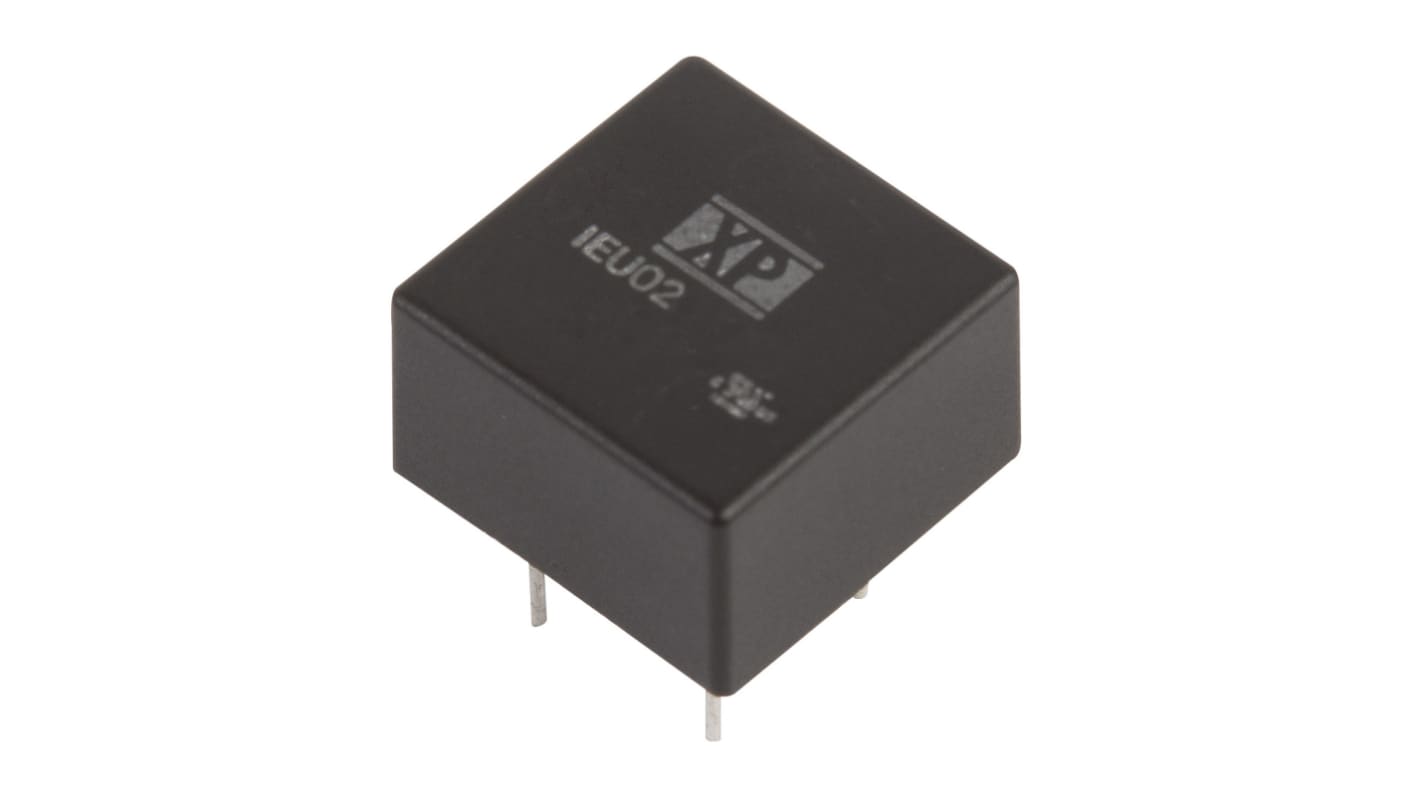

XP Power IEU02 DC-DC Converter, ±15V dc/ ±67mA Output, 36 → 75 V dc Input, 2W, Through Hole, +95°C Max Temp
- RS Stock No.:
- 167-3028
- Mfr. Part No.:
- IEU0248D15
- Brand:
- XP Power
Available to back order for despatch 03/12/2024
Added
Price 1 Tube of 10
£168.76
(exc. VAT)
£202.51
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
1 - 4 | £168.76 | £16.876 |
5 - 9 | £163.70 | £16.37 |
10 - 24 | £158.63 | £15.863 |
25 - 49 | £153.57 | £15.357 |
50 + | £148.51 | £14.851 |
*price indicative |
- RS Stock No.:
- 167-3028
- Mfr. Part No.:
- IEU0248D15
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
XP Power - IEU Series of DC-DC Converters
The IEU series from XP Power offers a highly reliable range of single and dual outputs isolated DC-DC converters. The range features 1000 VDC in isolation and is available in an industry standard SIP or DIP package. These compact DC-DC converters all have a wide operating temperature and are also available in smaller package sizes.
1 W, isolated DC-DC converters
1000 VDC in isolation, 3000 VDC in isolation option available
Single output
-40 °C to +85 °C Operating temperature
Industry standard SIP and DIP packaging
Up to 80% efficiency
Available in smaller packages
1000 VDC in isolation, 3000 VDC in isolation option available
Single output
-40 °C to +85 °C Operating temperature
Industry standard SIP and DIP packaging
Up to 80% efficiency
Available in smaller packages
XP Power - Isolated DC-DC Converters
Specifications
Attribute | Value |
---|---|
Output Voltage | ±15V dc |
Input Voltage Range | 36 → 75 V dc |
Power Rating | 2W |
Input Voltage Nominal | 48 V dc |
Output Current | ±67mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 2 |
Package | DIP 8 |
Isolation Voltage | 1.5kV dc |
Length | 14mm |
Depth | 8mm |
Width | 14mm |
Series | IEU02 |
Load Regulation | ±1% |
Standards Met | EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC60950-1, ITE, UL/cUL60950-1 |
Minimum Temperature | -40°C |
Maximum Temperature | +95°C |
