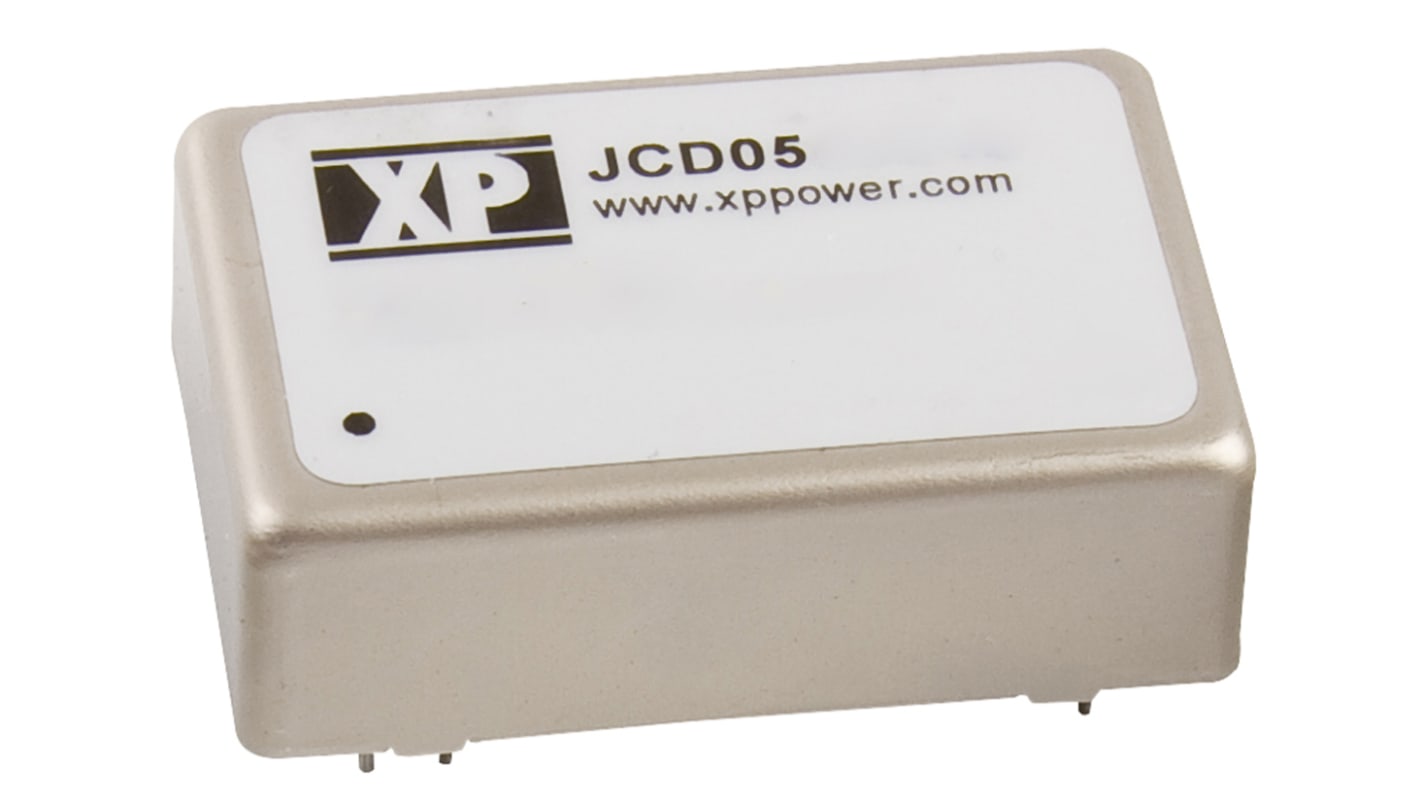

XP Power JCD DC-DC Converter, 3.3V dc/ 1.3A Output, 36 → 72 V dc Input, 5W, Through Hole, +100°C Max Temp -40°C

RS Stock No.:: 167-2949
Mfr. Part No.:: JCD0548S3V3
Brand:: XP Power

XP Power JCD DC-DC Converter, 3.3V dc/ 1.3A Output, 36 → 72 V dc Input, 5W, Through Hole, +100°C Max Temp -40°C

Bulk discount available

Subtotal (1 tube of 10 units)**

£135.64

(exc. VAT)

£162.77

(inc. VAT)

Available to back order for despatch 01/05/2025*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Tube(s)	Per Tube	Per unit**
1 - 4	£135.64	£13.564
5 - 9	£131.57	£13.157
10 - 24	£127.51	£12.751
25 - 49	£123.43	£12.343
50 +	£119.36	£11.936

**price indicative

RS Stock No.:: 167-2949
Mfr. Part No.:: JCD0548S3V3
Brand:: XP Power

Datasheet

Attribute	Value
Output Voltage	3.3V dc
Input Voltage Range	36 → 72 V dc
Power Rating	5W
Input Voltage Nominal	48 V dc
Output Current	1.3A
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Output Voltage Adjustment Range	±1%
Package	DIP 24
Isolation Voltage	1.6kV dc
Depth	10.4mm
Width	20.32mm
Length	31.75mm
Series	JCD
Load Regulation	±0.5%
Standards Met	EN 55022, EN 61000-4-2, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-STD-217F
Maximum Temperature	+100°C
Minimum Temperature	-40°C

XP Power JCD DC-DC Converter, 3.3V dc/ 1.3A Output, 36 → 72 V dc Input, 5W, Through Hole, +100°C Max Temp -40°C

FREE delivery for orders over £50.00

XP Power - JCD Series of 4 W to 6 W Isolated DC-DC Converters
