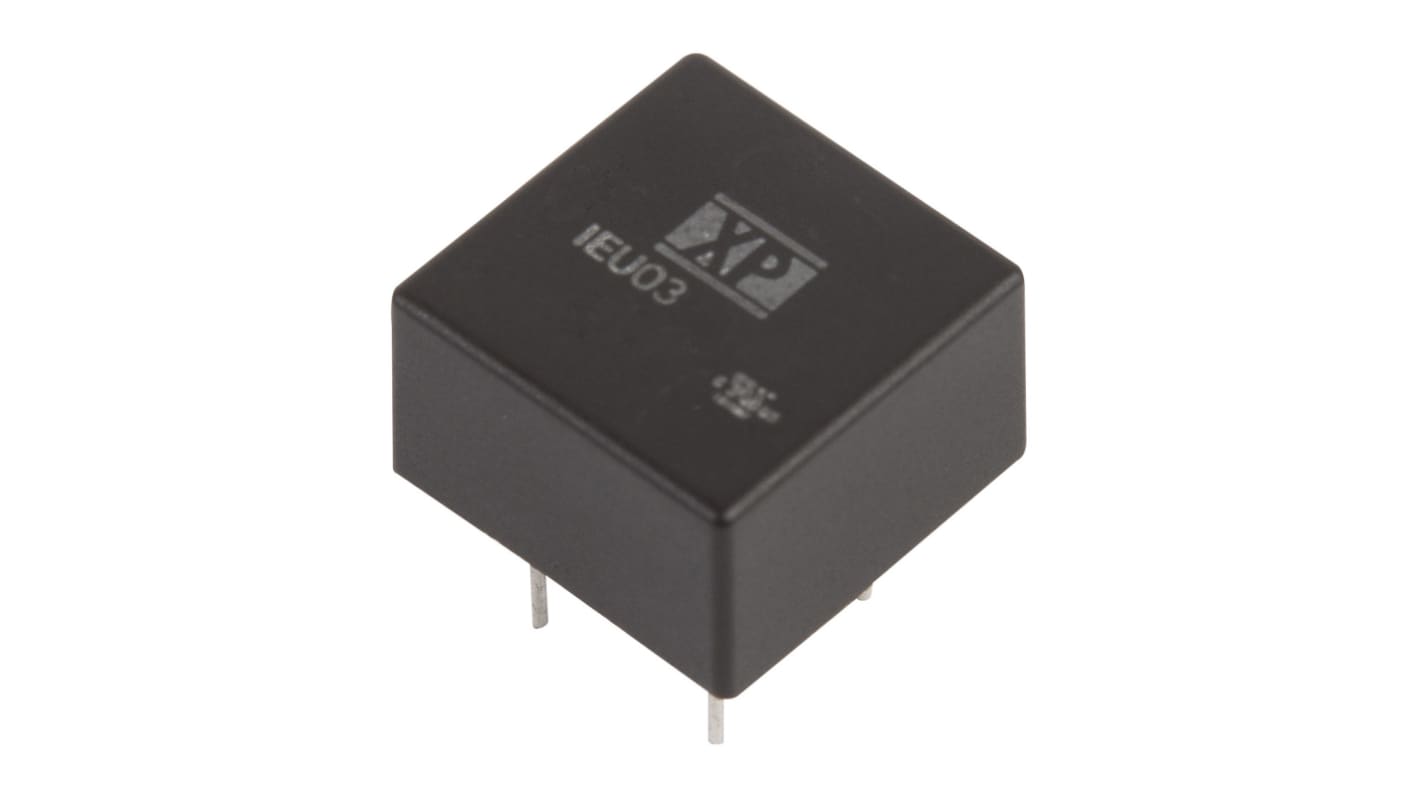

XP Power IEU03 DC-DC Converter, ±15V dc/ ±100mA Output, 18 → 36 V dc Input, 3W, Through Hole, +95°C Max Temp
- RS Stock No.:
- 167-2944
- Mfr. Part No.:
- IEU0324D15
- Brand:
- XP Power
Bulk discount available
Subtotal (1 tube of 10 units)*
£185.38
(exc. VAT)
£222.46
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 15 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £185.38 | £18.538 |
| 5 - 9 | £179.83 | £17.983 |
| 10 - 24 | £174.27 | £17.427 |
| 25 - 49 | £168.70 | £16.87 |
| 50 + | £163.13 | £16.313 |
*price indicative
- RS Stock No.:
- 167-2944
- Mfr. Part No.:
- IEU0324D15
- Brand:
- XP Power
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | ±15V dc | |
| Input Voltage Range | 18 → 36 V dc | |
| Power Rating | 3W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | ±100mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | DIP 8 | |
| Isolation Voltage | 1.5kV dc | |
| Length | 14mm | |
| Depth | 8mm | |
| Width | 14mm | |
| Series | IEU03 | |
| Load Regulation | ±1% | |
| Standards Met | EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC60950-1, ITE, UL/cUL60950-1 | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +95°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage ±15V dc | ||
Input Voltage Range 18 → 36 V dc | ||
Power Rating 3W | ||
Input Voltage Nominal 24 V dc | ||
Output Current ±100mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package DIP 8 | ||
Isolation Voltage 1.5kV dc | ||
Length 14mm | ||
Depth 8mm | ||
Width 14mm | ||
Series IEU03 | ||
Load Regulation ±1% | ||
Standards Met EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC60950-1, ITE, UL/cUL60950-1 | ||
Minimum Temperature -40°C | ||
Maximum Temperature +95°C | ||
