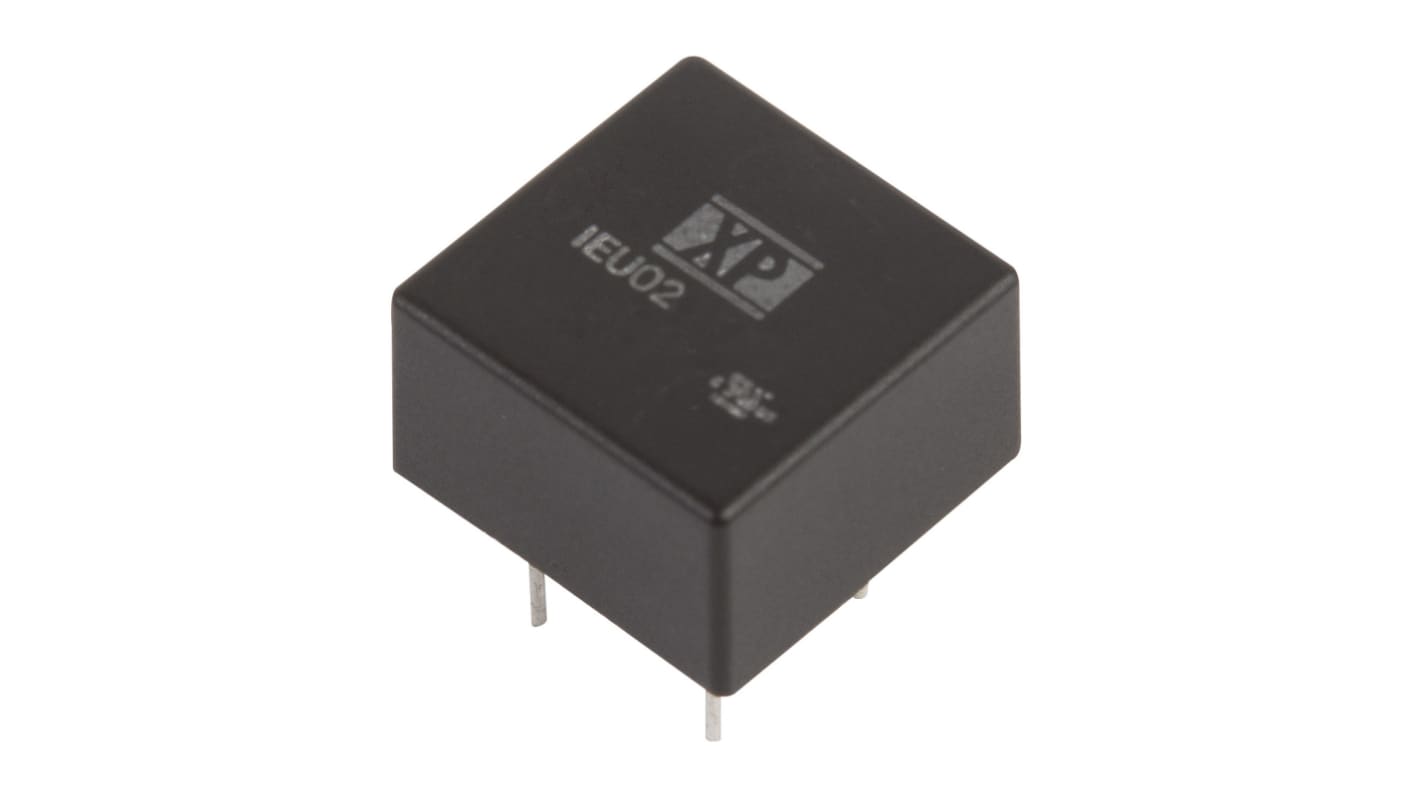

XP Power IEU02 DC-DC Converter, 12V dc/ 167mA Output, 4.5 → 10 V dc Input, 2W, Through Hole, +95°C Max Temp
- RS Stock No.:
- 167-2938
- Mfr. Part No.:
- IEU0205S12
- Brand:
- XP Power
Available to back order for despatch 13/12/2024
Price 1 Tube of 10
£156.70
(exc. VAT)
£188.04
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £156.70 | £15.67 |
| 5 - 9 | £152.00 | £15.20 |
| 10 - 24 | £147.30 | £14.73 |
| 25 - 49 | £142.60 | £14.26 |
| 50 + | £137.90 | £13.79 |
| *price indicative | ||
- RS Stock No.:
- 167-2938
- Mfr. Part No.:
- IEU0205S12
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
XP Power - IEU Series of DC-DC Converters
The IEU series from XP Power offers a highly reliable range of single and dual outputs isolated DC-DC converters. The range features 1000 VDC in isolation and is available in an industry standard SIP or DIP package. These compact DC-DC converters all have a wide operating temperature and are also available in smaller package sizes.
1 W, isolated DC-DC converters
1000 VDC in isolation, 3000 VDC in isolation option available
Single output
-40 °C to +85 °C Operating temperature
Industry standard SIP and DIP packaging
Up to 80% efficiency
Available in smaller packages
1000 VDC in isolation, 3000 VDC in isolation option available
Single output
-40 °C to +85 °C Operating temperature
Industry standard SIP and DIP packaging
Up to 80% efficiency
Available in smaller packages
XP Power - Isolated DC-DC Converters
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 4.5 → 10 V dc |
| Power Rating | 2W |
| Input Voltage Nominal | 5 V dc |
| Output Current | 167mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | DIP 8 |
| Isolation Voltage | 1.5kV dc |
| Width | 14mm |
| Length | 14mm |
| Depth | 8mm |
| Series | IEU02 |
| Load Regulation | ±1% |
| Maximum Temperature | +95°C |
| Standards Met | EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC60950-1, ITE, UL/cUL60950-1 |
| Minimum Temperature | -40°C |
