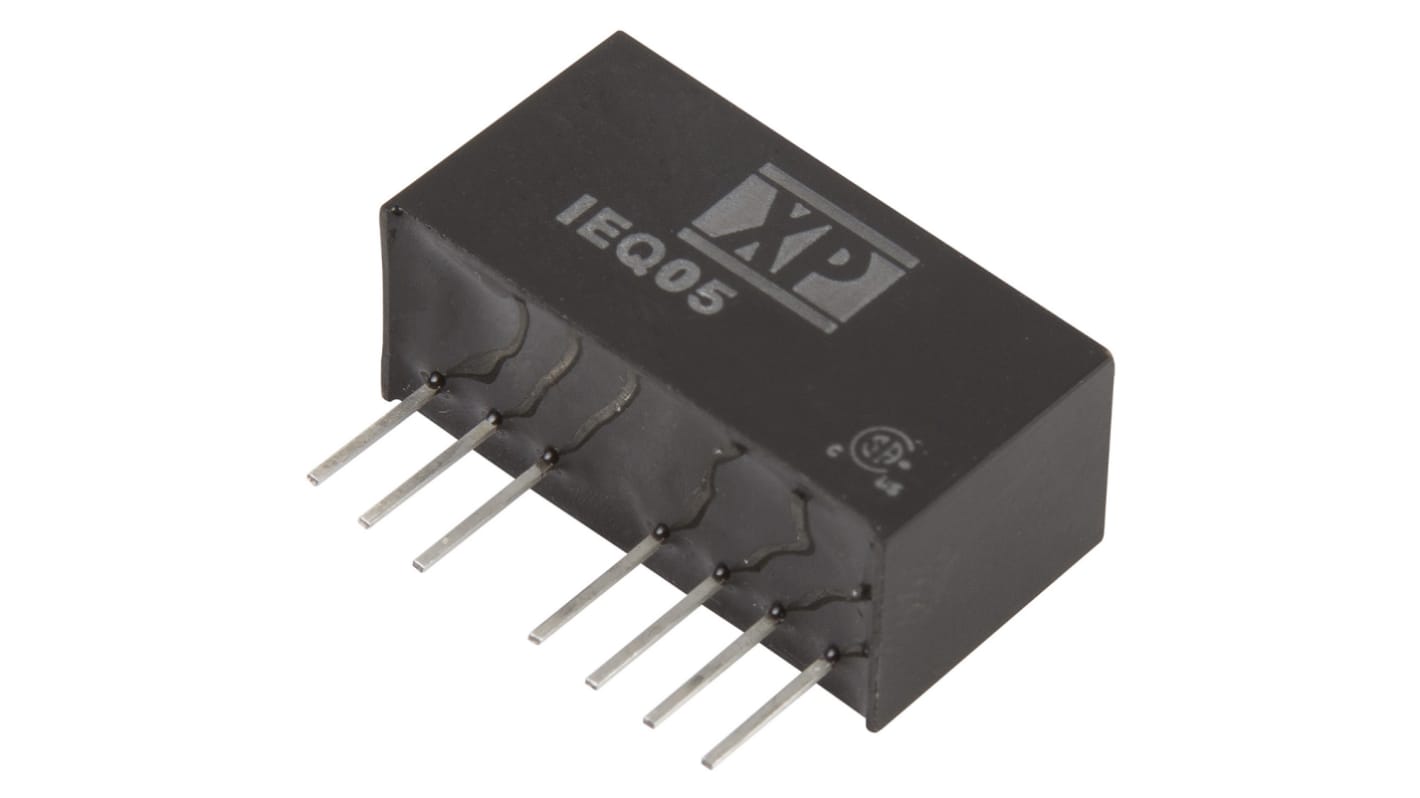

XP Power - IEQ05 Series of Isolated DC-DC Converters
The IEQ05 series from XP Power offers a highly reliable range of regulated single and dual output, 5 W, isolated DC-DC converters. The series has been designed in a compact SIP8 package, features 1500 VDC in isolation and an efficiency of up to 83%. These compact DC-DC converters have a wide 4:1 input range, feature remote on/off settings and have an operating temperature from -40 °C to +90 °C.
5 W isolated DC-DC converters 1500 VDC isolation Regulated single and dual outputs Remote on/off settings Wide 4:1 input range -40 °C to +90 °C Operating temperature Efficiency up to 83% Compact SIP8 package Board mount
XP Power - DC-DC Converters
Attribute
Value
Output Voltage
24V dc
Input Voltage Range
18 → 75 V dc
Power Rating
5W
Input Voltage Nominal
48 V dc
Output Current
209mA
Mounting Type
Through Hole
Isolated
Yes
Number of Outputs
1
Package
SIP
Isolation Voltage
1.5kV dc
Length
21.8mm
Width
9.3mm
Depth
11.2mm
Series
IEQ
Load Regulation
±1%
Efficiency
82%
Standards Met
CB, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, IEC 60950-1, MIL-HDBK-217F, UL, UL 94 V-0, UL/cUL 60950-1
Minimum Temperature
-40°C
Maximum Temperature
+90°C
