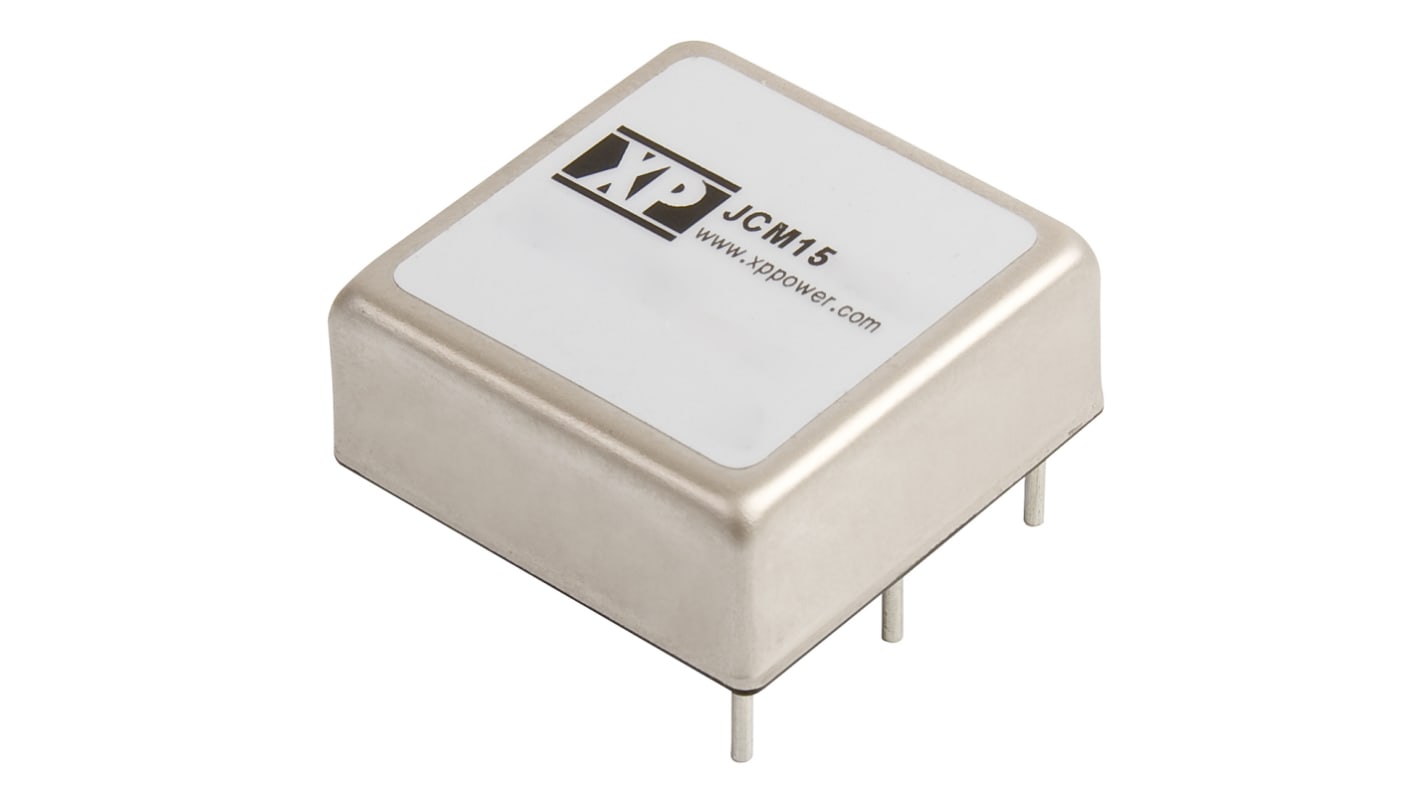

XP Power JCM DC-DC Converter, 5V dc/ 3A Output, 9 → 18 V dc Input, 15W, Through Hole, +105°C Max Temp -40°C Min

RS Stock No.:: 167-2446
Mfr. Part No.:: JCM1512S05
Brand:: XP Power

XP Power JCM DC-DC Converter, 5V dc/ 3A Output, 9 → 18 V dc Input, 15W, Through Hole, +105°C Max Temp -40°C Min

Bulk discount available

Price 1 Tube of 10**

£299.97

(exc. VAT)

£359.96

(inc. VAT)

Available to back order for despatch when stock is available*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Tube(s)	Per Tube	Per unit**
1 - 4	£299.97	£29.997
5 - 9	£290.97	£29.097
10 - 24	£281.97	£28.197
25 - 49	£272.97	£27.297
50 +	£263.97	£26.397

**price indicative

RS Stock No.:: 167-2446
Mfr. Part No.:: JCM1512S05
Brand:: XP Power

Datasheet

Attribute	Value
Output Voltage	5V dc
Input Voltage Range	9 → 18 V dc
Power Rating	15W
Input Voltage Nominal	12 V dc
Output Current	3A
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	1 x 1 in
Isolation Voltage	1.6kV dc
Depth	9.9mm
Length	25.4mm
Width	25.4mm
Series	JCM
Load Regulation	±0.5%
Standards Met	EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F
Maximum Temperature	+105°C
Minimum Temperature	-40°C

XP Power JCM DC-DC Converter, 5V dc/ 3A Output, 9 → 18 V dc Input, 15W, Through Hole, +105°C Max Temp -40°C Min

FREE delivery for orders over £50.00

XP Power - JCM15 Series of Isolated DC-DC Converters
