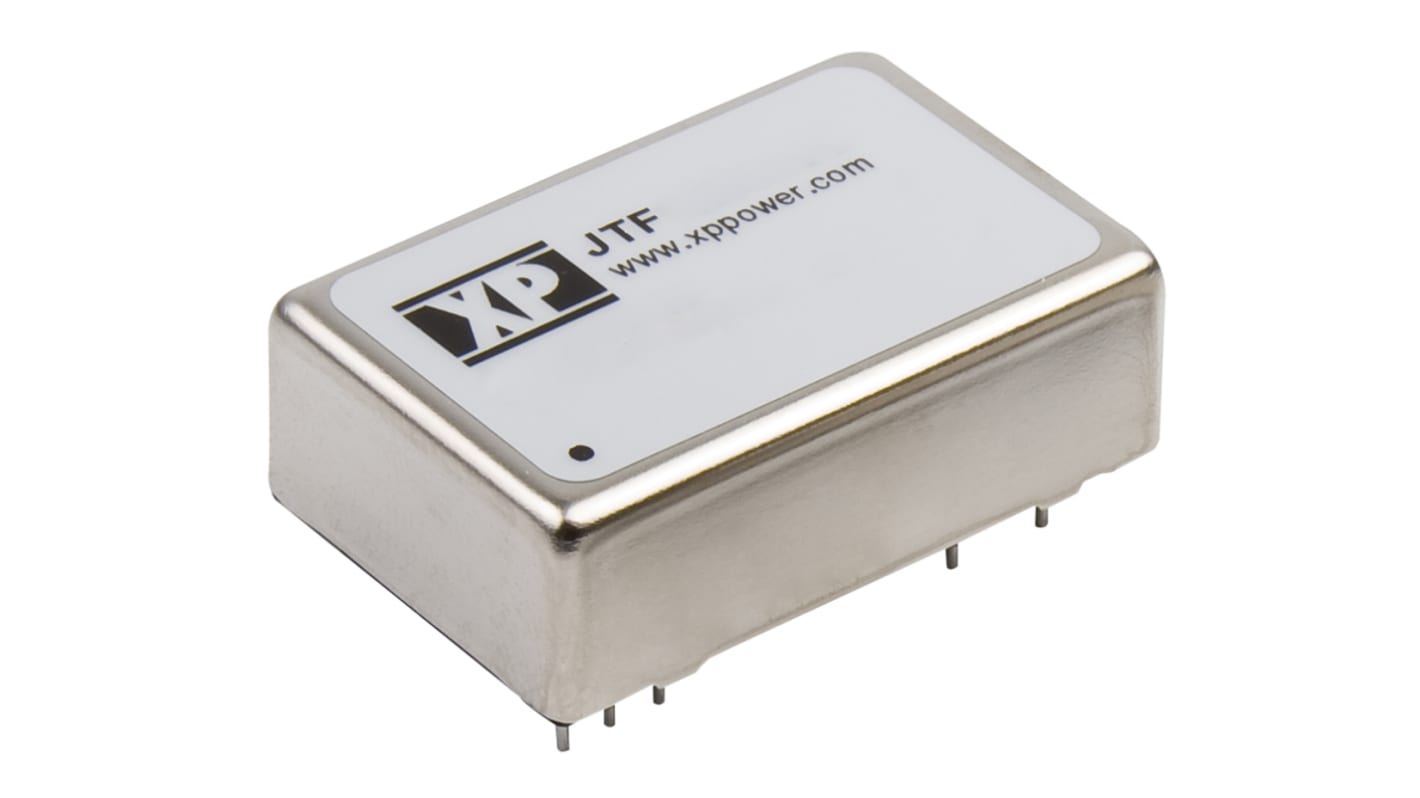

XP Power JTF DC/DC Converter, 12V, -12 V/ 0.63 A, 36V dc Input, 9V Input 6 W, Through Hole, 100 °C Max Temp -40 °C Min

View all DC-DC Converters
Unavailable
RS will no longer stock this product.
RS Stock No.:
167-2432
Mfr. Part No.:
JTF1524D12
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Product Type

DC/DC Converter

Output Voltage 1

12, -12V

Minimum Input Voltage

9V

Maximum Input Voltage

36V dc

Output Current 1

0.63A

Mount Type

Through Hole

Input Ratio

4:1

MTBF

800000h

Number of Outputs

2

Output Voltage Adjustment Range

9/36 V

Isolation Voltage

1.6kV dc

Number of Pins

24

Maximum Output Power

6W

Package Type

DIP

Width

20.32mm

Length

31.75mm

Depth

10.16mm

Series

JTF

Standards/Approvals

No

Minimum Operating Temperature

-40°C

Efficiency

89%

Maximum Operating Temperature

100°C

COO (Country of Origin):
TW

XP Power - JTF15 Series of Isolated DC-DC Converters


The JTF15 series from XP Power offers a highly reliable range of single and dual output, 15 W, isolated DC-DC converters. The series has been designed in an industry standard package, features 1600 VDC in isolation and a high efficiency of up to 90%. These compact DC-DC converters have a wide 4:1 input range, feature standard remote on/off and have an operating temperature of -40 °C to +105 °C.

15 W, isolated DC-DC converters

1600 VDC isolation

High power density

Single and dual outputs

Wide 4:1 input range

-40 °C to +105 °C Operating temperature

High efficiency up to 90%

Industry standard package

Board mount

Standard remote on/off
