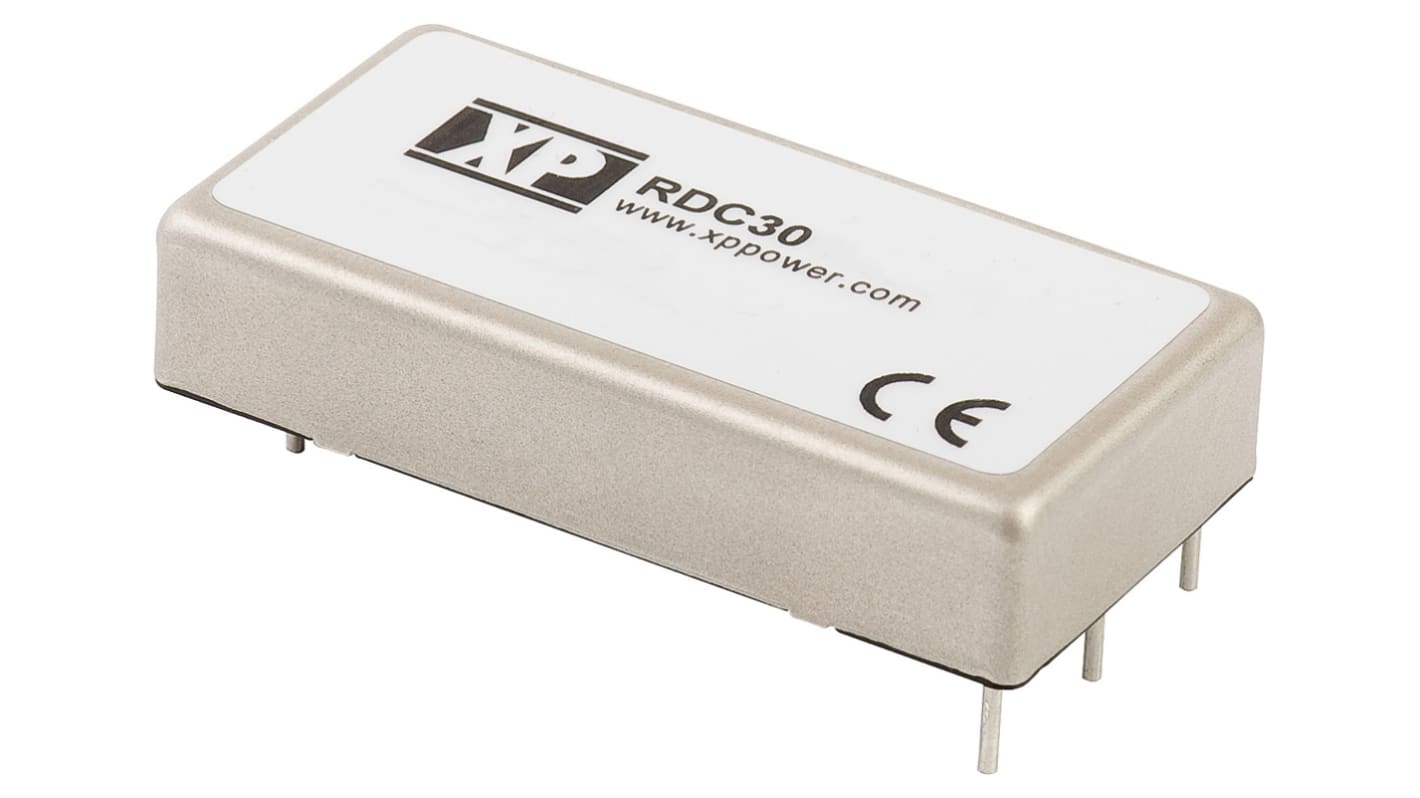

XP Power RDC DC-DC Converter, 5V dc/ 4 A, ±330mA Output, 36 → 140 V dc Input, 30W, Through Hole, +75°C Max Temp

RS Stock No.:: 167-2347
Mfr. Part No.:: RDC3072T0515
Brand:: XP Power

XP Power RDC DC-DC Converter, 5V dc/ 4 A, ±330mA Output, 36 → 140 V dc Input, 30W, Through Hole, +75°C Max Temp

Bulk discount available

Price 1 Tube of 10**

£1,005.40

(exc. VAT)

£1,206.48

(inc. VAT)

Available to back order for despatch 16/04/2025*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Tube(s)	Per Tube	Per unit**
1 - 4	£1,005.40	£100.54
5 - 9	£975.24	£97.524
10 - 24	£945.08	£94.508
25 - 49	£914.91	£91.491
50 +	£884.75	£88.475

**price indicative

RS Stock No.:: 167-2347
Mfr. Part No.:: RDC3072T0515
Brand:: XP Power

Datasheet

Attribute	Value
Output Voltage	5 V dc, ±15V dc
Input Voltage Range	36 → 140 V dc
Power Rating	30W
Input Voltage Nominal	72 V dc
Output Current	4 A, ±330mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	3
Package	2 x 1 in
Isolation Voltage	1.5kV ac
Width	25.4mm
Depth	10.16mm
Length	50.8mm
Series	RDC
Railway Approved	Yes
Load Regulation	±1 (Main) %, ±5 (Auxillary) %
Standards Met	CE Certified, EN50121-3-2, EN55011, EN61000-4-2 Level 3, EN61000-4-3 20 V/m, EN61000-4-4 Level 3, EN61000-4-5 Level 2, EN61000-4-6 10 V/rms, EN61000-4-8 10 A/m, MIL-HDBK-217F
Maximum Temperature	+75°C
Medical Approved	No
Minimum Temperature	-40°C

XP Power RDC DC-DC Converter, 5V dc/ 4 A, ±330mA Output, 36 → 140 V dc Input, 30W, Through Hole, +75°C Max Temp
