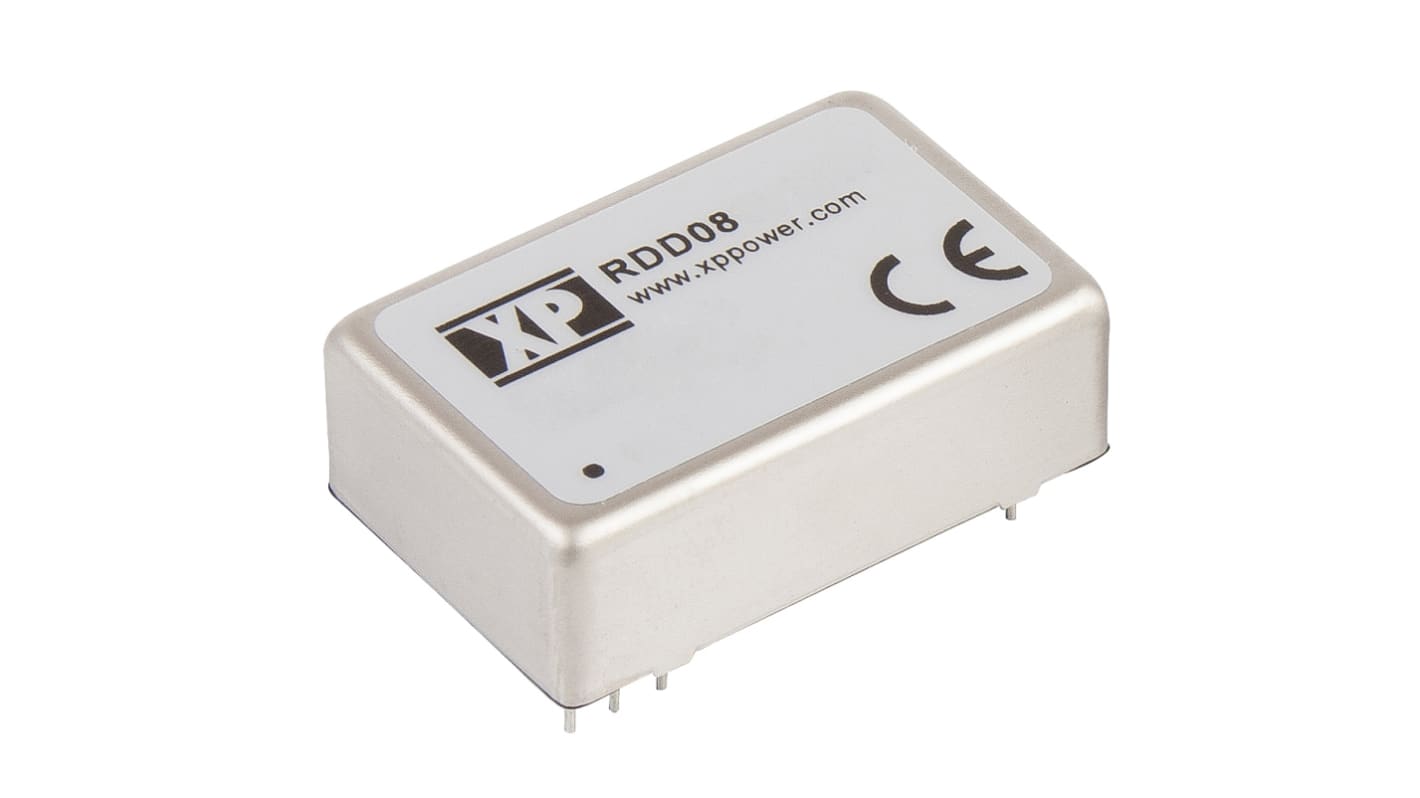

XP Power RDD DC/DC Converter, 5V dc/ 1600 mA, 70V dc Input, 13V Input 8 W, Through Hole, 85 °C Max Temp -40 °C Min Temp,

View all DC-DC Converters
Unavailable
RS will no longer stock this product.
RS Stock No.:
167-2275
Mfr. Part No.:
RDD0824S05
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage 1

5V dc

Product Type

DC/DC Converter

Maximum Input Voltage

70V dc

Minimum Input Voltage

13V

Output Current 1

1600mA

Mount Type

Through Hole

MTBF

800000h

Number of Outputs

1

Number of Pins

24

Isolation Voltage

3kV dc

Maximum Output Power

8W

Package Type

DIP-24

Standards/Approvals

RoHS

Width

20.32mm

Series

RDD

Depth

10.16mm

Length

31.75mm

Efficiency

86%

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

COO (Country of Origin):
TW

XP Power- RDD Series of DC-DC Converters


The RDD series from XP Power offers a highly reliable range of single and dual output, 8 W DC-DC converters. The range has been designed in a DIP24 plastic package with an industry standard footprint and features a wide input range for railway applications. These highly efficient DC-DC converters all have EN50155 approvals for railway applications.

8 W

DIP24 Plastic package

Operating temperature -40 °C to +85 °C

Full load at 70°C ambient

3000 V dc isolation

Wide input range for railway applications

EN50155 approvals for railway applications

EN50121-3-2 EMC for railway applications
