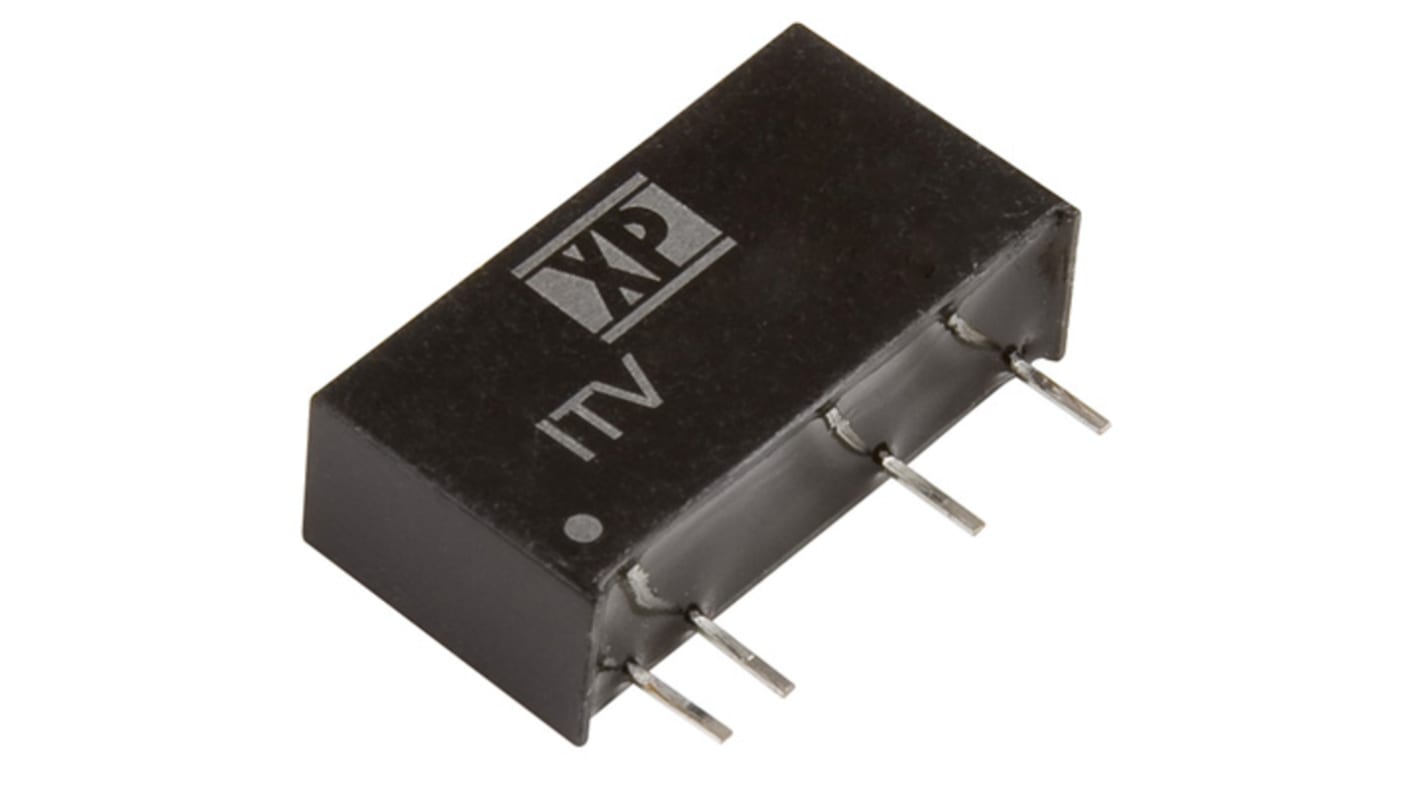

XP Power ITV DC-DC Converter, ±5V dc/ ±100mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +105°C Max Temp

RS Stock No.:: 167-2220
Mfr. Part No.:: ITV1205S
Brand:: XP Power

XP Power ITV DC-DC Converter, ±5V dc/ ±100mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +105°C Max Temp

Available to back order for despatch 23/09/2024

Price 1 Tube of 20

£135.83

(exc. VAT)

£163.00

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 - 4	£135.83	£6.792
5 - 9	£131.76	£6.588
10 - 24	£127.68	£6.384
25 - 49	£123.61	£6.18
50 +	£119.53	£5.976

*price indicative

RS Stock No.:: 167-2220
Mfr. Part No.:: ITV1205S
Brand:: XP Power

Datasheet

Attribute	Value
Output Voltage	±5V dc
Input Voltage Range	10.8 → 13.2 V dc
Power Rating	1W
Input Voltage Nominal	12 V dc
Output Current	±100mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	SIP
Isolation Voltage	3kV dc
Width	6mm
Depth	10mm
Length	19.5mm
Series	ITV
Load Regulation	-2.5 → +5%
Maximum Temperature	+105°C
Standards Met	EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, MIL-HDBK-217F
Efficiency	80%
Minimum Temperature	-40°C

XP Power ITV DC-DC Converter, ±5V dc/ ±100mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +105°C Max Temp

XP Power - ITV Series Isolated DC-DC Converter
