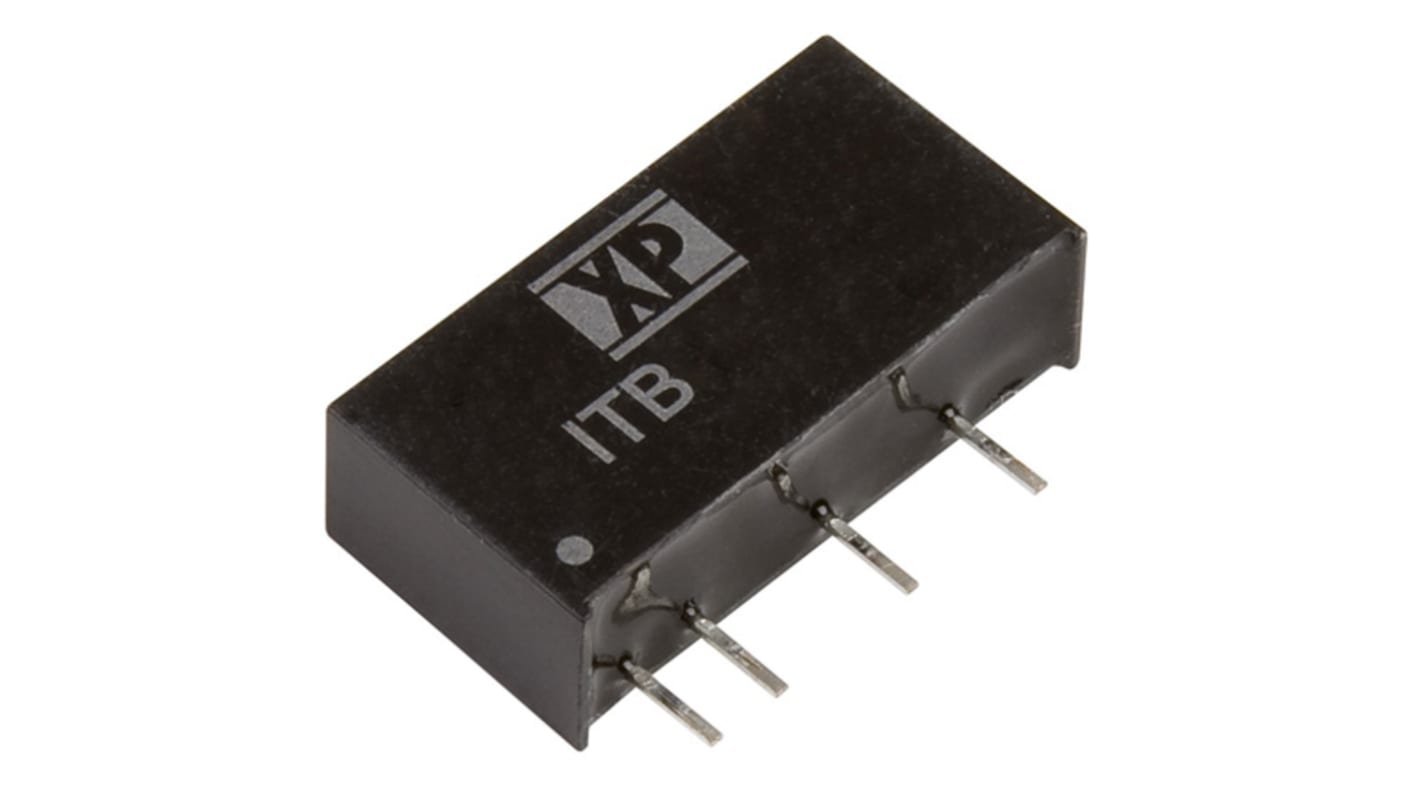

XP Power ITB DC/DC Converter, 15V dc/ 66.7 mA, 5.5V dc Input, 4.5V Input 1 W, Through Hole, 105 °C Max Temp -40 °C Min

View all DC-DC Converters
Unavailable
RS will no longer stock this product.
RS Stock No.:
167-2124
Mfr. Part No.:
ITB0515S
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage 1

15V dc

Product Type

DC/DC Converter

Minimum Input Voltage

4.5V

Maximum Input Voltage

5.5V dc

Output Current 1

66.7mA

Mount Type

Through Hole

Number of Outputs

1

MTBF

3500000h

Output Voltage Adjustment Range

4.5/5.5 V

Isolation Voltage

1.5kV dc

Number of Pins

7

Maximum Output Power

1W

Package Type

SIP

Series

ITB

Depth

10mm

Length

19.5mm

Standards/Approvals

No

Width

6mm

Maximum Operating Temperature

105°C

Minimum Operating Temperature

-40°C

Efficiency

81%

COO (Country of Origin):
TW

XP Power - ITB Series Isolated DC-DC Converter


XP Power ITB series of DC-DC Converters provide the user with a reliable & robust product suitable for use within a wide variety of applications. The ITB series is a single output SIP packaged converter.

Features and Benefits

Single output.

SIP Package.

MTBF >3.5MHrs.

Class B conducted & radiated emissions.

Wide operating temperature of -40°C to +105°C, with a full load rating to 95°C ambient.
