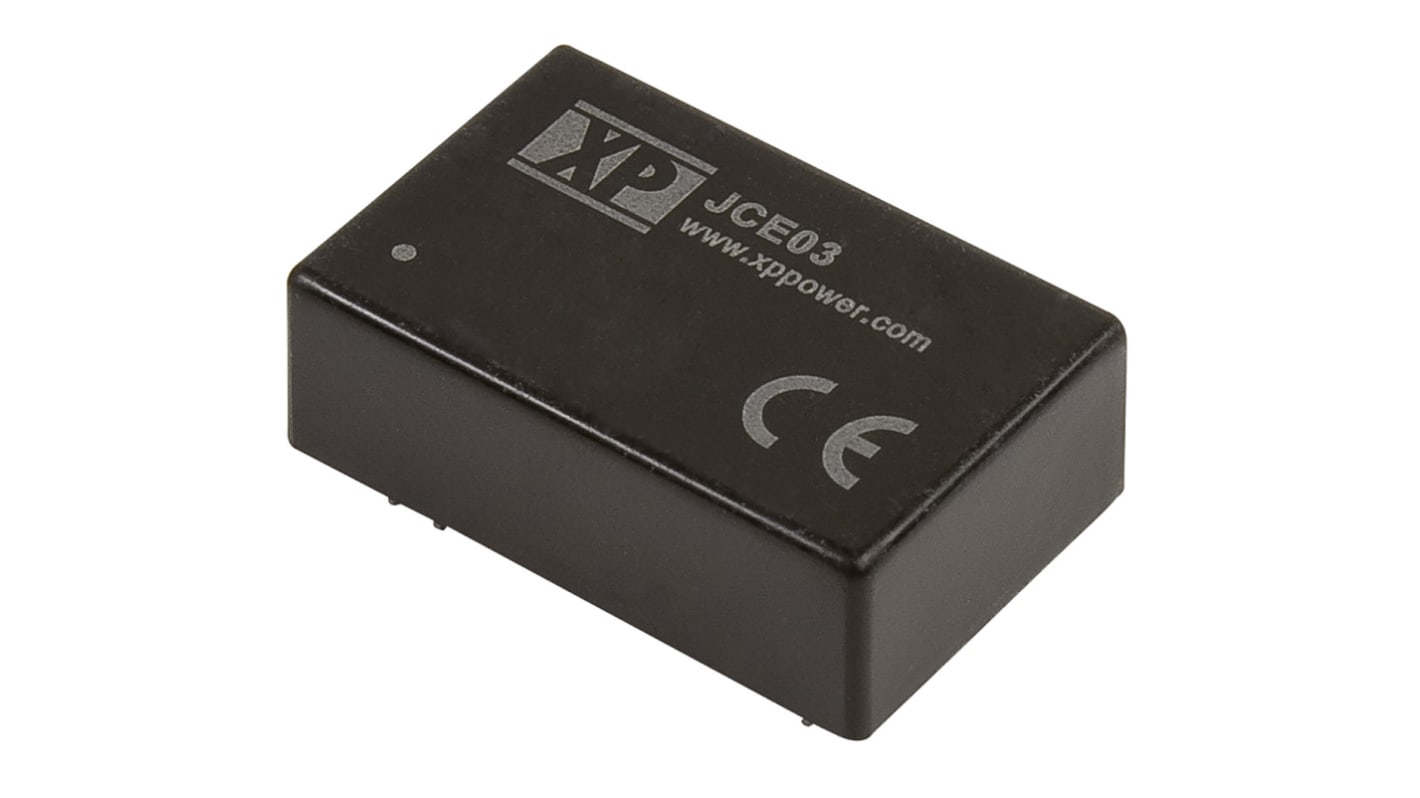

XP Power JCE03 DC/DC Converter, 5V, -5 V/ 300 mA, 36V dc Input, 18V Input 3 W, Through Hole, 100 °C Max Temp -40 °C Min

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£146.79

(exc. VAT)

£176.15

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Tube(s)
Per Tube
Per unit*
1 - 4£146.79£14.679
5 - 9£142.38£14.238
10 - 24£137.98£13.798
25 - 49£133.57£13.357
50 +£129.17£12.917

*price indicative

RS Stock No.:
167-2045
Mfr. Part No.:
JCE0324D05-H
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage 1

5, -5V

Product Type

DC/DC Converter

Maximum Input Voltage

36V dc

Minimum Input Voltage

18V

Output Current 1

300mA

Mount Type

Through Hole

Input Ratio

2:1

Number of Outputs

2

Output Voltage Adjustment Range

18/36 V

Isolation Voltage

3kV dc

Number of Pins

24

Maximum Output Power

3W

Package Type

DIP

Length

31.75mm

Standards/Approvals

No

Depth

10.16mm

Width

20.32mm

Series

JCE03

Efficiency

79%

Maximum Operating Temperature

100°C

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TW

XP Power - JCE03 Series of Isolated DC-DC Converters


The JCE03 series from XP Power offers a highly reliable range of fully regulated single and dual output, 3 W, isolated DC-DC converters. The series features 1500 VDC in isolation (3000 VDC option available) and is available in an industry standard DIP24 package. These compact DC-DC converters feature a 2:1 input range, no minimum load requirements and a wide -40 °C to +90 °C operating temperature range, making them the perfect choice for a host of commercial and industrial applications.

3 W, Isolated DC-DC converters

1500 VDC in isolation, 3000 VDC option available

Regulated single and dual output

Industry standard DIP24 package

No minimum load requirement

Wide -40 °C to +90 °C operating temperature range
