TRACOPOWER TMV DC-DC Converter, ±12V dc/ ±40mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 166-5260
- Mfr. Part No.:
- TMV 2412D
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£55.56
(exc. VAT)
£66.67
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £55.56 | £5.556 |
| 5 - 9 | £53.90 | £5.39 |
| 10 - 24 | £52.23 | £5.223 |
| 25 - 49 | £50.01 | £5.001 |
| 50 + | £47.78 | £4.778 |
*price indicative
- RS Stock No.:
- 166-5260
- Mfr. Part No.:
- TMV 2412D
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±12V dc | |
| Input Voltage Range | 21.6 → 26.4 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | ±40mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | SIP 7 | |
| Isolation Voltage | 3kV dc | |
| Width | 6.1mm | |
| Depth | 10.2mm | |
| Length | 19.5mm | |
| Series | TMV | |
| Load Regulation | ±10% | |
| Maximum Temperature | +85°C | |
| Efficiency | 79% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±12V dc | ||
Input Voltage Range 21.6 → 26.4 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 24 V dc | ||
Output Current ±40mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package SIP 7 | ||
Isolation Voltage 3kV dc | ||
Width 6.1mm | ||
Depth 10.2mm | ||
Length 19.5mm | ||
Series TMV | ||
Load Regulation ±10% | ||
Maximum Temperature +85°C | ||
Efficiency 79% | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- TW

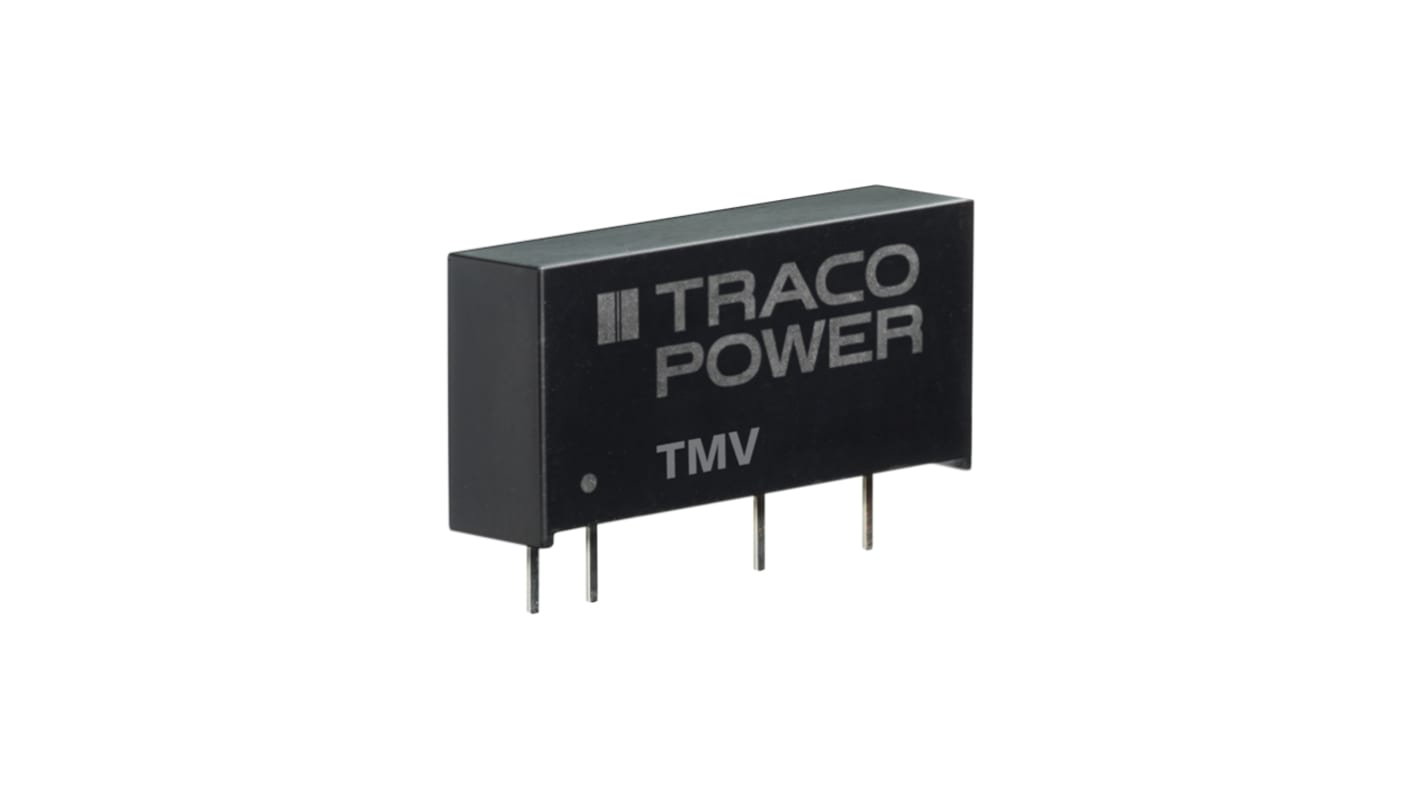

Traco Power DC-DC Converter, 3kV Isolation Voltage, 79% Efficiency - TMV Series - TMV 2412D
Need a space-saving power supply? This compact DC-DC converter from Traco Power works a treat on crowded PCBs. It measures just 19.5 (L) x 7.1 (W) x 10.2mm (D) and needs only 1.2cm² installation room on your board. The unit turns inputs between 21.6 and 26.4V DC into a balanced 12V DC feed, giving your system the energy needed for reliable performance. The robust SIP-7 format keeps the working protected and able to perform without fault in temperatures between -40°C and +80°C. Mounting is done in a flash – just punch the pins through the holes on your board and solder them in place.
Features & Benefits
• Internal filter supports EN 55032 Class A immunity against electromagnetic and radio frequency interferences
• 1W power rating for energy efficiency
• Plastic housing insulates live components for electrical safety
• 1W power rating for energy efficiency
• Plastic housing insulates live components for electrical safety
Applications
• Testing instruments
• Consumer electronics
• Telecommunications networks
• Automated pay points
• Medical devices
• Consumer electronics
• Telecommunications networks
• Automated pay points
• Medical devices
How many circuits can I run through this DC-DC converter?
Thanks to its dual outputs, this unit handles two circuits at once to save even more board space.
How heavy is the unit?
It's a lightweight component that weighs only 2.6g, so puts minimal strain on your PCB.
