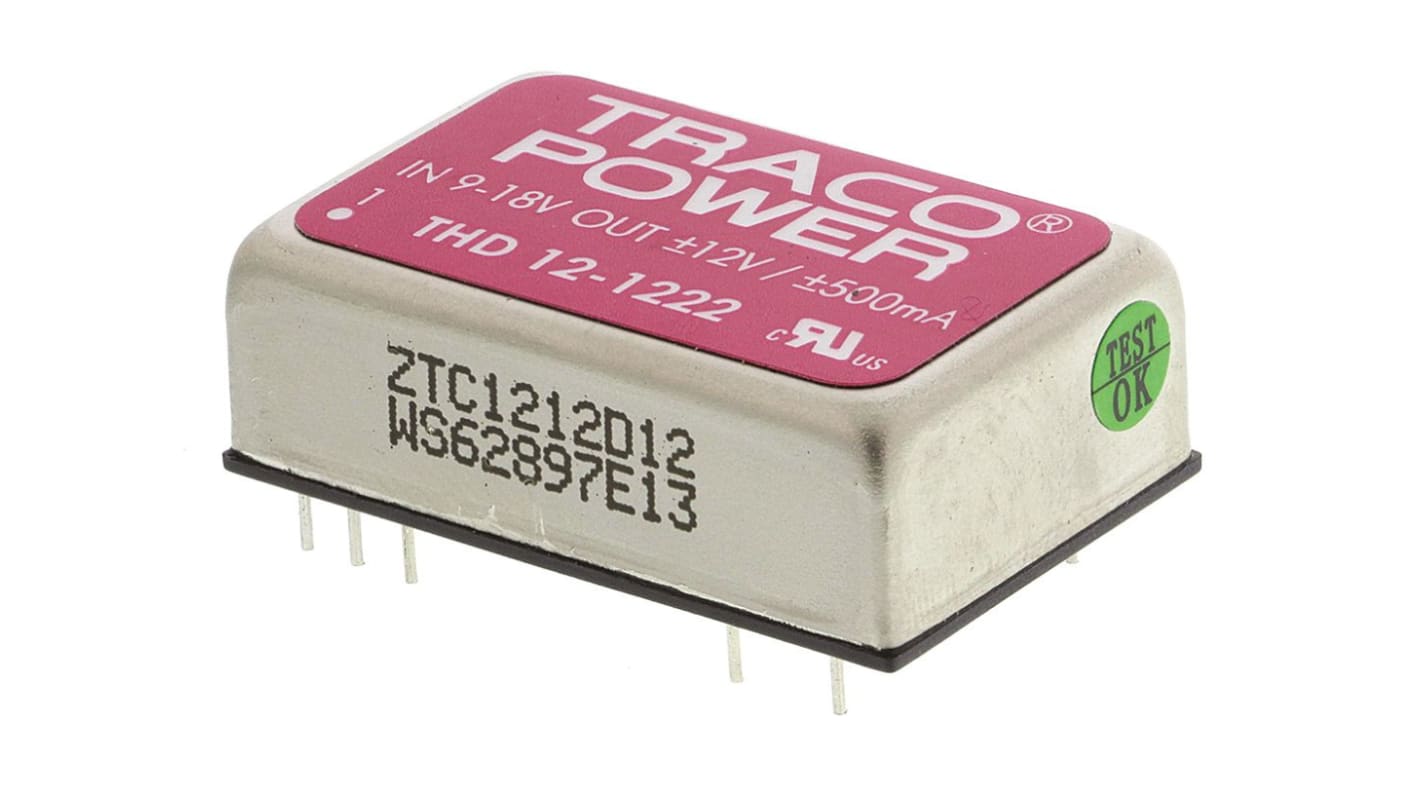

TRACOPOWER THD 12 DC-DC Converter, ±12V dc/ ±500mA Output, 9 → 18 V dc Input, 12W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 161-9726
- Mfr. Part No.:
- THD 12-1222
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£347.24
(exc. VAT)
£416.69
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £347.24 | £34.724 |
| 5 - 9 | £336.83 | £33.683 |
| 10 - 24 | £326.41 | £32.641 |
| 25 - 49 | £312.51 | £31.251 |
| 50 + | £298.63 | £29.863 |
*price indicative
- RS Stock No.:
- 161-9726
- Mfr. Part No.:
- THD 12-1222
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±12V dc | |
| Input Voltage Range | 9 → 18 V dc | |
| Power Rating | 12W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | ±500mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | PDIP | |
| Isolation Voltage | 1.5kV dc | |
| Depth | 10.2mm | |
| Length | 31.8mm | |
| Series | THD 12 | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±12V dc | ||
Input Voltage Range 9 → 18 V dc | ||
Power Rating 12W | ||
Input Voltage Nominal 12 V dc | ||
Output Current ±500mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package PDIP | ||
Isolation Voltage 1.5kV dc | ||
Depth 10.2mm | ||
Length 31.8mm | ||
Series THD 12 | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- TW
TRACOPOWER THD 12 Series DC-DC Converter, ±12V DC Output Voltage, 12W Power Rating - THD 12-1222
This isolated DC-DC converter is designed for electronic applications that require dependable power supply solutions with dual output capabilities. It operates effectively within an input voltage range of 9 to 18V DC, providing versatility for various industrial and automation systems. Its compact design and high efficiency make it essential for professionals in the electrical and mechanical sectors.
Features & Benefits
• Dual output with ±12V DC for various Applications
• Power rating of 12W ensures effective performance
• Isolated design enhances safety and reduces interference
• Operating efficiency of 87% minimises energy loss
• Load regulation maintained within 0.5% for stable output
• Suitable for through-hole mounting, facilitating installation
• Power rating of 12W ensures effective performance
• Isolated design enhances safety and reduces interference
• Operating efficiency of 87% minimises energy loss
• Load regulation maintained within 0.5% for stable output
• Suitable for through-hole mounting, facilitating installation
Applications
• Commonly employed in automation control circuits
• Ideal for powering sensors and communication devices
• Applicable in medical and industrial equipment
• Utilised in robotics for dependable power distribution
• Ideal for powering sensors and communication devices
• Applicable in medical and industrial equipment
• Utilised in robotics for dependable power distribution
What input voltage range is suitable for operation?
It functions within a voltage range of 9 to 18V DC.
How does this converter assist in achieving energy efficiency?
It operates at 87% efficiency, reducing energy loss during conversion.
Can this device be installed in compact spaces?
Yes, its design allows for installation in tight areas.
What measures are in place for safety during operation?
It features isolation rated at 1.6kV DC to enhance user safety.
How does it perform under extreme temperature conditions?
It operates within a temperature range of -40 to +85°C.
