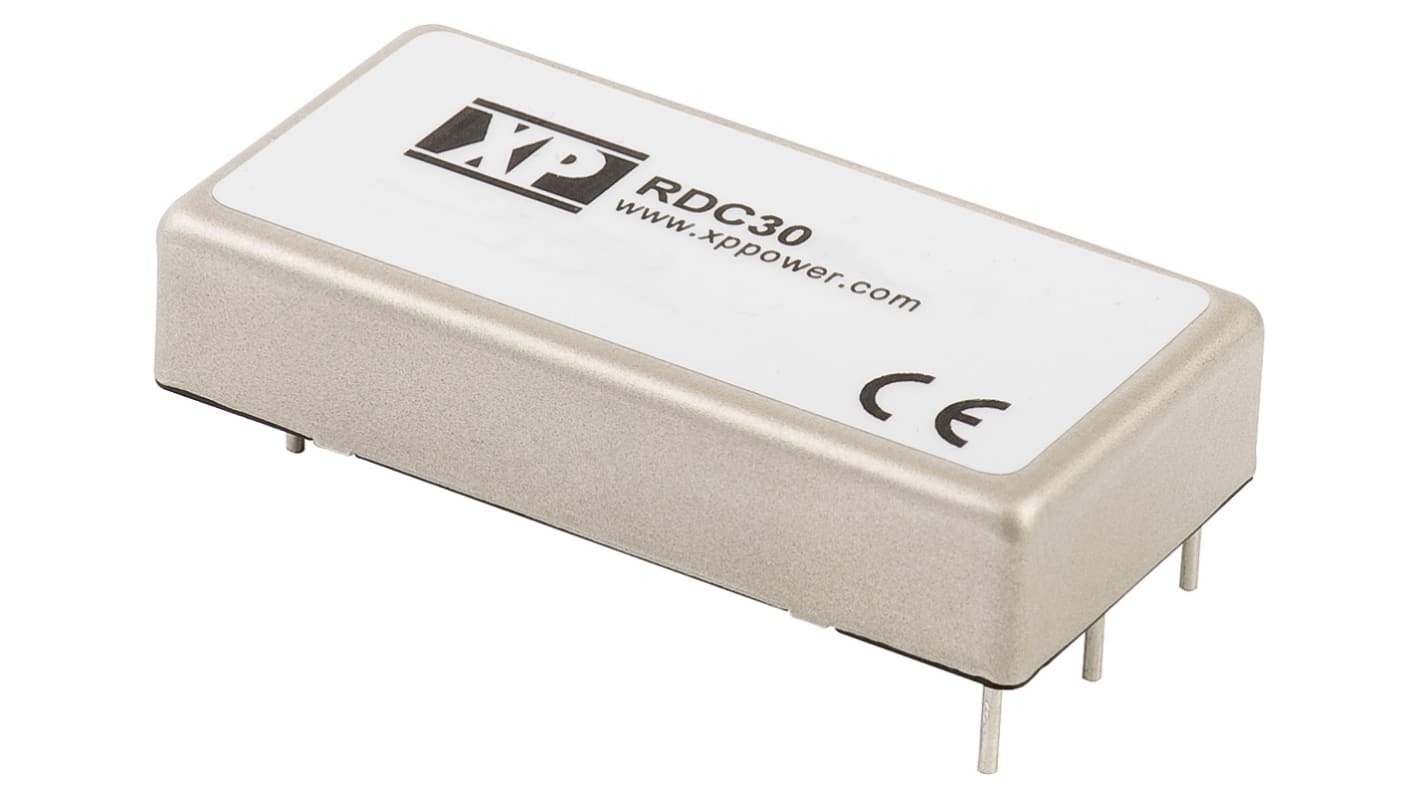

XP Power RDC DC-DC Converter, 12V dc/ 2.5A Output, 55 → 176 V dc Input, 30W, Through Hole, +75°C Max Temp -40°C

RS Stock No.:: 161-9271
Mfr. Part No.:: RDC30110S12
Brand:: XP Power

XP Power RDC DC-DC Converter, 12V dc/ 2.5A Output, 55 → 176 V dc Input, 30W, Through Hole, +75°C Max Temp -40°C

Available to back order for despatch 07/11/2024

Price 1 Tube of 10

£869.36

(exc. VAT)

£1,043.23

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 - 4	£869.36	£86.936
5 - 9	£843.28	£84.328
10 - 24	£817.20	£81.72
25 - 49	£791.12	£79.112
50 +	£765.04	£76.504

*price indicative

RS Stock No.:: 161-9271
Mfr. Part No.:: RDC30110S12
Brand:: XP Power

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

XP Power- RDC30 Series of DC-DC Converters

The RDC30 series from XP Power offers a highly reliable range of single, dual and triple output, 30 W DC-DC converters. The range has been designed with 72 V dc and 110 V dc inputs for railway applications and features 1500 V ac basic isolation.

30 W
1500 V ac basic isolation
Single, dual and triple output
72 V dc and 110 V dc for rail applications
Remote On/Off
EN50121-3-2 EMC for Railway Applications
3-year warranty

XP Power - DC-DC Converters

Specifications

Attribute	Value
Output Voltage	12V dc
Input Voltage Range	55 → 176 V dc
Power Rating	30W
Input Voltage Nominal	110 V dc
Output Current	2.5A
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	2 x 1 in
Isolation Voltage	1.5kV ac
Depth	10.16mm
Width	25.4mm
Length	50.8mm
Series	RDC
Railway Approved	Yes
Load Regulation	±0.5%
Maximum Temperature	+75°C
Medical Approved	No
Minimum Temperature	-40°C
Standards Met	CE Certified, EN50121-3-2, EN55011, EN61000-4-2 Level 3, EN61000-4-3 20 V/m, EN61000-4-4 Level 3, EN61000-4-5 Level 2, EN61000-4-6 10 V/rms, EN61000-4-8 10 A/m, MIL-HDBK-217F
