XP Power IK DC/DC Converter, 15V dc/ 16.67 mA, 13.2V dc Input, 10.8V Input 0.25 W, Through Hole, 85 °C Max Temp -40 °C

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 40 units)*

£174.31

(exc. VAT)

£209.17

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Tube(s)
Per Tube
Per unit*
1 - 4£174.31£4.358
5 - 9£169.08£4.227
10 - 24£163.86£4.097
25 - 49£158.62£3.966
50 +£153.40£3.835

*price indicative

RS Stock No.:
161-9253
Distrelec Article No.:
304-31-039
Mfr. Part No.:
IK1215SA
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage 1

15V dc

Product Type

DC/DC Converter

Maximum Input Voltage

13.2V dc

Minimum Input Voltage

10.8V

Output Current 1

16.67mA

Mount Type

Through Hole

Number of Outputs

1

MTBF

1100000h

Number of Pins

4

Isolation Voltage

1kV dc

Maximum Output Power

0.25W

Package Type

SIP

Depth

10.15mm

Length

11.68mm

Standards/Approvals

No

Width

6mm

Series

IK

Maximum Operating Temperature

85°C

Minimum Operating Temperature

-40°C

Efficiency

67%

COO (Country of Origin):
TW

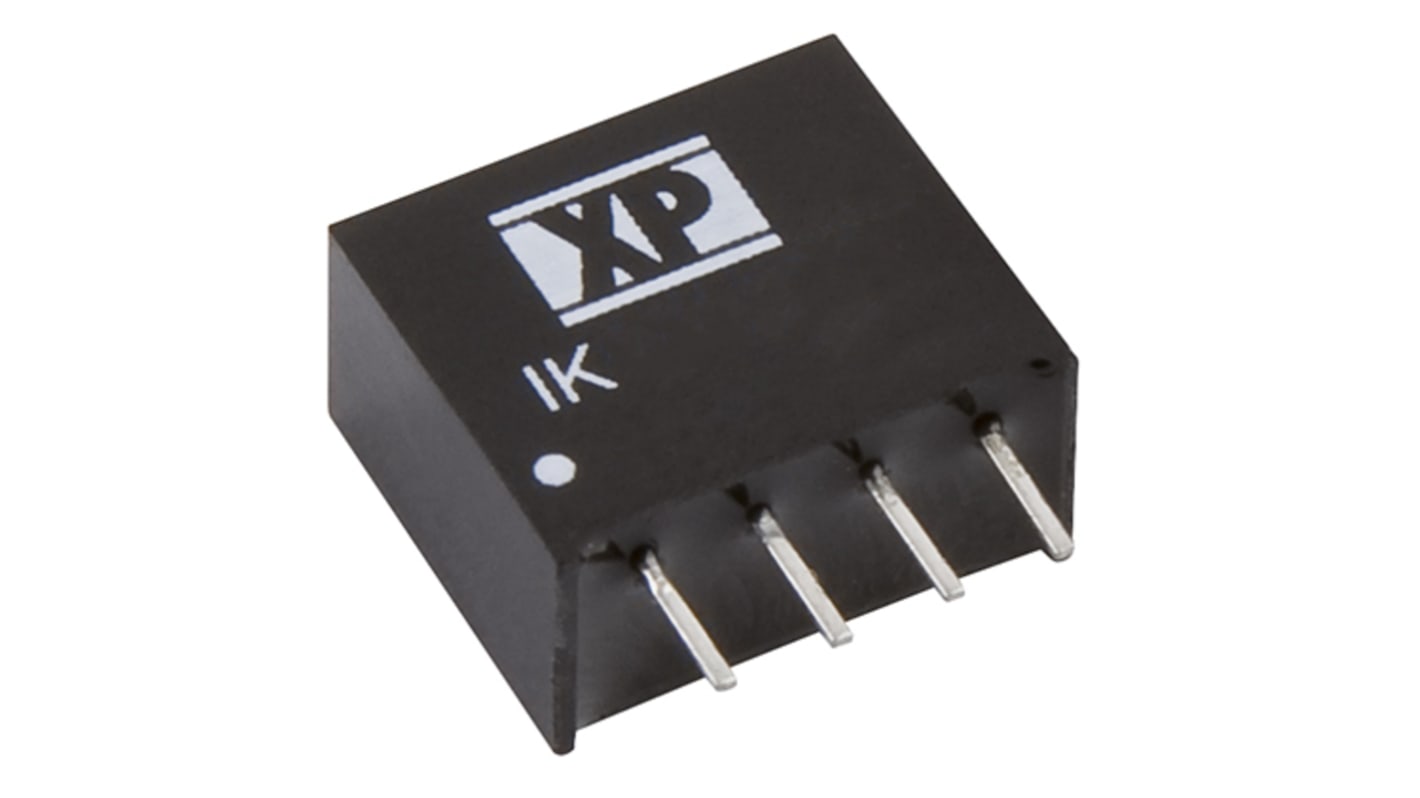

XP Power - IK Series of Isolated DC-DC Converters


The IK series from XP Power offers a highly reliable range of single output, 0.25 W, isolated DC-DC converters. The series attributes 1000 VDC in isolation and is available in an industry standard SIP or DIP package. These compact DC-DC converters all have a wide -40 °C to +85 °C operating temperature and are also available in smaller package sizes.

0.25 W, isolated DC-DC converters

1000 VDC in isolation, 3000 VDC in isolation option available

Single output

Available in smaller packages

-40 °C to +85 °C Operating temperature

Industry standard SIP and DIP packaging

Up to 70% efficiency

XP Power - Isolated DC-DC Converters
