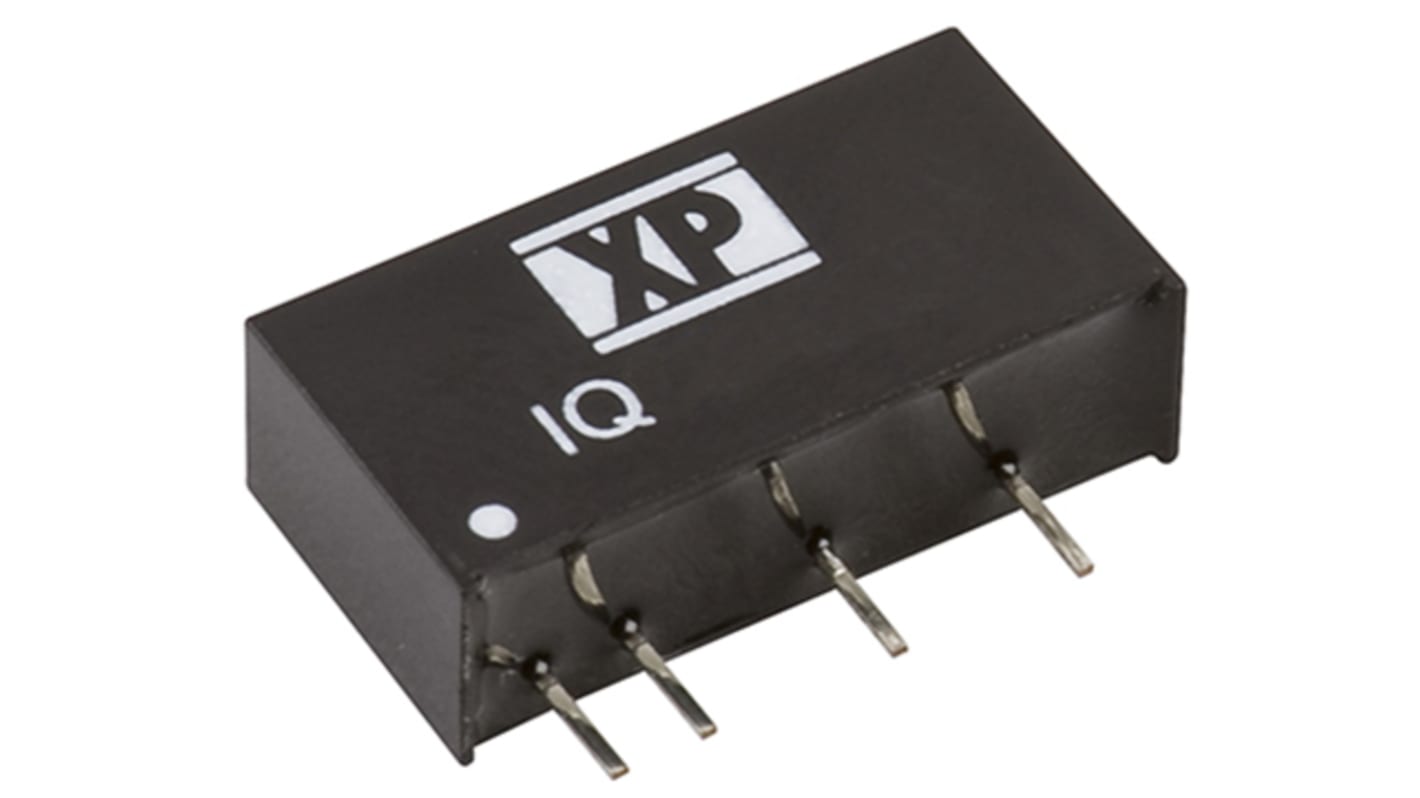

XP Power IQ DC-DC Converter, 5V dc/ 200mA Output, 43.2 → 52.8 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 161-9129
- Mfr. Part No.:
- IQ4805SA
- Brand:
- XP Power
Bulk discount available
Subtotal (1 tube of 20 units)*
£93.00
(exc. VAT)
£111.60
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £93.00 | £4.65 |
| 5 - 9 | £90.22 | £4.511 |
| 10 - 24 | £87.43 | £4.372 |
| 25 - 49 | £84.62 | £4.231 |
| 50 + | £81.84 | £4.092 |
*price indicative
- RS Stock No.:
- 161-9129
- Mfr. Part No.:
- IQ4805SA
- Brand:
- XP Power
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 43.2 → 52.8 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 200mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP | |
| Isolation Voltage | 1kV dc | |
| Length | 19.5mm | |
| Depth | 10mm | |
| Width | 6mm | |
| Series | IQ | |
| Load Regulation | Maximum of 4% | |
| Maximum Temperature | +85°C | |
| Efficiency | 78% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 5V dc | ||
Input Voltage Range 43.2 → 52.8 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 200mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP | ||
Isolation Voltage 1kV dc | ||
Length 19.5mm | ||
Depth 10mm | ||
Width 6mm | ||
Series IQ | ||
Load Regulation Maximum of 4% | ||
Maximum Temperature +85°C | ||
Efficiency 78% | ||
Minimum Temperature -40°C | ||
