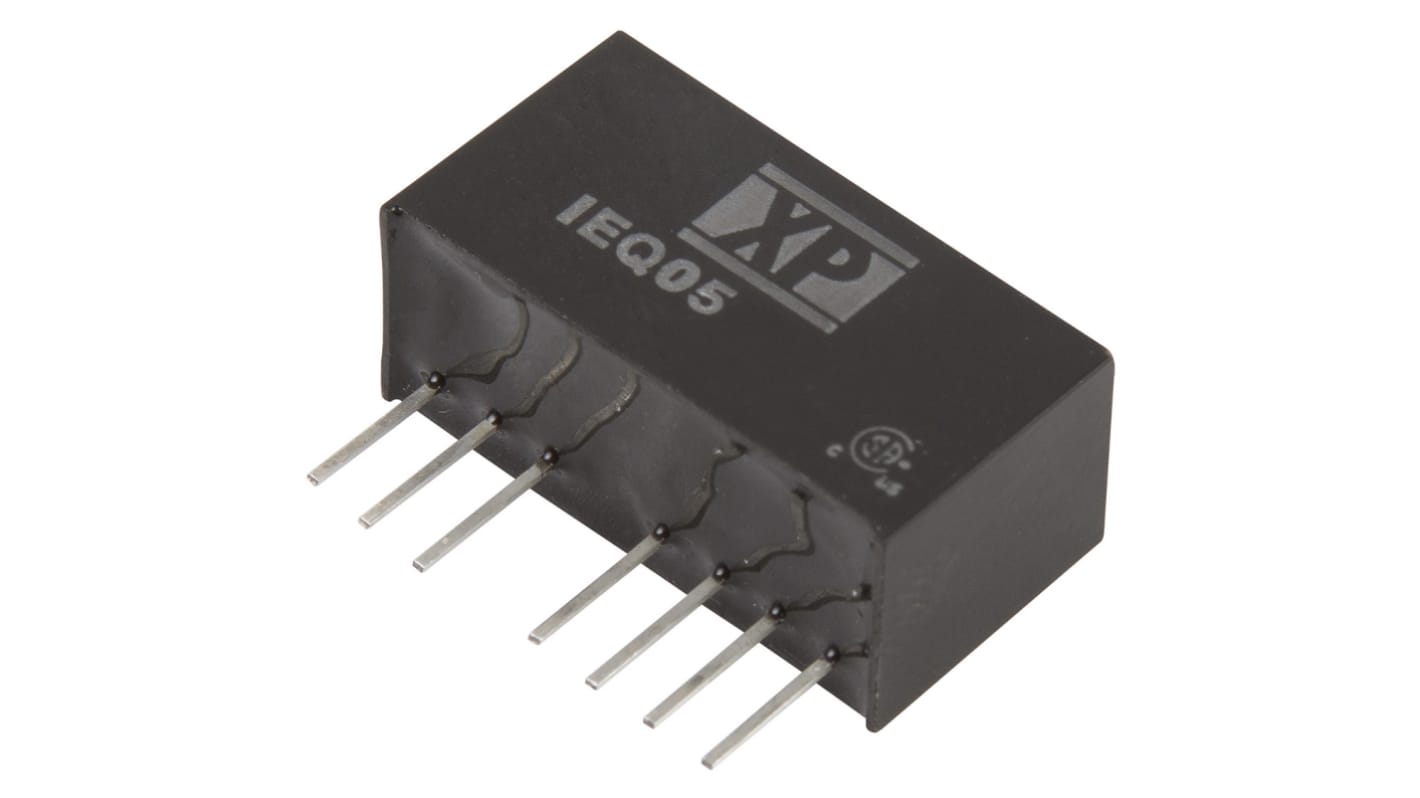

XP Power IEQ DC-DC Converter, 3.3V dc/ 1A Output, 4.5 → 18 V dc Input, 5W, Through Hole, +90°C Max Temp -40°C

RS Stock No.:: 161-8961
Mfr. Part No.:: IEQ0512S3V3
Brand:: XP Power

XP Power IEQ DC-DC Converter, 3.3V dc/ 1A Output, 4.5 → 18 V dc Input, 5W, Through Hole, +90°C Max Temp -40°C

Bulk discount available

Subtotal (1 tube of 10 units)**

£202.00

(exc. VAT)

£242.40

(inc. VAT)

Available to back order for despatch 12/11/2025*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Tube(s)	Per Tube	Per unit**
1 - 4	£202.00	£20.20
5 - 9	£195.94	£19.594
10 - 24	£189.88	£18.988
25 - 49	£183.82	£18.382
50 +	£177.76	£17.776

**price indicative

RS Stock No.:: 161-8961
Mfr. Part No.:: IEQ0512S3V3
Brand:: XP Power

Datasheet

Attribute	Value
Output Voltage	3.3V dc
Input Voltage Range	4.5 → 18 V dc
Power Rating	5W
Input Voltage Nominal	12 V dc
Output Current	1A
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	SIP
Isolation Voltage	1.5kV dc
Length	21.8mm
Depth	11.2mm
Width	9.3mm
Series	IEQ
Load Regulation	±1%
Standards Met	CB, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, IEC 60950-1, MIL-HDBK-217F, UL, UL 94 V-0, UL/cUL 60950-1
Maximum Temperature	+90°C
Efficiency	76%
Minimum Temperature	-40°C

XP Power IEQ DC-DC Converter, 3.3V dc/ 1A Output, 4.5 → 18 V dc Input, 5W, Through Hole, +90°C Max Temp -40°C

FREE delivery for orders over £50.00

XP Power - IEQ05 Series of Isolated DC-DC Converters
