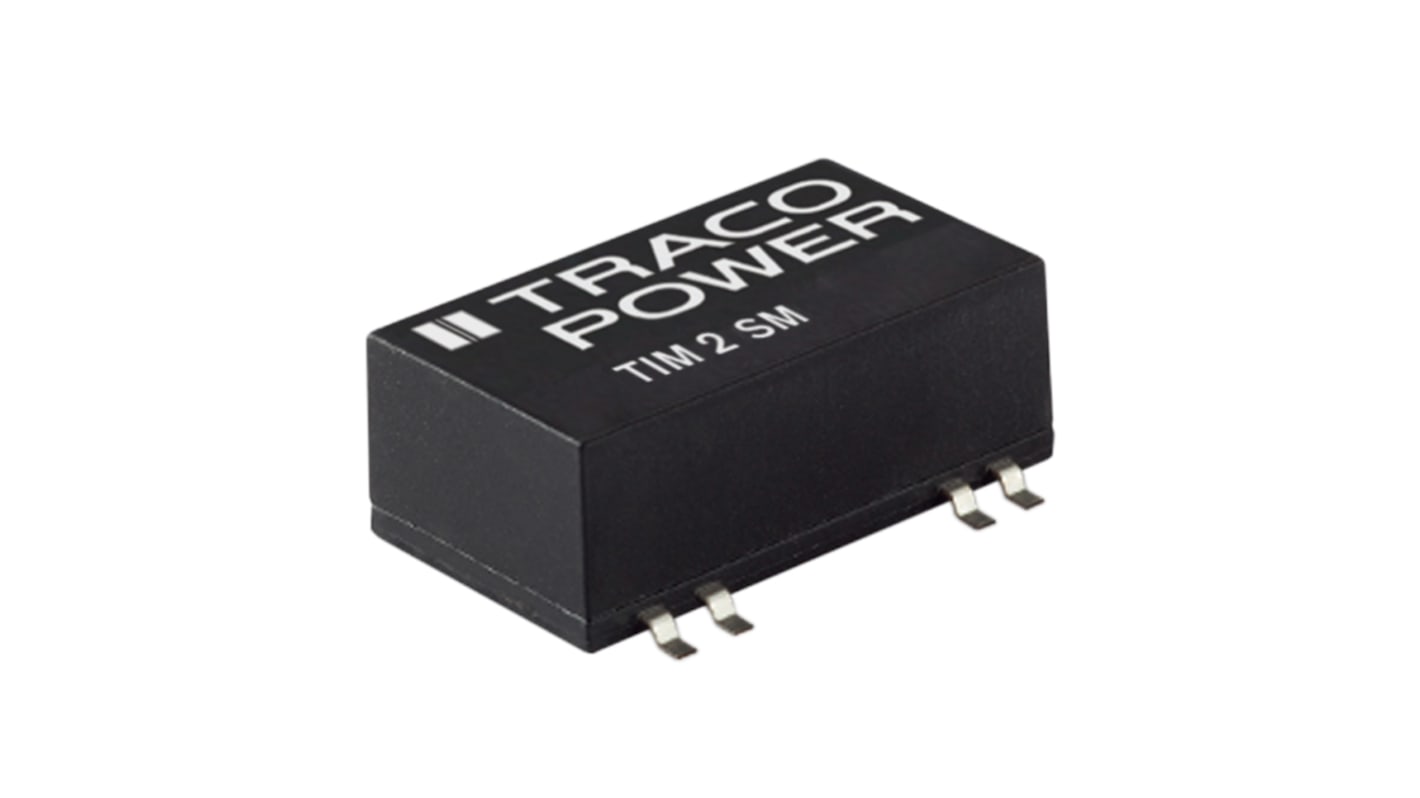

TRACOPOWER TIM 2 DC-DC Converter, 24V dc/ 83mA Output, 9 → 18 V dc Input, 2W, Surface Mount, +105°C Max Temp

RS Stock No.:: 152-6572
Mfr. Part No.:: TIM 2-1215SM
Brand:: TRACOPOWER

Technical Reference (4)

TRACOPOWER TIM 2 DC-DC Converter, 24V dc/ 83mA Output, 9 → 18 V dc Input, 2W, Surface Mount, +105°C Max Temp

View this category

Available to back order for despatch 02/12/2024

Price 1 Tube of 10

£247.94

(exc. VAT)

£297.53

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 - 4	£247.94	£24.794
5 - 9	£240.50	£24.05
10 - 24	£233.06	£23.306
25 - 49	£223.15	£22.315
50 +	£213.23	£21.323

*price indicative

RS Stock No.:: 152-6572
Mfr. Part No.:: TIM 2-1215SM
Brand:: TRACOPOWER

COO (Country of Origin):: TW

Attribute	Value
Output Voltage	24V dc
Input Voltage Range	9 → 18 V dc
Power Rating	2W
Input Voltage Nominal	12 V dc
Output Current	83mA
Mounting Type	Surface Mount
Isolated	Yes
Number of Outputs	1
Package	SMD 16
Isolation Voltage	5kV ac
Depth	10.5mm
Length	24.3mm
Width	14.4mm
Series	TIM 2
Load Regulation	0.01
Maximum Temperature	+105°C
Efficiency	82%
Medical Approved	Yes
Minimum Temperature	-40°C
Standards Met	AAMI/ANSI ES 60601-1, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC/EN 60601-1, MIL-STD-810F

TRACOPOWER TIM 2 DC-DC Converter, 24V dc/ 83mA Output, 9 → 18 V dc Input, 2W, Surface Mount, +105°C Max Temp

Technical Reference (4)
