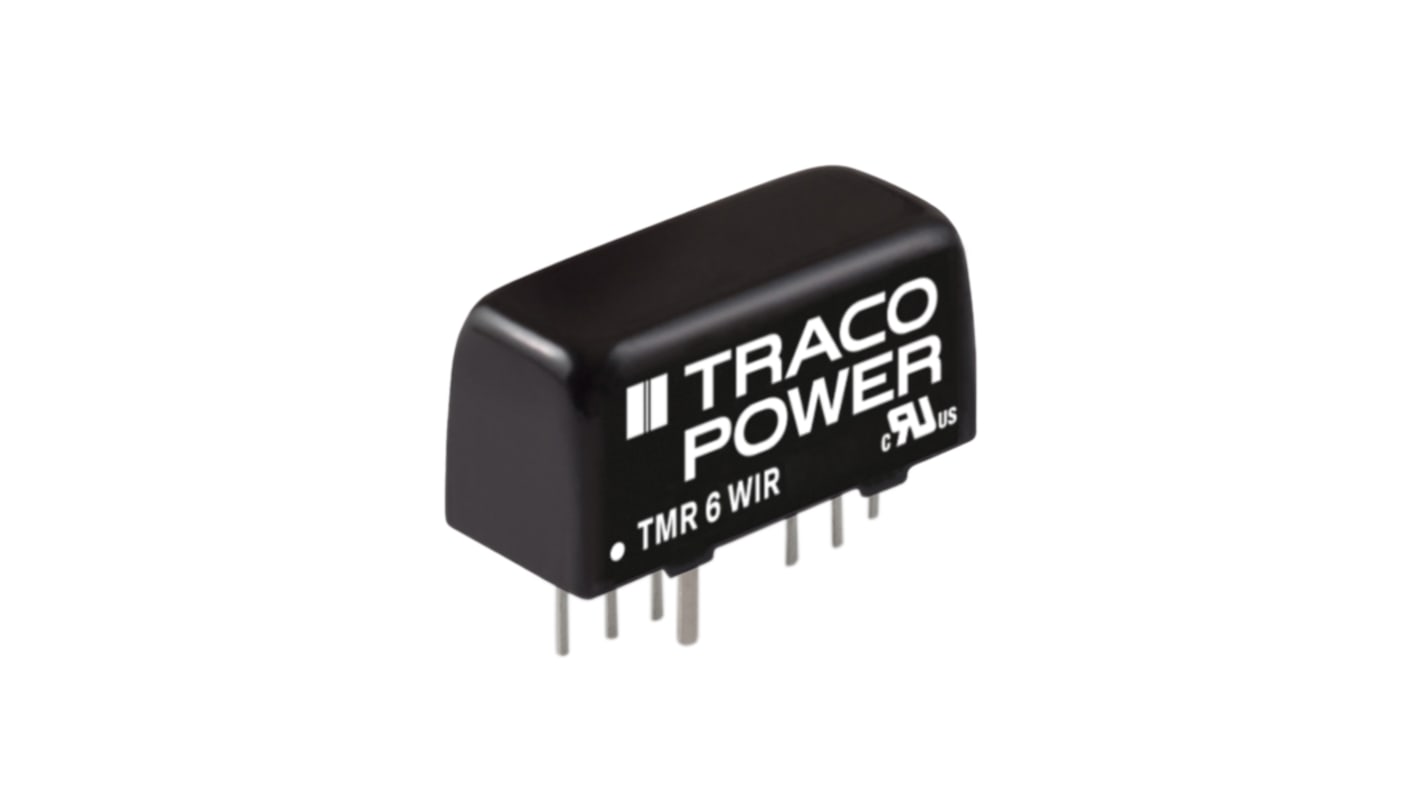

Name: TRACOPOWER TMR 6WIR DC-DC Converter, 12V dc/ 500mA Output, 9 → 36 V dc Input, 6W, Through Hole, +80°C Max Temp
Brand: TRACOPOWER
SKU: 151-2086
Price: 316.37 GBP
Availability: BackOrder

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TRACOPOWER
	Output Voltage	12V dc
	Input Voltage Range	9 → 36 V dc
	Power Rating	6W
	Input Voltage Nominal	24 V dc
	Output Current	500mA
	Mounting Type	Through Hole
	Isolated	Yes
	Number of Outputs	1
	Package	SIP 8
	Isolation Voltage	1.6kV dc
	Depth	11.2mm
	Width	9.1mm
	Length	21.8mm
	Series	TMR 6WIR
	Railway Approved	Yes
	Load Regulation	0.005
	Maximum Temperature	+80°C
	Efficiency	87%
	Minimum Temperature	-40°C
	Standards Met	cULus Listed, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, MIL-STD-810F, UL 94 V-0, UL/cUL 60950-1

	Select all
	Brand TRACOPOWER
	Output Voltage 12V dc
	Input Voltage Range 9 → 36 V dc
	Power Rating 6W
	Input Voltage Nominal 24 V dc
	Output Current 500mA
	Mounting Type Through Hole
	Isolated Yes
	Number of Outputs 1
	Package SIP 8
	Isolation Voltage 1.6kV dc
	Depth 11.2mm
	Width 9.1mm
	Length 21.8mm
	Series TMR 6WIR
	Railway Approved Yes
	Load Regulation 0.005
	Maximum Temperature +80°C
	Efficiency 87%
	Minimum Temperature -40°C
	Standards Met cULus Listed, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, MIL-STD-810F, UL 94 V-0, UL/cUL 60950-1

COO (Country of Origin):: TW

TRACOPOWER TMR 6WIR Series DC-DC Converter, 0.87 Efficiency, 1.6kV DC Isolation Voltage - TMR 6-2412WIR

This isolated DC-DC converter provides a stable 12V output with an input voltage range of 9 to 36V DC. With EN 50155 railway approval, it is suitable for rail applications where consistent power conversion is necessary. Its compact SIP 8 package allows for easy integration into various electronic setups, making it a preferred choice for sectors needing high efficiency and robust performance.

Features & Benefits

• Compact SIP-8 metal case design optimises space
• High efficiency of 87% reduces energy loss
• Built-in short circuit protection improves safety
• Railway approved for dependable operation in transport systems

Applications

• Power supply for railway systems
• Medical equipment requiring stable power
• Communications and telecommunication devices

What is the recommended input current for this device?

The input current at no load for models operating at 24V is typically 6mA.

How does this device ensure safety during operation?

It includes short circuit protection and current limitation for enhanced safety.

Is there a need for a minimum load for proper function?

No, this product does not require a minimum load for operation.
