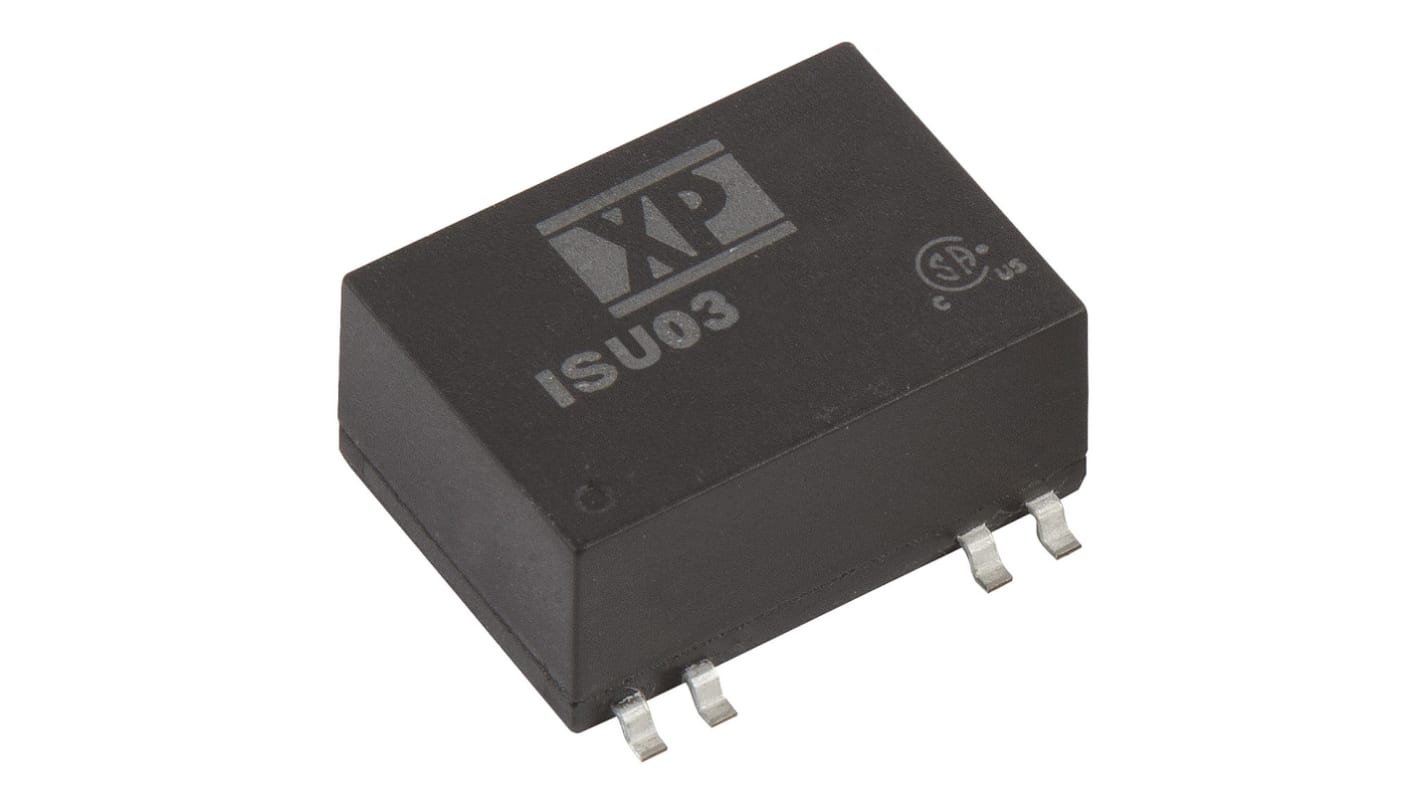

XP Power ISU03 DC-DC Converter, ±12V dc/ ±125mA Output, 18 → 75 V dc Input, 3W, Surface Mount, +95°C Max Temp
- RS Stock No.:
- 135-7938
- Mfr. Part No.:
- ISU0348D12
- Brand:
- XP Power
Bulk discount available
Subtotal (1 tube of 10 units)*
£194.31
(exc. VAT)
£233.17
(inc. VAT)
Stock information currently inaccessible
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £194.31 | £19.431 |
| 5 - 9 | £188.48 | £18.848 |
| 10 - 24 | £182.65 | £18.265 |
| 25 - 49 | £176.82 | £17.682 |
| 50 + | £170.99 | £17.099 |
*price indicative
- RS Stock No.:
- 135-7938
- Mfr. Part No.:
- ISU0348D12
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | ±12V dc | |
| Input Voltage Range | 18 → 75 V dc | |
| Power Rating | 3W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | ±125mA | |
| Mounting Type | Surface Mount | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | SMD | |
| Isolation Voltage | 1.5kV dc | |
| Depth | 8.7mm | |
| Length | 19mm | |
| Width | 17mm | |
| Series | ISU03 | |
| Load Regulation | ±1.0% | |
| Efficiency | 82% | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +95°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage ±12V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 3W | ||
Input Voltage Nominal 48 V dc | ||
Output Current ±125mA | ||
Mounting Type Surface Mount | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package SMD | ||
Isolation Voltage 1.5kV dc | ||
Depth 8.7mm | ||
Length 19mm | ||
Width 17mm | ||
Series ISU03 | ||
Load Regulation ±1.0% | ||
Efficiency 82% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +95°C | ||
- COO (Country of Origin):
- TW
XP Power - ISU03 Series of Isolated DC-DC Converters
The ISU03 Series from XP Power offers a highly reliable range of regulated single and dual output, 3 W, isolated DC-DC converters. The series has been designed in a compact SMD package, features a wide 4:1 input range and meets ITE safety approvals. These compact DC-DC converters also attribute 1500 VDC in isolation, a wide -40 °C to +95 °C operating temperature range and remote On/Off. All ISU03 converters come with a 3-Year Warranty. Optional water washable versions are available.
Features and Benefits
• Regulated single and dual outputs
• Wide 4:1 input range
• ITE Safety Approvals
• Remote On/Off
• Compact SMD Package
• 3-Year Warranty
• Optional water washable versions
• Wide 4:1 input range
• ITE Safety Approvals
• Remote On/Off
• Compact SMD Package
• 3-Year Warranty
• Optional water washable versions
XP Power - Isolated DC-DC Converters
