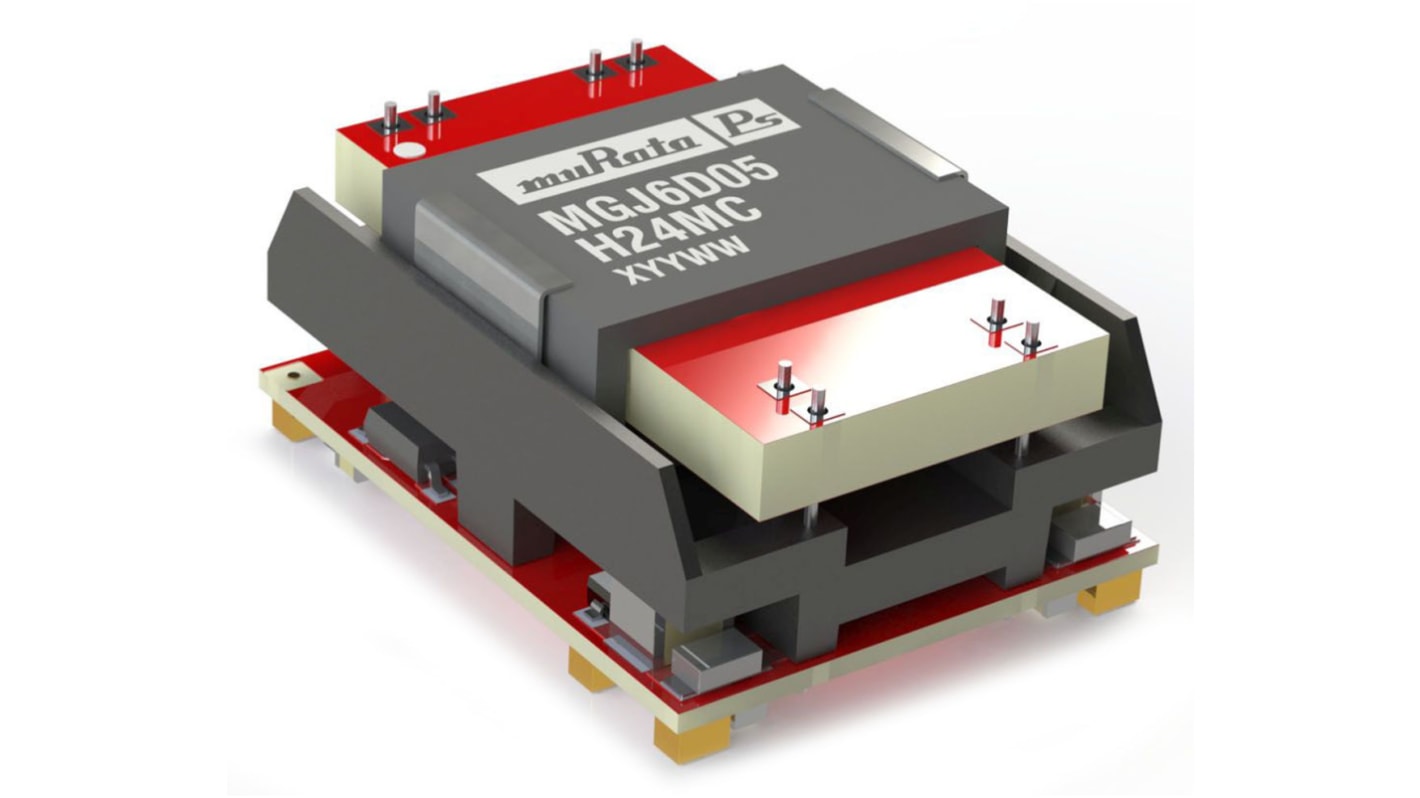

Murata Power Solutions MGJ6 DC-DC Converter, ±15V dc/ 240mA Output, 4.5 → 9 V dc Input, 2.4W, Surface Mount,
- RS Stock No.:
- 135-5955
- Mfr. Part No.:
- MGJ6D051510LMC-R7
- Brand:
- Murata Power Solutions
Available to back order for despatch when stock is available
Added
Price Each
£13.71
(exc. VAT)
£16.45
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £13.71 |
| 5 - 9 | £13.30 |
| 10 - 24 | £12.89 |
| 25 - 49 | £12.48 |
| 50 + | £12.06 |
- RS Stock No.:
- 135-5955
- Mfr. Part No.:
- MGJ6D051510LMC-R7
- Brand:
- Murata Power Solutions
Technical Reference
Legislation and Compliance
Product Details
Murata MGJ Series Isolated DC-DC Converter
Murata MGJ Series of isolated DC-DC converters offer an ideal solution for "high side" & "low side" gate drive circuits for IGBTs & MOSFETS in bridge circuits. The MGJ Series offers a choice of asymmetric output voltages and enables your application to optimise drive levels for the best system efficiency.
The MGJ Series has been designed with high isolation requirements, so can be used within motor drives & inverters and offers long service & reliability.
The MGJ Series has been designed with high isolation requirements, so can be used within motor drives & inverters and offers long service & reliability.
Features and Benefits
Optimised bipolar output voltages for IGBT / MOSFET gate drives
Continuous barrier withstand voltage 3kVDC
Surface mount package
Ultra low coupling capacitance 15pF
5.7k V dc isolation test voltage
Continuous barrier withstand voltage 3kVDC
Surface mount package
Ultra low coupling capacitance 15pF
5.7k V dc isolation test voltage
Murata Power Solutions - 0.75W to 15W
Specifications
Attribute | Value |
|---|---|
| Output Voltage | ±15V dc |
| Input Voltage Range | 4.5 → 9 V dc |
| Power Rating | 2.4 W, 3.6W |
| Input Voltage Nominal | 5 V dc |
| Output Current | 240mA |
| Mounting Type | Surface Mount |
| Isolated | Yes |
| Number of Outputs | 2 |
| Isolation Voltage | 5.7kV dc |
| Width | 39.98mm |
| Depth | 9.35mm |
| Length | 27.81mm |
| Series | MGJ6 |
| Load Regulation | 0.1 |
| Maximum Temperature | +105°C |
| Standards Met | ANSI/AAMI ES60601-1, cULus Recognised, UL 60950 |
| Minimum Temperature | -40°C |
